0805

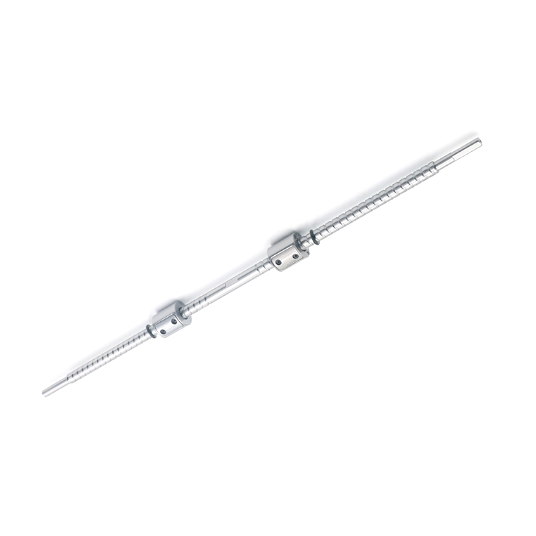

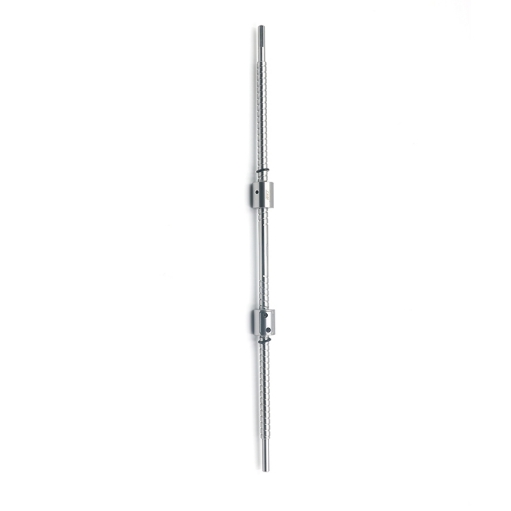

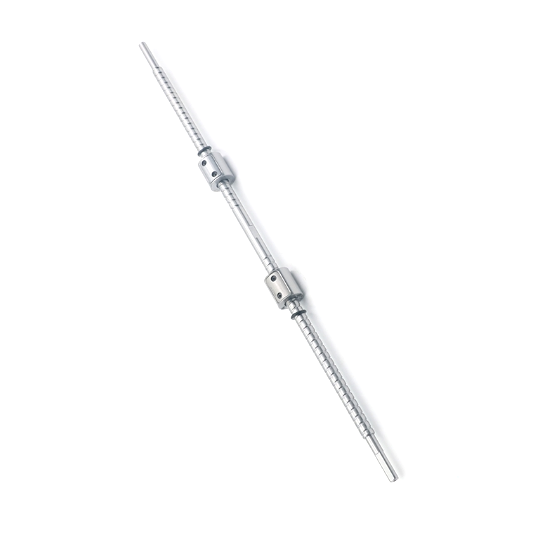

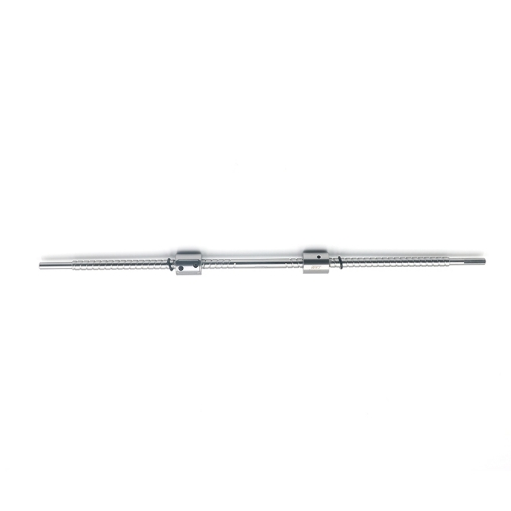

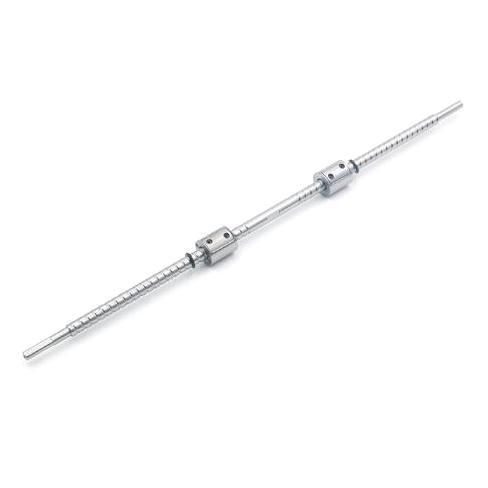

0805 Diameter 8mm Lead 5mm Bi-directional Ball Screw
The bi-directional ball screw diameter is 8mm,lead and pitch 5mm,this ball screw adopts grinding processing technology and is available in C3 and C5 accuracy grades.
Diamter | 8mm |
Lead | 5mm |
| Pitch | 5mm |
| Accuracy grade | C3/C5 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/stainless steel |
Popular surface coatings | Nickel plated/Black chorme plated/Molybdenum disulfide/DLC coating. |
Contact our sales to customize your bi-directional ball screw!
