ACME screws are a specialized type of trapezoidal thread screw,distinguished by their 29° thread angle and inch-based dimensions.They are typically defined by two key parameters:Shaft diameter and Threads per inch (TPI).ACME screw threads are optimized for imperial systems and excel in applications requiring robust load handling and self-locking capabilities.
We are professional ACME screw manufacturers.We build high-performance acme threaded rod critical for demanding applications like industrial automation,heavy machinery,and precision lifting.

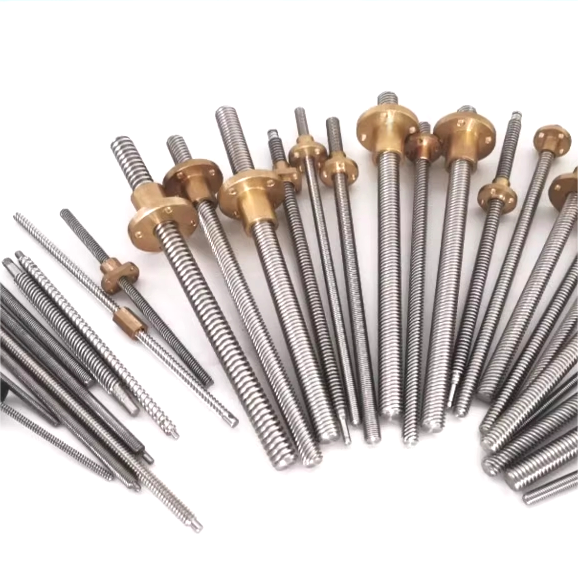

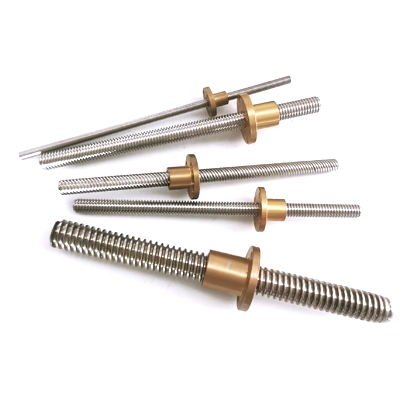

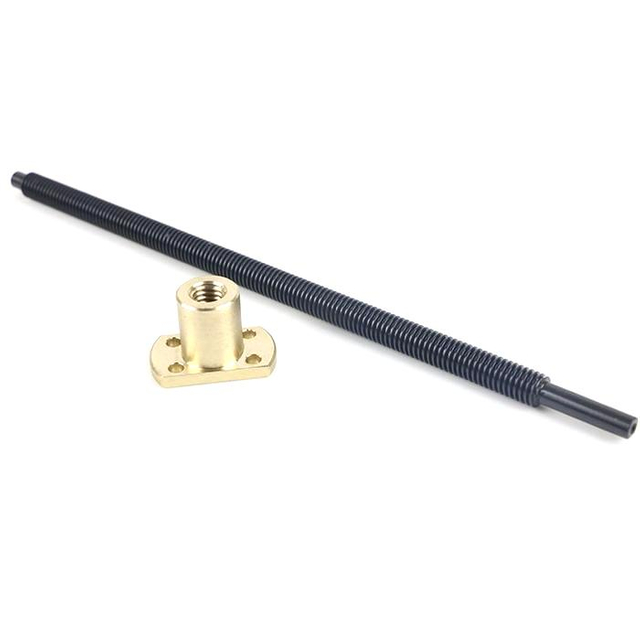

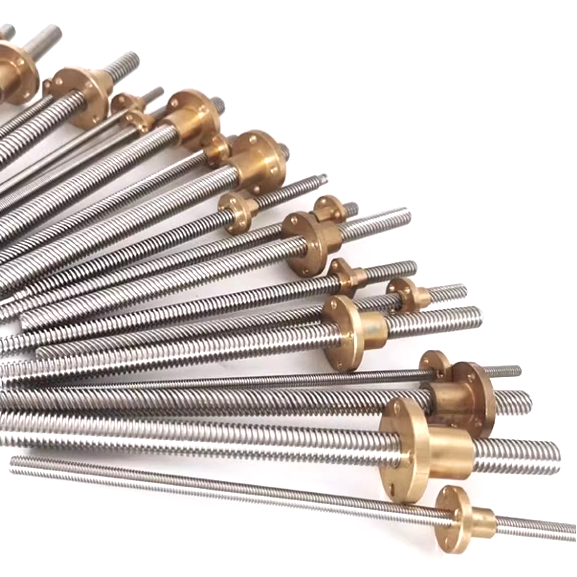

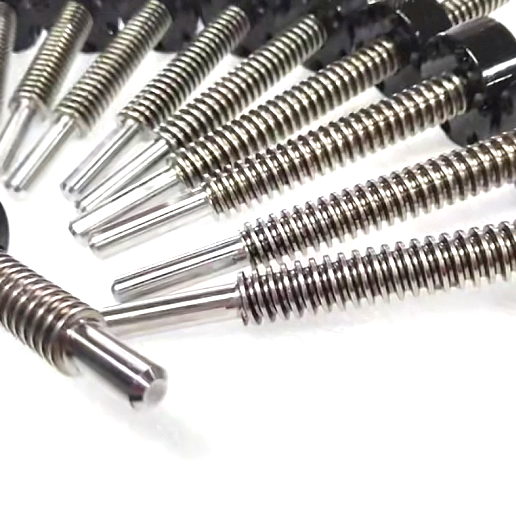

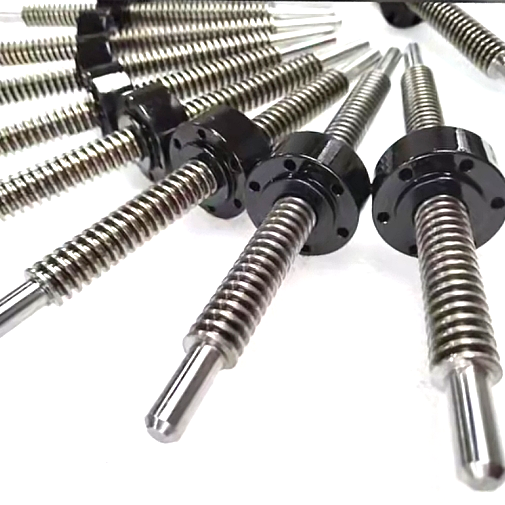

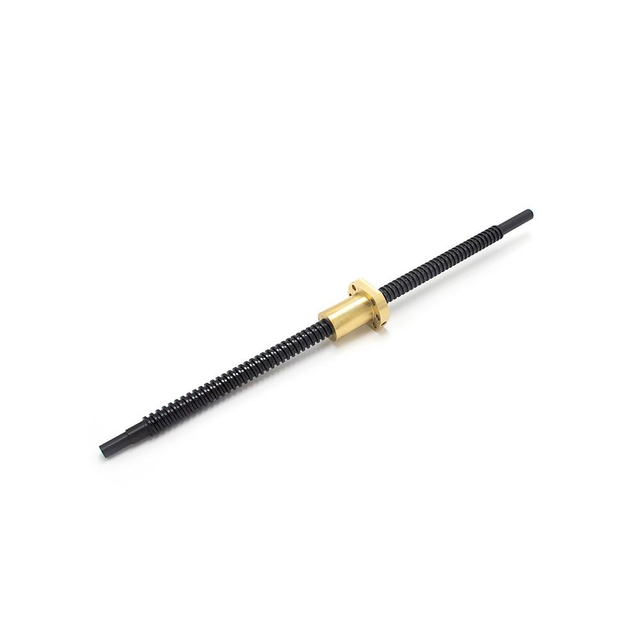

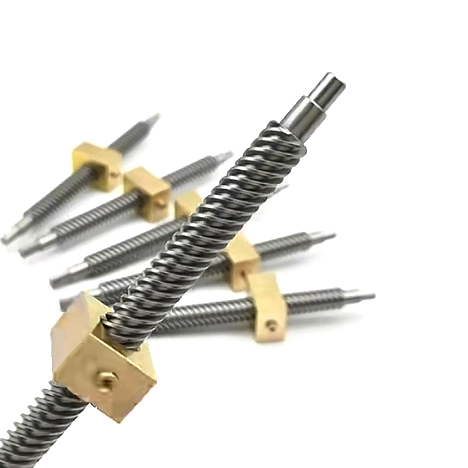

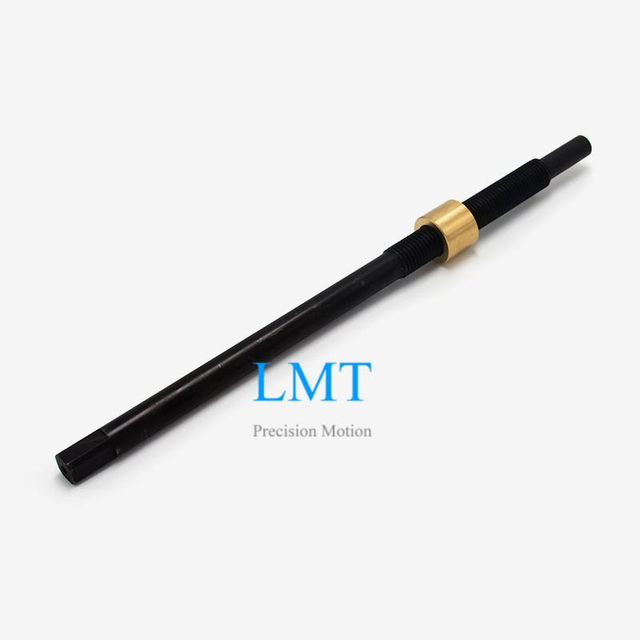

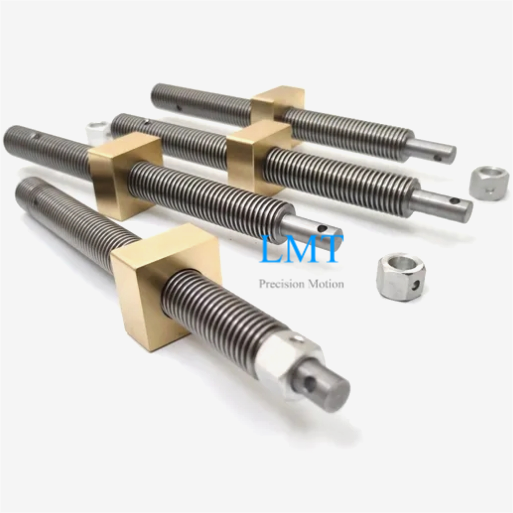

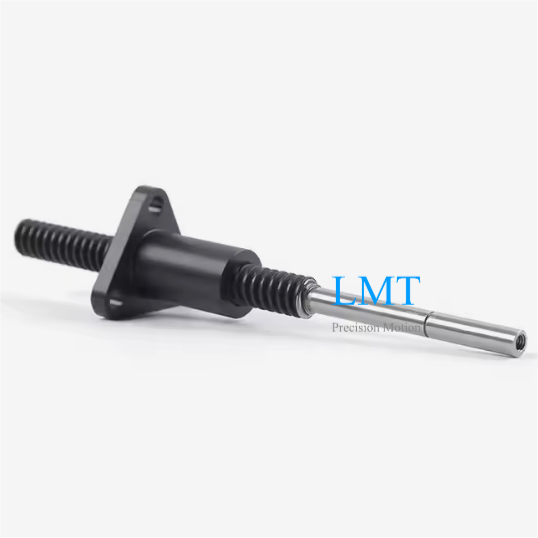

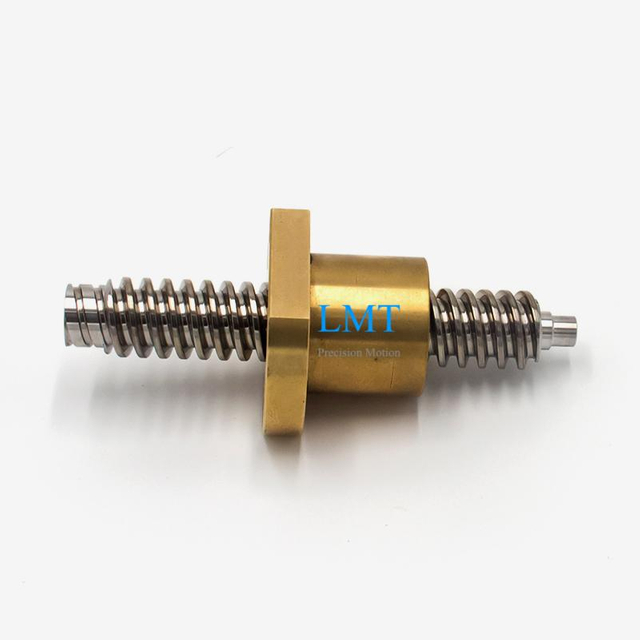

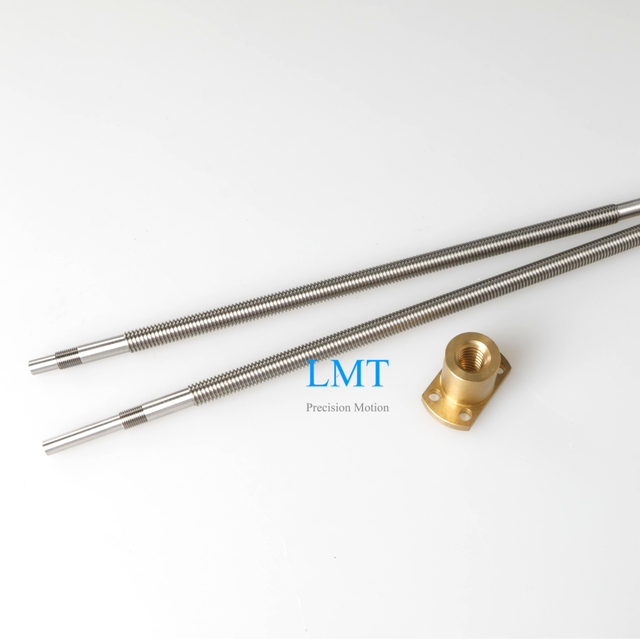

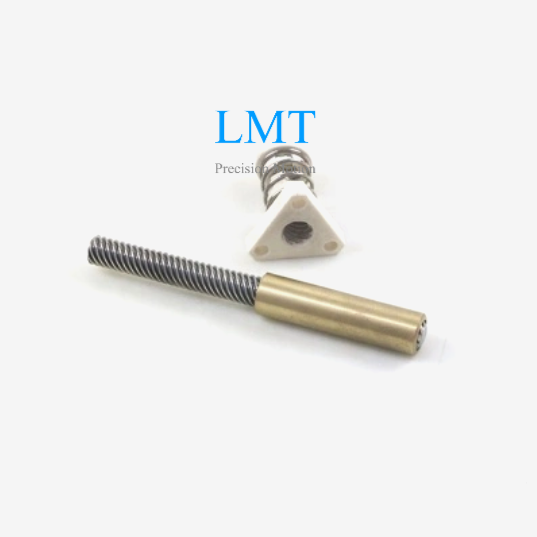

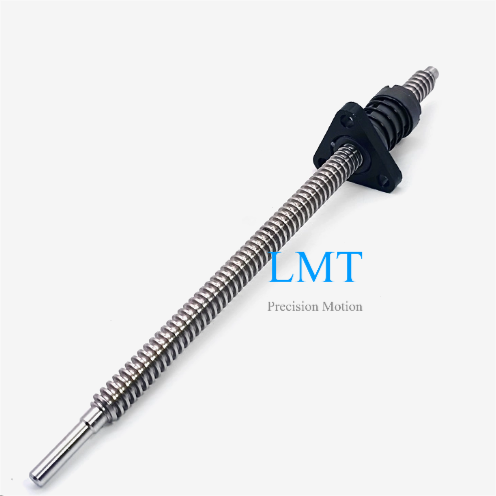

ACME Threaded Rod and Nut Information
Diameter | 3/16''~3/2'' |
Screw shaft end machining and length | Produced according to your requirements or drawings |
Nut shape and dimension | Customized production according to your needs |
Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
Thread Direction | RH/LH/RL |
Popular screw materials | S45C/SS303/SS304/SS316 |
Popular nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
ACME Screws Key Features & Benefits
Durability: Hardened stainless steel resist wear and corrosion.
High Load Capacity: Ideal for static or intermittent loads in industrial settings.
Cost-Effective: Lower upfront and maintenance costs compared to ball or roller screws.
Self-Locking Design: Holds position without external brakes,perfect for vertical applications.
Let's Optimize Your Linear System Today!
Custom Solutions: Tailor thread profiles,shaft end,nut dimension,materials,and coatings to your needs.
Quick reponse,fast Delivery: Reply within 2 hours,production within 15 days.
Expert Support: Our engineers will help you optimize and complete the final design throughout the process.
Send Your Drawings for a free quote.
No Design Yet? Our team can engineer a solution from scratch.
Contact Us Now – Experience precision,reliability, and cost-efficiency with our ACME lead screws.
