A trapezoidal screw is a power screw with a trapezoidal-shaped thread profile,characterized by a 30° flank angle.Unlike ball screws (which use rolling elements),they rely on sliding contact between the screw and nut.

Trapezoidal Leadscrew Information

When To Choose Trapezoidal Screws?

Low to Moderate Speed Applications: Trapezoidal screw rod generate more friction than ball screws,making them unsuitable for high-speed or high-efficiency systems.

High Load Capacity: Their robust thread design handles heavy static or dynamic loads effectively.

Self-Locking Requirement: The friction between the leadscrew and nut prevents back-driving,making them ideal for: Vertical applications where gravity could cause unintended movement (e.g., hoists).Safety-critical systems needing position retention without power.

Budget Constraints: Trapezoidal screws are cheaper to manufacture and maintain than ball screws.Choose them if:Your project has tight cost limits.Long-term maintenance costs need to be minimized.

Harsh Environments: This trapezoidal thread screw perform better in dirty,dusty,or high-vibration settings where ball screws (with delicate rolling elements) might fail.

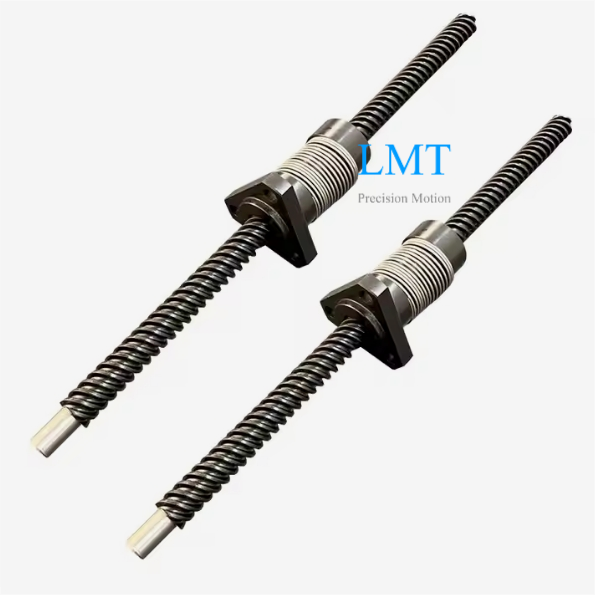

Low Accuracy requirement: Trapezoidal screws have more inherent backlash.The screw is Suitable for applications where ±0.1 mm precision is acceptable.Use anti-backlash nuts if higher precision is needed.

Steps To Custom Your Trapezoidal Screw:

Send Your Requirements: Share your lead screw and nut drawing,CAD files,or specifications requirement.

Get a Tailored Quote: We'll analyze your needs and provide a competitive price within 2 hours.

Production & Delivery: Once your quotation is approved,our engineering team will swiftly create detailed production drawings for your final review and confirmation.Upon your approval,we will immediately initiate production scheduling,ensuring your order is manufactured to exact specifications and delivered within 15days.

Attach your drawings, and let's build the perfect trapezoidal lead screw for your project!
