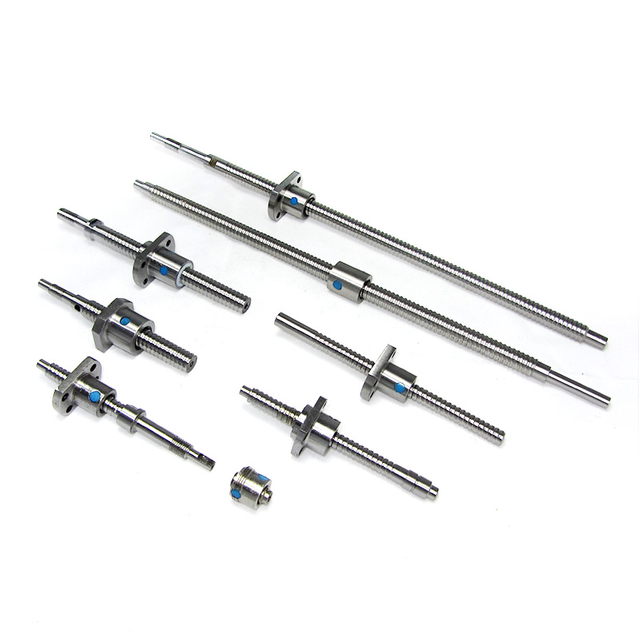

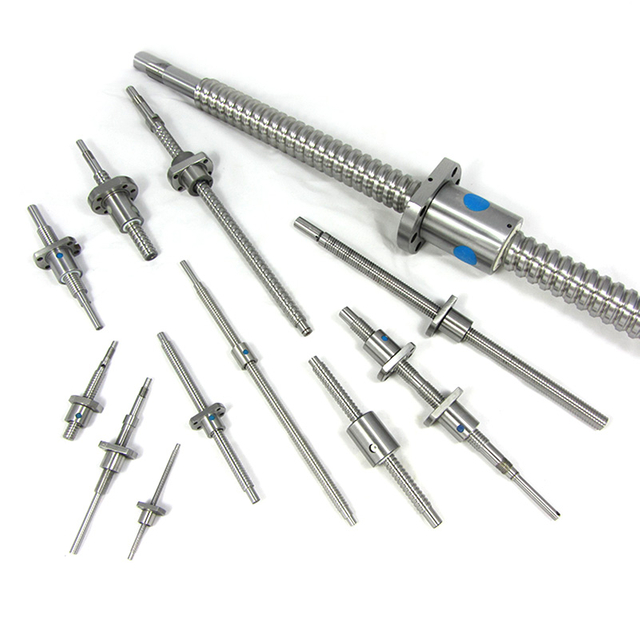

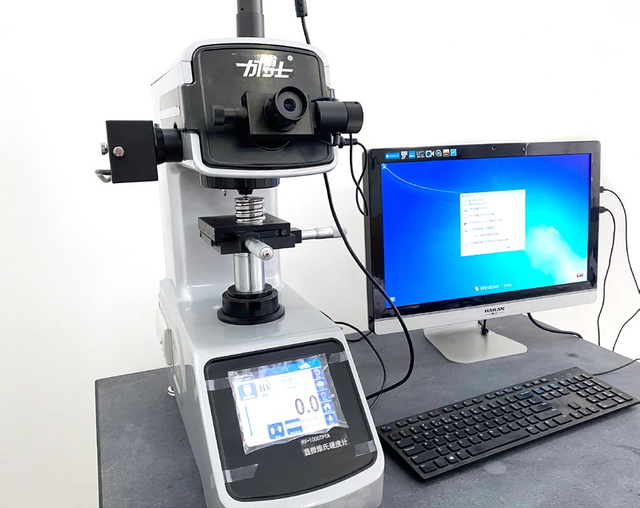

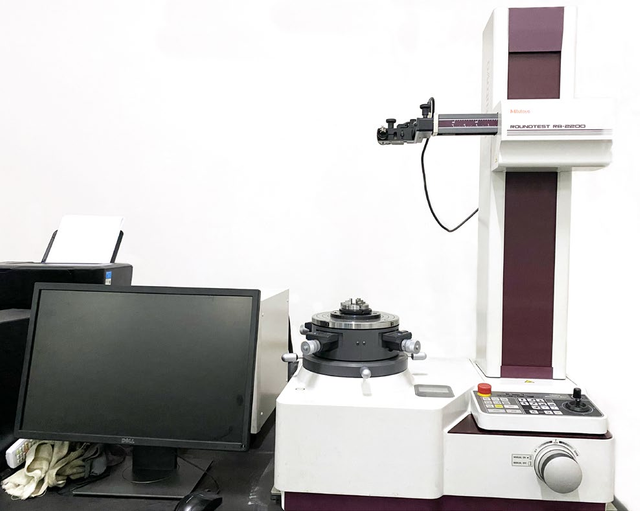

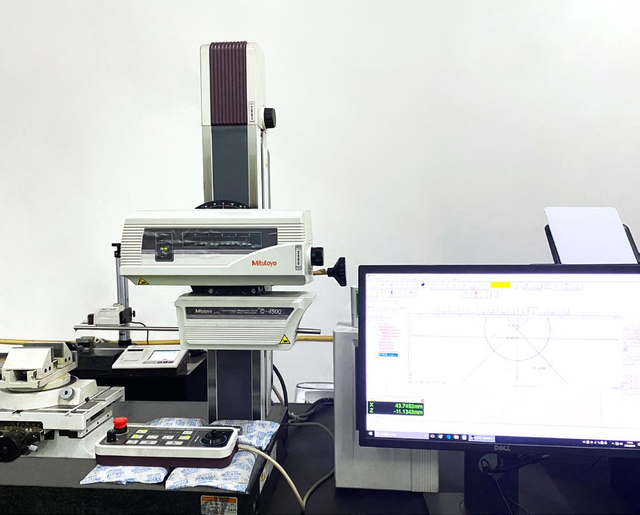

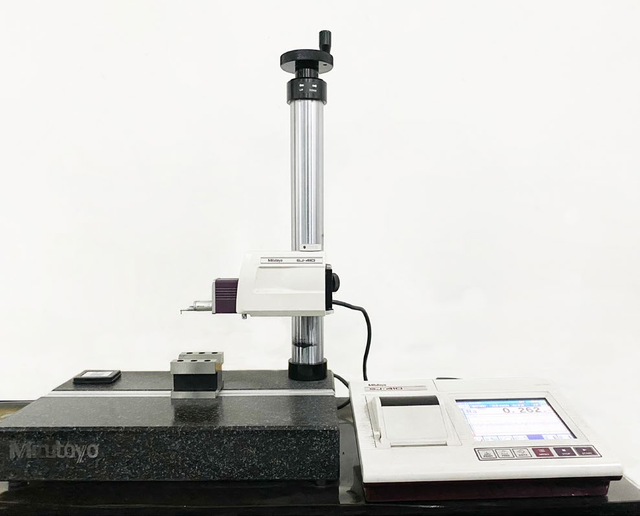

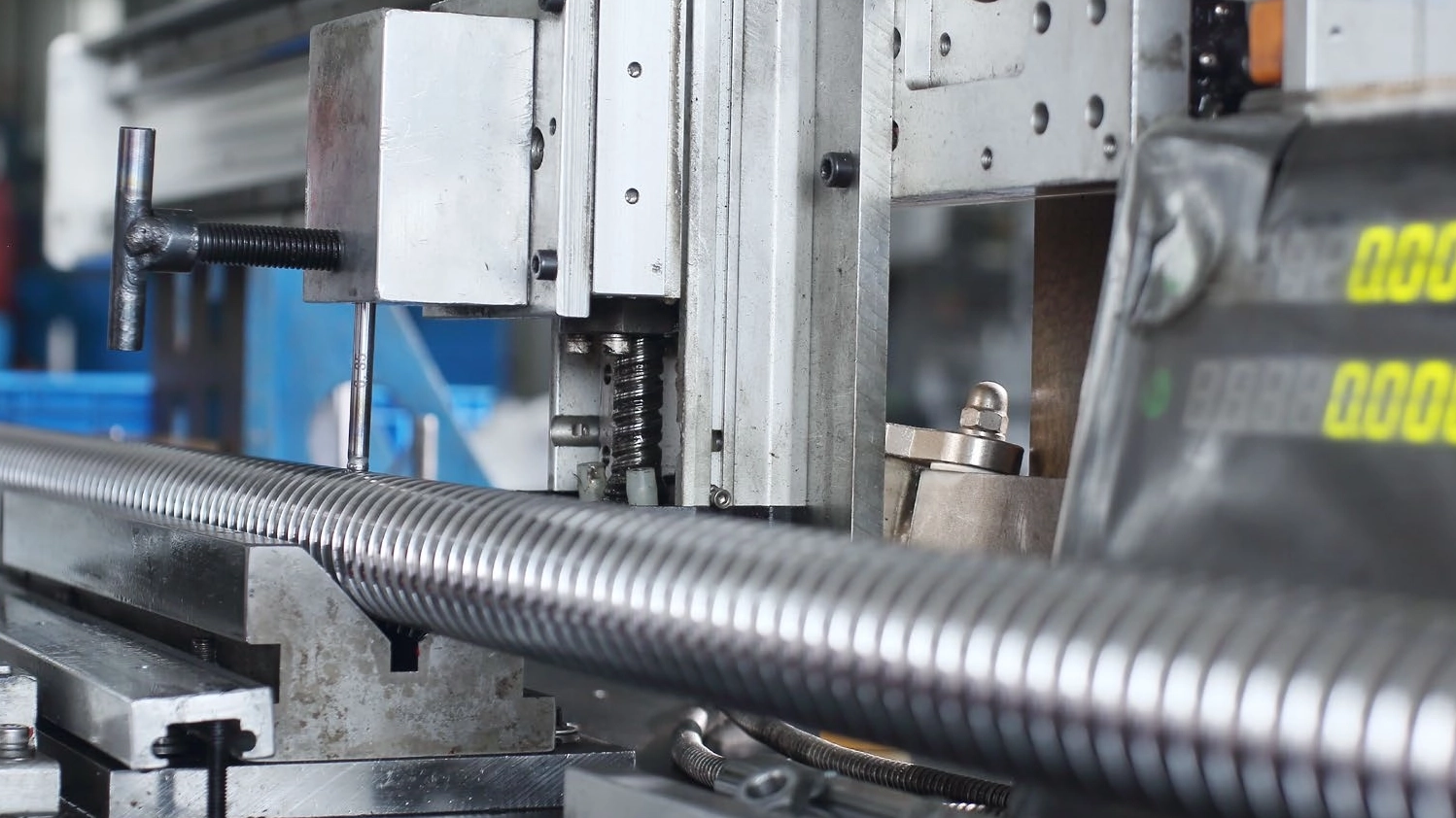

LMT specializes in manufacturing standard and custom ball screw assembly,including micro ground ball screw and smaller rolled ball screw.With self-developed core equipment (CNC thread grinding machines and precision testing instruments),we control the entire vertical production chain from raw materials to finished products.The innovative LMT positioning technology ensures superior accuracy, while strict process controls establish us as a trusted solution provider in industrial linear motion systems.
Diameter ranging from 3mm to 16mm High rigidity,smooth and near-silent operation Precision machined for C0 C1 C3 C5 C7 accuracy grade High efficiency above 96% and low power consumption Fast delivery : rolled ballscrew lead time within 7 days,ground ballscrew lead time 25 days.
Precautions on Handling Ball Screw Assembly
Removing the ball nut from the screw shaft causes the ball to fall out rendering the ball screw unusable.Do not disassemble ballscrews.It may attract dusts and degrade assembly accuracy. Use dedicated temporary shafts when removing ballnuts.
Do not give an external impact to a screw shaft outer diameter,thread and recirculation parts. It may cause recirculation failure and a malfunction.
Do not tilt ball screw assembly since a ball screw nut may spin off from a screw shaft due to its own weight.Especially when using a ball screw vertically,place a fall-off prevention mechanism since a ball screw nut may spin off due to its own weight.
When inspecting the sliding, fix the nut and cause the shaft to rotate,or fix the shaft and cause the nut to rotate.

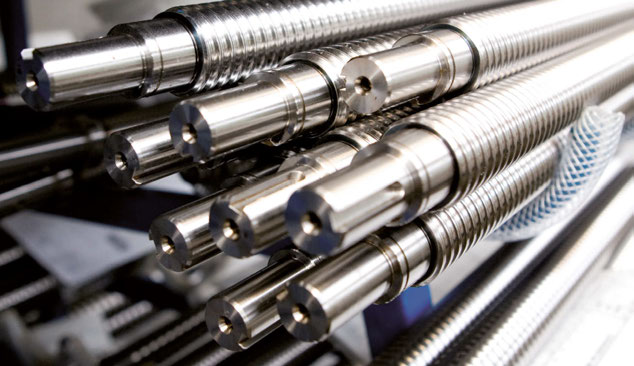

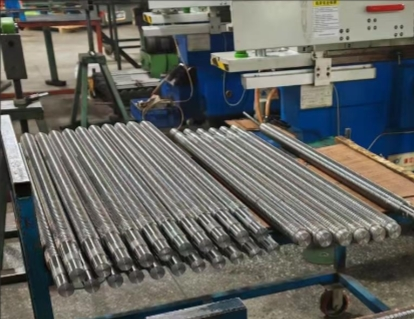

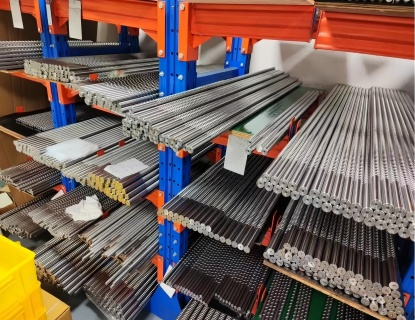

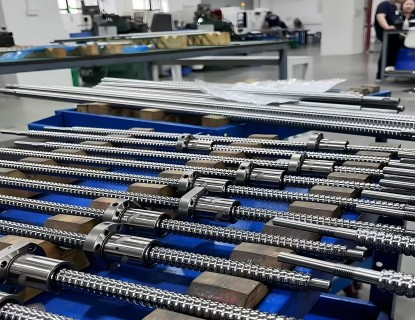

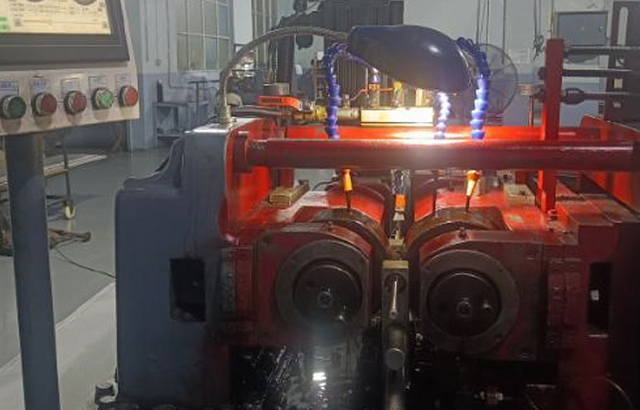

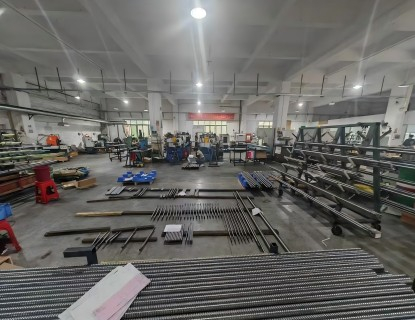

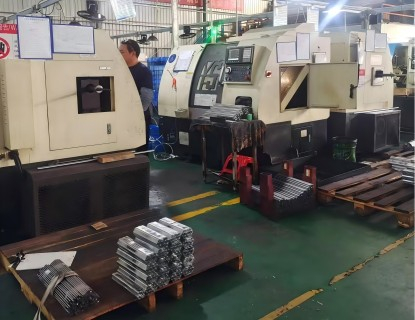

Ball Screw Factory
Custom Ball Screw Solutions For Your Specific Application
Please send the custom ball screw and ball nut specific drawing, We will send a quote within 2 hours!
