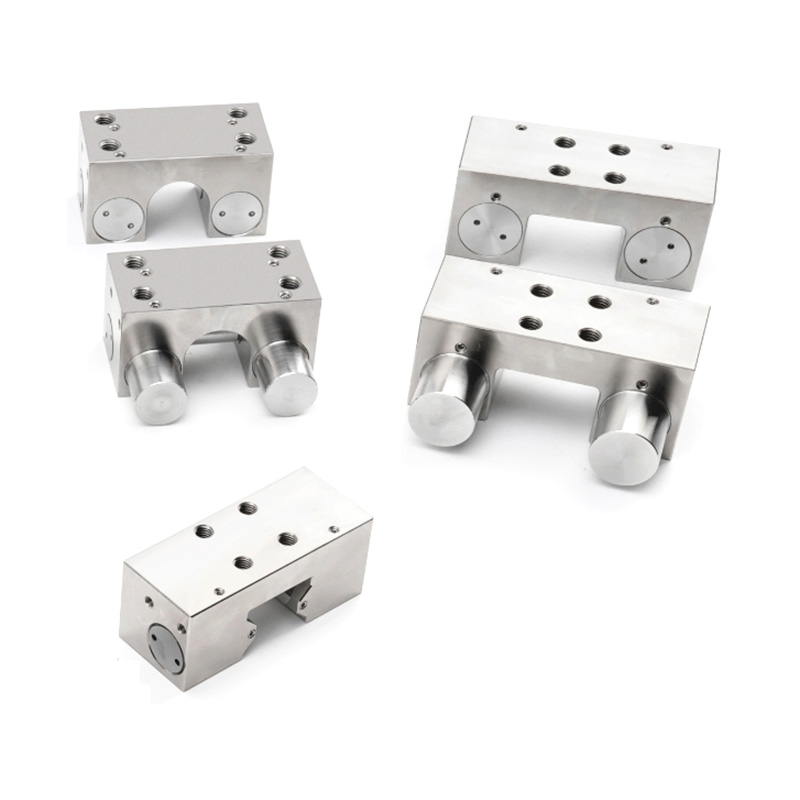

Clamping Elements
25%–50% Cost Savings
High-precision clamping solutions for linear guides and round shafts.
Full range of manual,pneumatic,hydraulic and electric types.
Reliable alternative to top global brands with fast lead time and custom service available.

As a leading chinese manufacturer and supplier specializing in clamping elements,LMT professionally produces clamps for linear guides,circular guides,and shaft guides.By adopting advanced technology from Germany and Japan,we have built a precision production line to mass-produce clamps and brakes.Committed to high reliability,fast delivery,and expert support,we provide top-quality products and services globally.

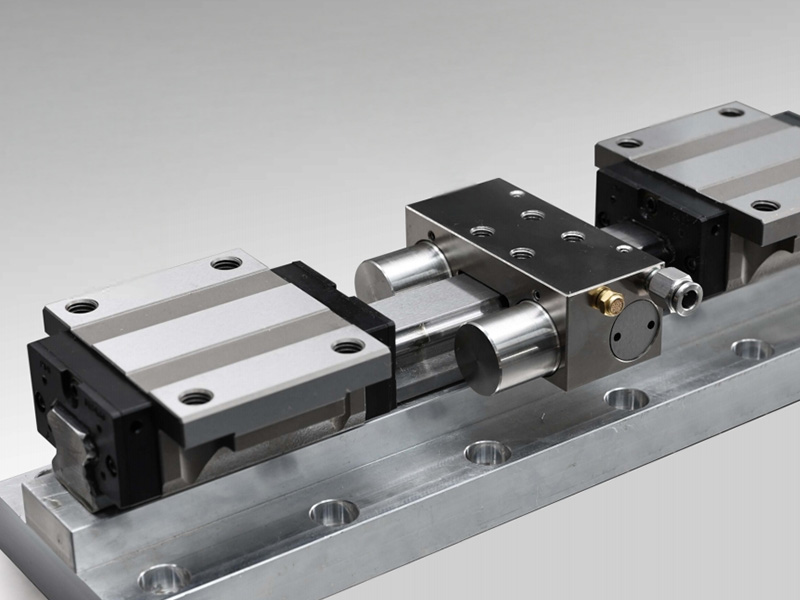

A clamp unit consists of a main body,actuating components,clamping components,and contact components.They work with linear guides and round shafts to lock worktables,position accurately,reduce vibration,and improve rigidity.The brake type also has the function of emergency braking.

Features of Clamping Element:
-Improve the rigidity of the device
Without changing the device structure,the clamper can achieve the fixed function of the table while reducing the vibration of the table,thereby improving production eficiency.
-Improve device safety
The brake type clamp has the function of emergency braking in case of power failure,preventing the structure from falling off and ensuring the safety of the device.
-Compact structure
The clamp can be fixed in the empty space below the workbench to reduce the impact on the running stroke and improve the structure compact construction.
-Lowcost,energy saving
The control methods are divided into pressure and hydraulic control,and centralized control can be achieved through multi way joints.

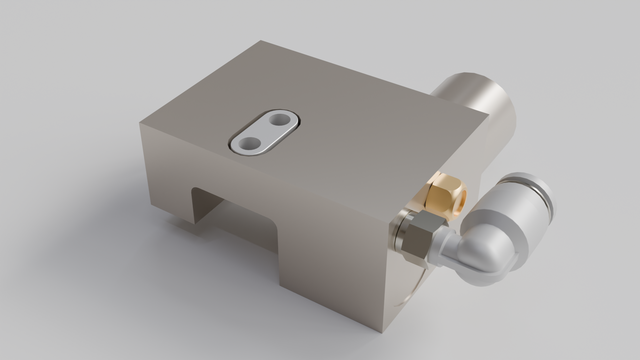

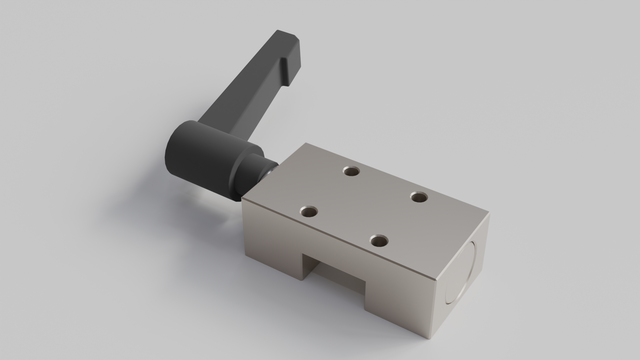

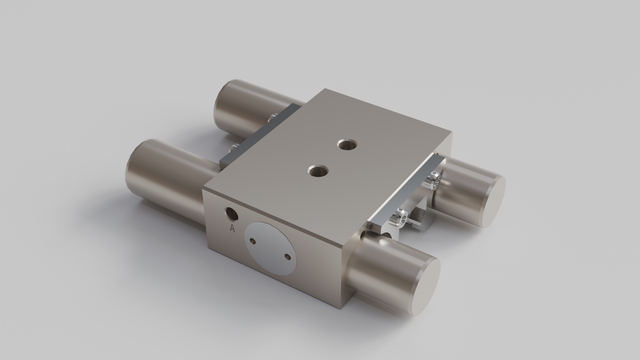

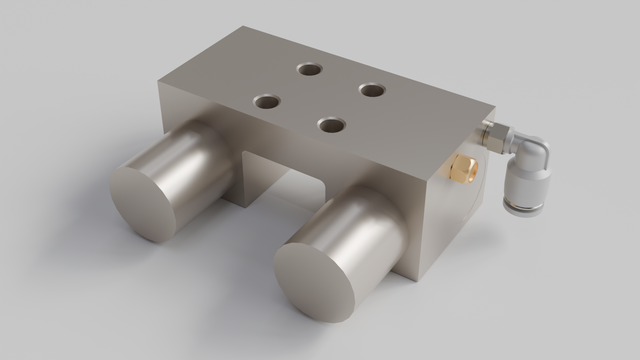

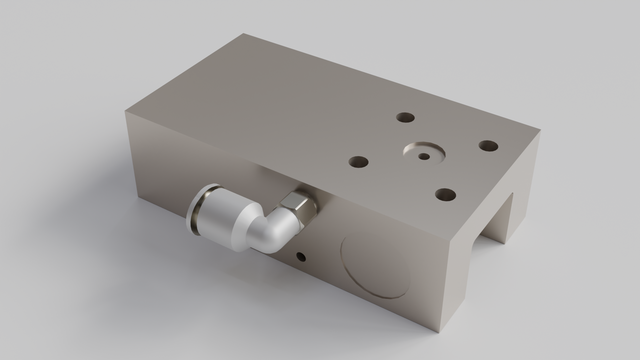

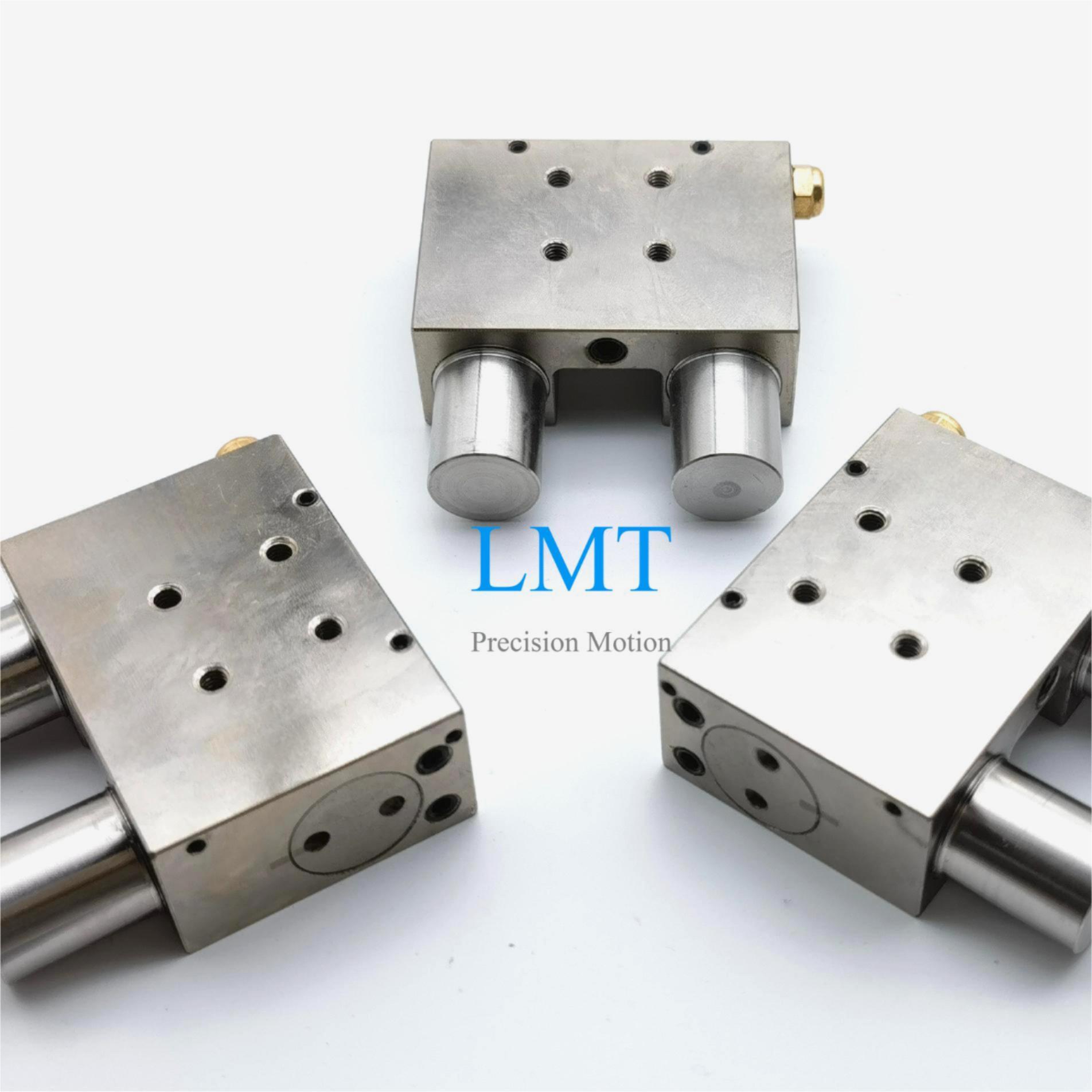

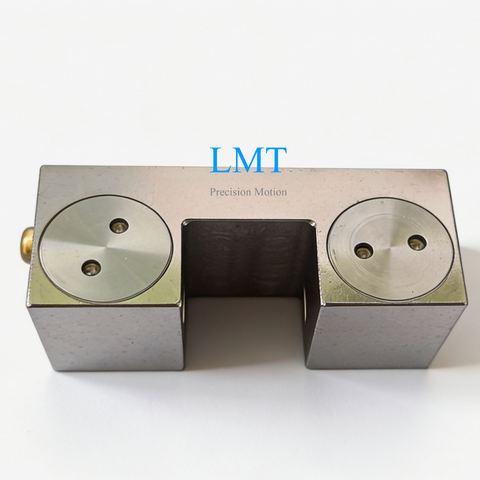

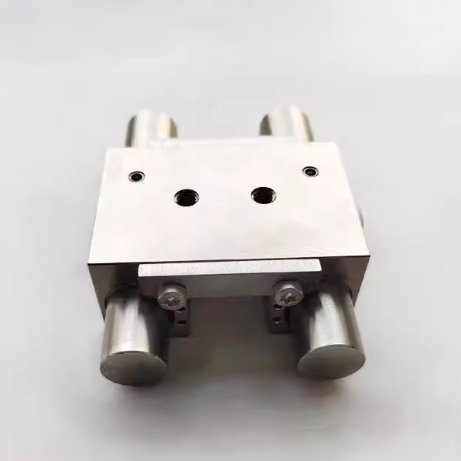

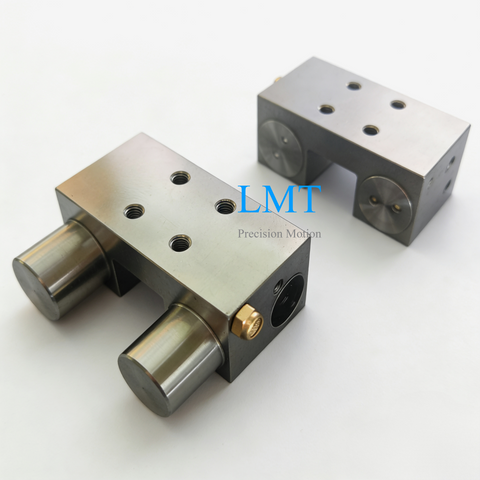

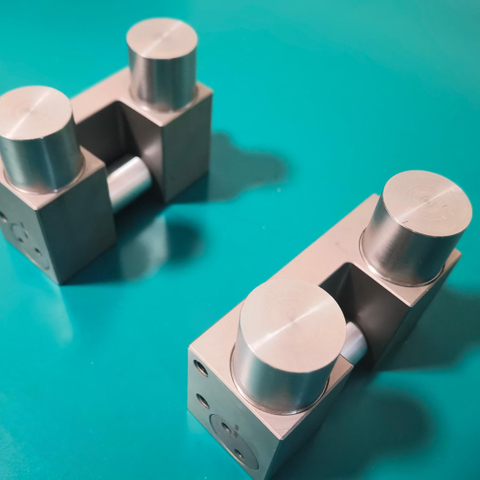

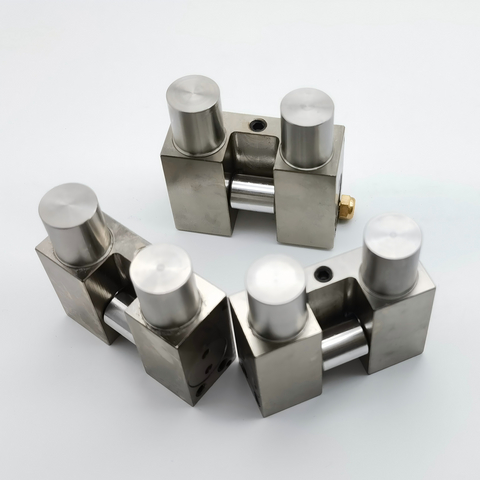

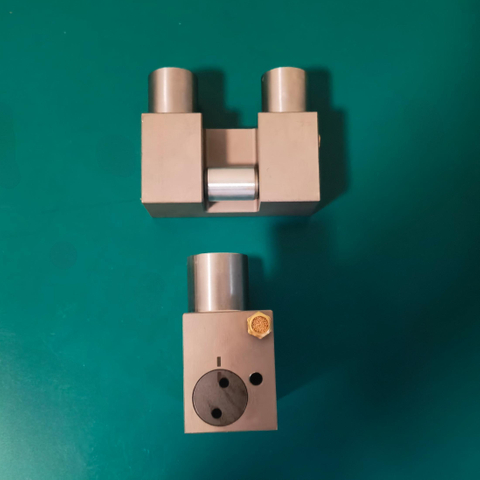

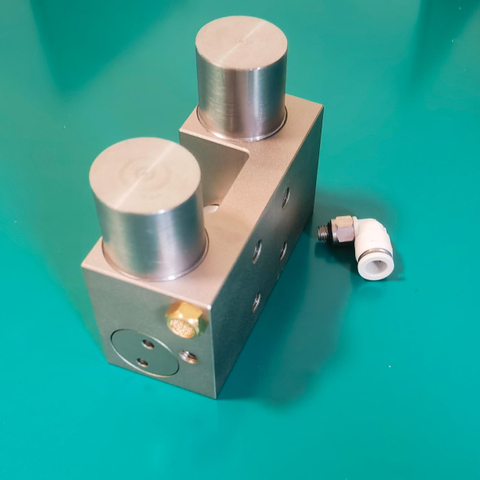

Clamping Element For Linear Guide

More >>

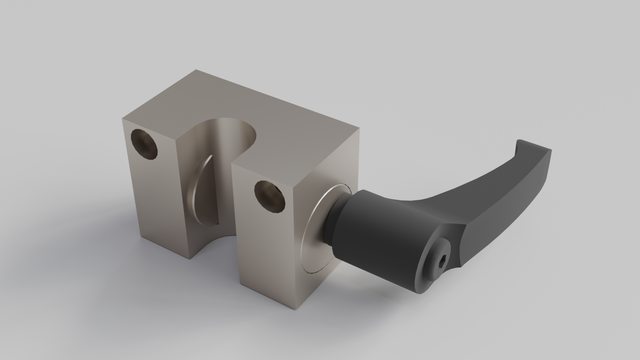

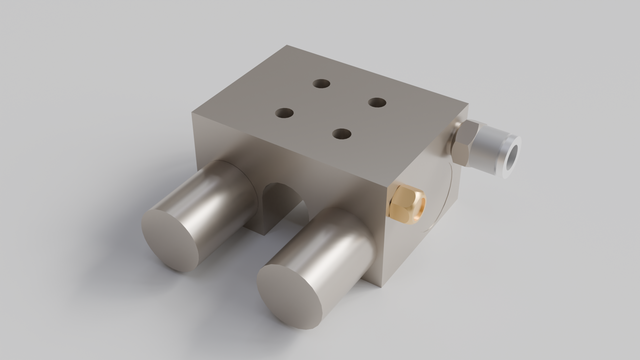

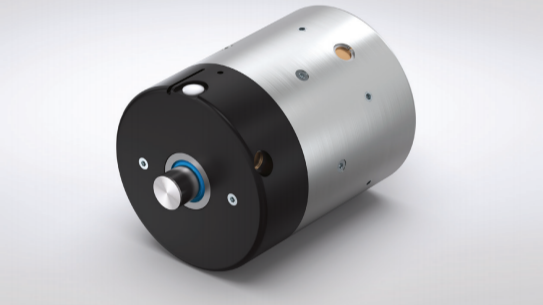

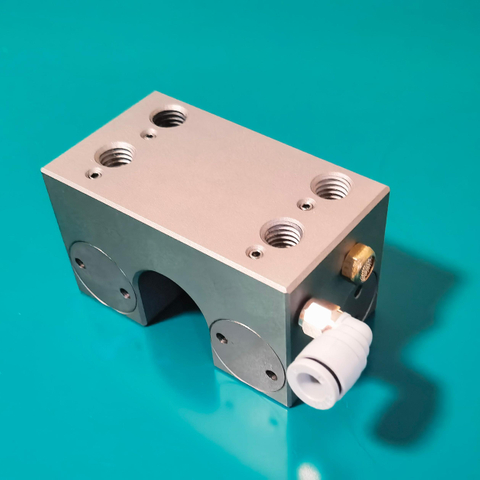

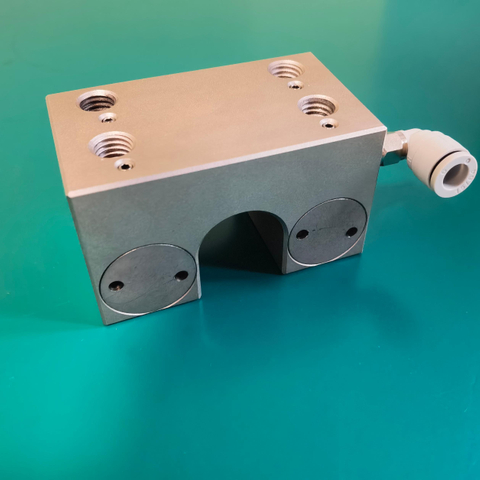

Clamping Element For Circular Guides and Shaft Guides

More >>
Selection Guidelines for LMT Clamping Element

Load Requirements
-Load Type:Confirm whether the load is static or dynamic.For static loads,consider the holding force of the clamping element;for dynamic loads,focus on its response speed and stability.
-Load Magnitude:Select the specification of the clamping element according to the load weight,ensuring its clamping force is sufficient to withstand the maximum load.

Accuracy Requirements
-Positioning Accuracy:For high-precision applications,select clamping braking elements with high repeat positioning accuracy to ensure consistent clamping positions every time.
-Rigidity:The rigidity of the clamping element affects system stability;high rigidity can reduce vibration and deformation.

Speed Requirements
-Response Speed:For high-speed motion,select clamping elements with fast response speeds to ensure rapid clamping and release.
-Operating Speed:The clamping element must adapt to the travel speed of the guide rail to avoid failure caused by excessive velocity.

Environmental Adaptability
-Temperature Range:Select clamping elements with appropriate materials and design based on the working environment temperature,ensuring normal operation under extreme temperatures.
-Protection Rating:In dusty,humid,or corrosive environments,select clamping elements with a high IP rating.

Installation Space
-Dimensional Constraints:Select clamping elements with suitable dimensions based on the available installation space,ensuring unobstructed installation and operation.
-Mounting Method:Consider the installation type of the clamping element(e.g.,bolted or embedded)to ensure compatibility with the system.

Control Method
-Manual or Automatic:Choose between manually or automatically controlled clamping elements based on requirements;automatic control requires consideration of system integration.
-Signal Interface:For automatic control,ensure the signal interface of the clamping element is compatible with the control system.

Maintenance and Service Life
-Maintenance Requirements:Select clamping elements that are easy to maintain and have a long service life to reduce downtime and maintenance costs.
-Wear Resistance:High-wear-resistant materials extend the service life of clamping elements,making them suitable for high-frequency usage.

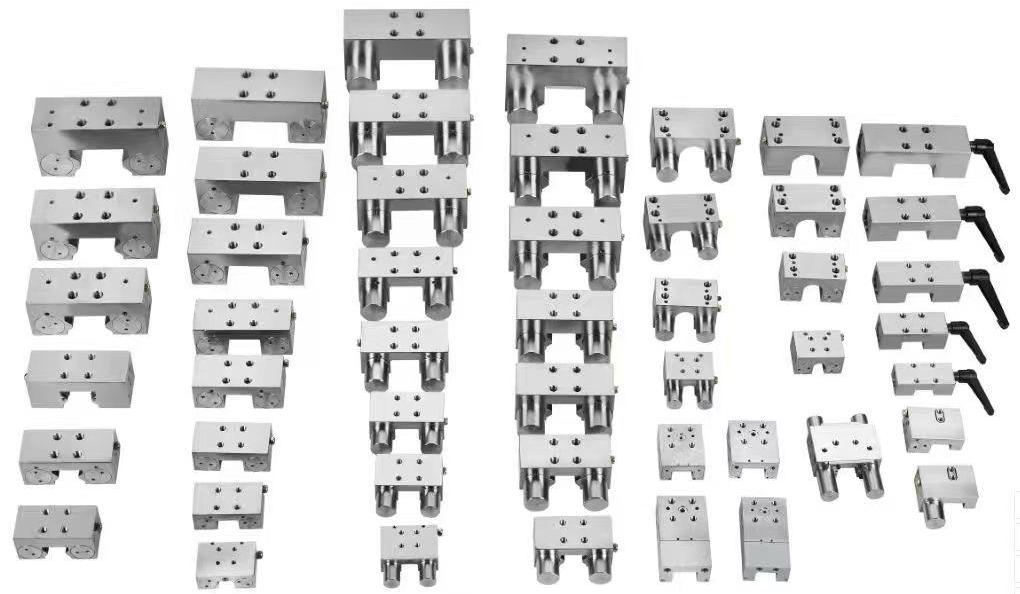

CLAMPING AND BRAKING ELEMENT MANUFACTURER AND SUPPLIER
Precision Clamping Solutions
With 15 years of specialization in manufacturing clamping elements, our factory offers a comprehensive range of over 30 types to meet diverse application needs. We have successfully completed more than 100 projects and serve over 500 clients across various industries. Our commitment to precision engineering and reliable performance makes us a trusted partner for your clamping solutions.
100
+
Project on clamps​​​​​​​
60
+
exporting countries​​​​​​​
15
+
R&D engineer for clamps​​​​​​​
30
+
Types of clamps​​​​​​​

Why Choose LMT?
In a market flooded with clamping element,LMT stands out by addressing the key needs of manufacturers:precision,reliability,cost-effectiveness,and versatility.Whether you’re looking to replace expensive international brands,upgrade your existing clamp system,or customize a solution for a unique application,LMT clamps deliver the performance and value you need.

Unlike most Chinese suppliers that use C45 steel for the clamp body,LMT adopts 42CrMo alloy steel—an alloy with higher strength,better wear resistance,and longer service life.For surface treatment,we use electroless sandblasting nickel plating,which provides excellent anti-rust and anti-corrosion performance,a premium appearance,and resistance to scratching or peeling after long-term use.The contact surface,made of SKD11 with electroless nickel plating,further enhances durability and performance.

LMT uses precision grinding instead of standard milling,ensuring better dimensional accuracy that meets strict industrial needs.Our continuous life test has reached 3.5 million cycles and is still ongoing,a testament to their long-term reliability and robustness.All sealing parts use high-quality imported materials,further enhancing durability and performance in harsh conditions.
Customized Service
Our clamps can be customized and manufactured according to customers' requirements or drawings.
Cost-effective​​​​​​​
Bringing 25% ~50% cost savings to customers.
Fast Delivery
Standard products ship in 3 days,customized products ship in 12 to 25 days.

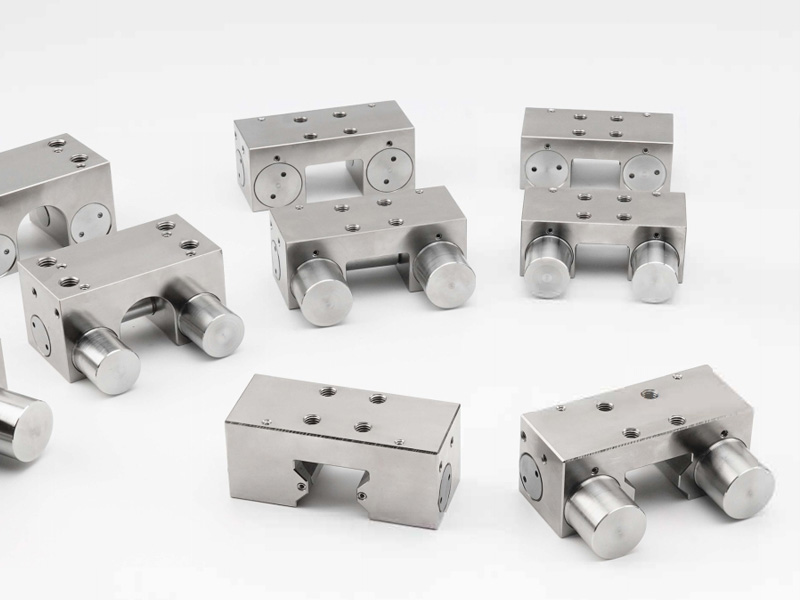

Complete Range of Clamping Element

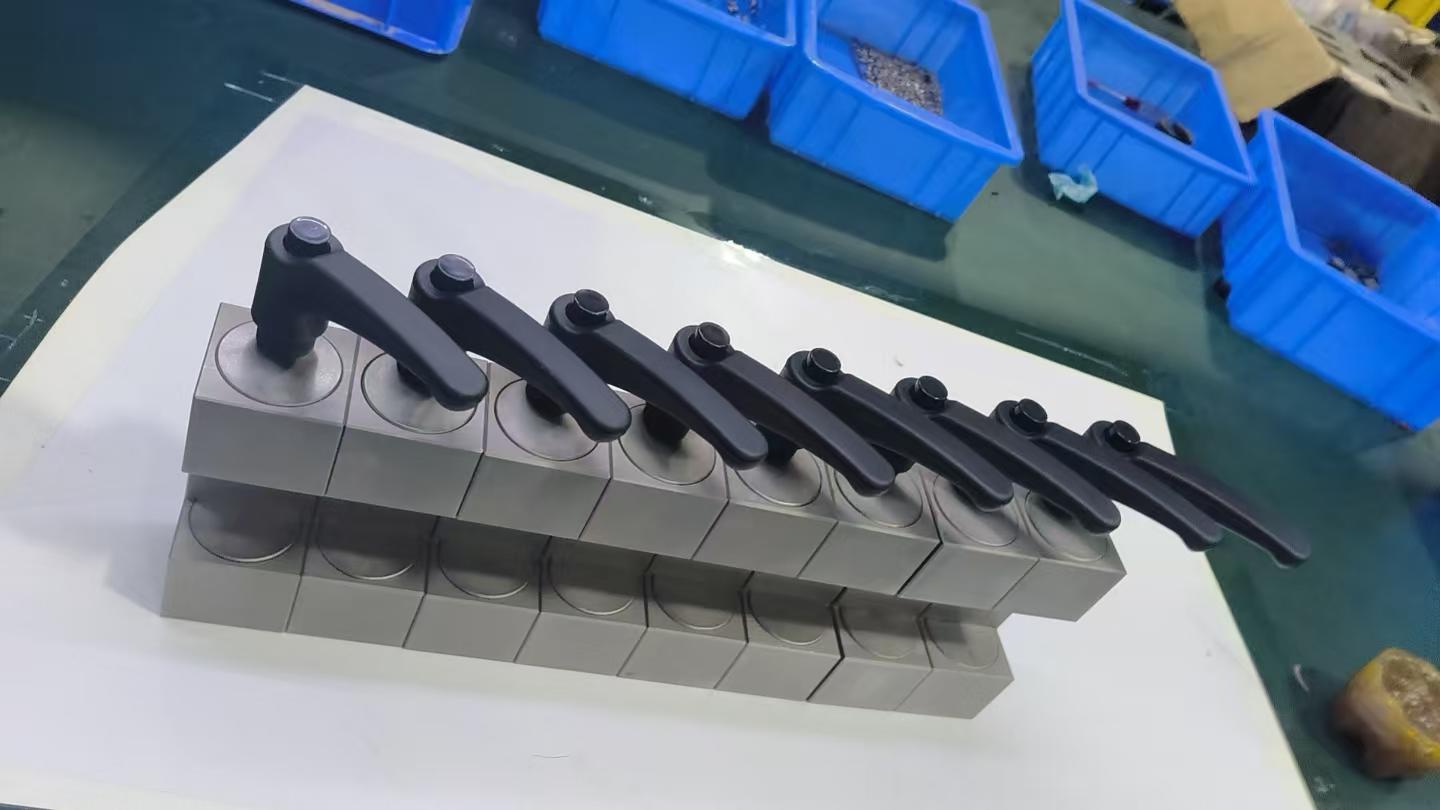

We offer a wide range of manual,pneumatic,electric and hydraulic clamps for linear guides and round shafts.
Experienced in Production
We have been specializing in clamps for 15 years.
Seamless Compatibility & Interchangeability
Suitable for most linear guides and round shafts on the market.

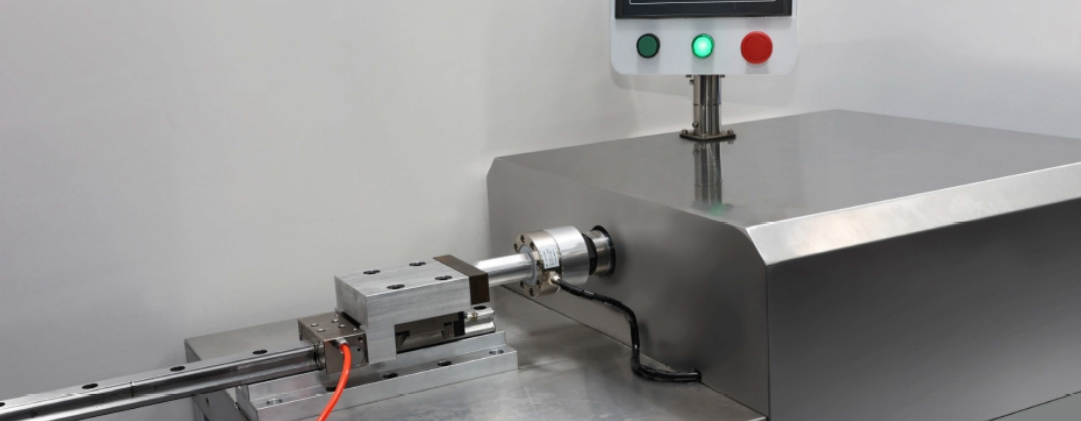

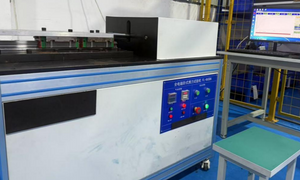

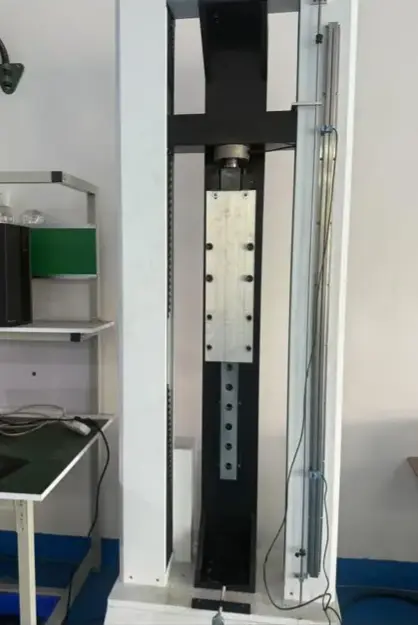

Clamping Element Processing and Inspection Equipment


All braking and clamping elements are strictly tested for braking force limit before leaving the factory, and the quality is 100% guaranteed.

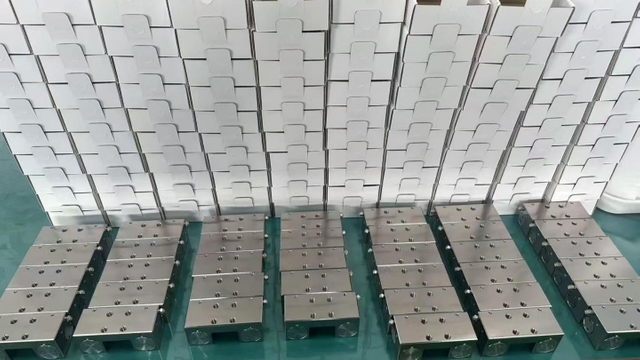

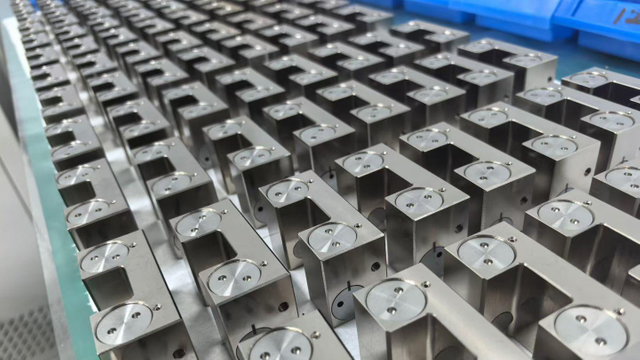

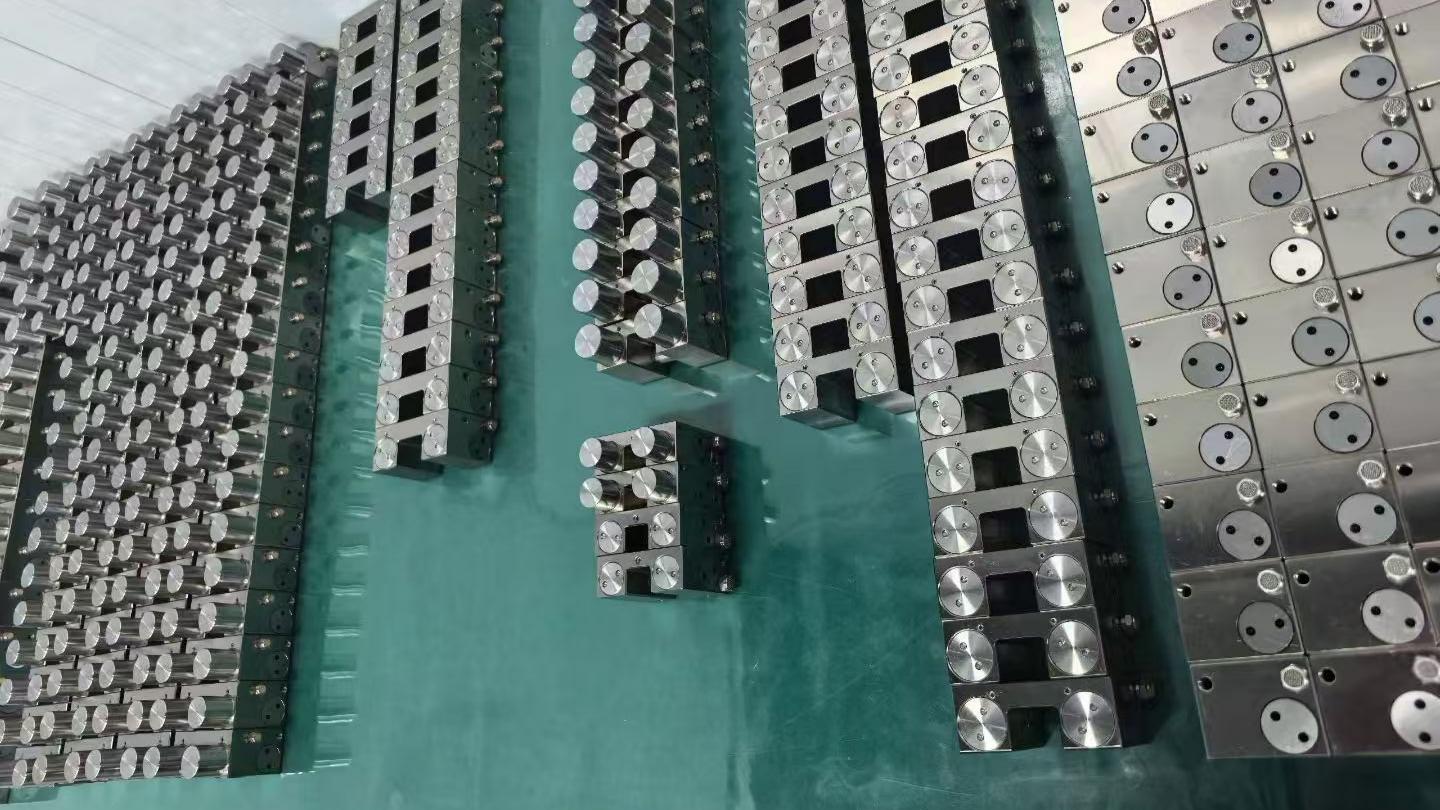

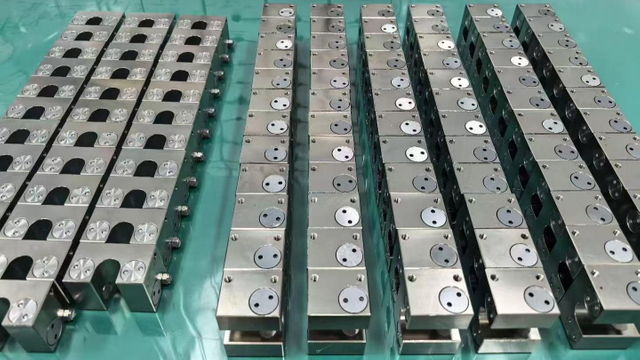

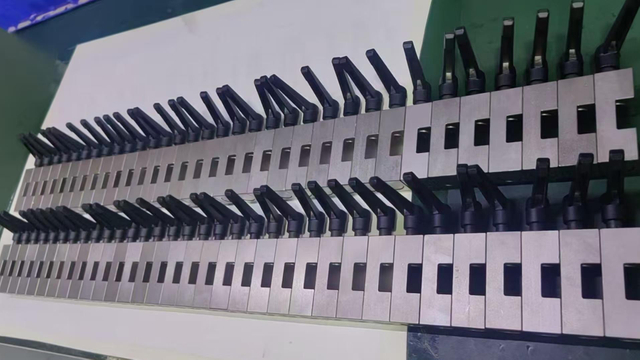

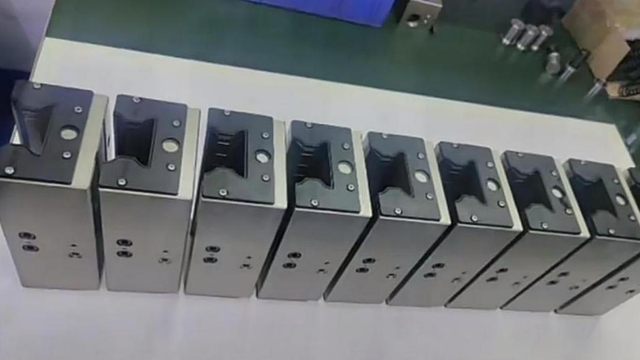

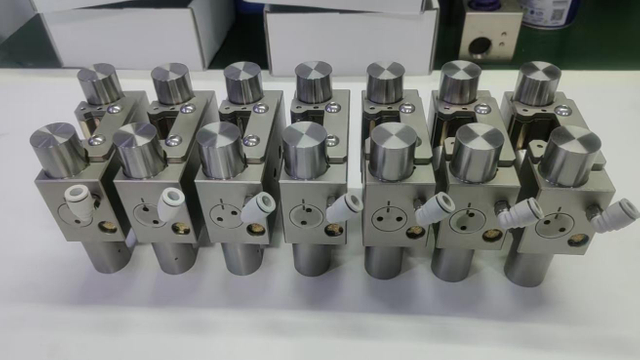

Large In Stock Inventory
