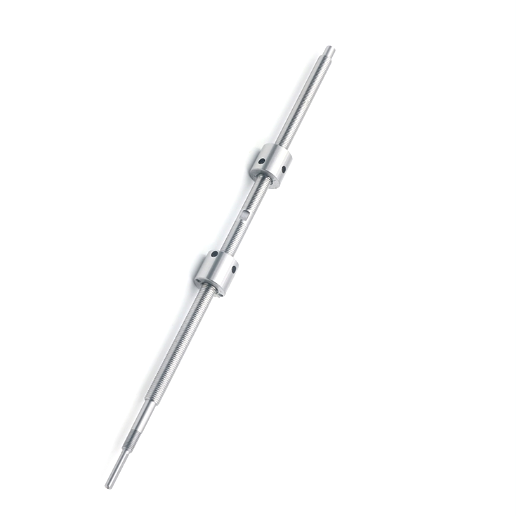

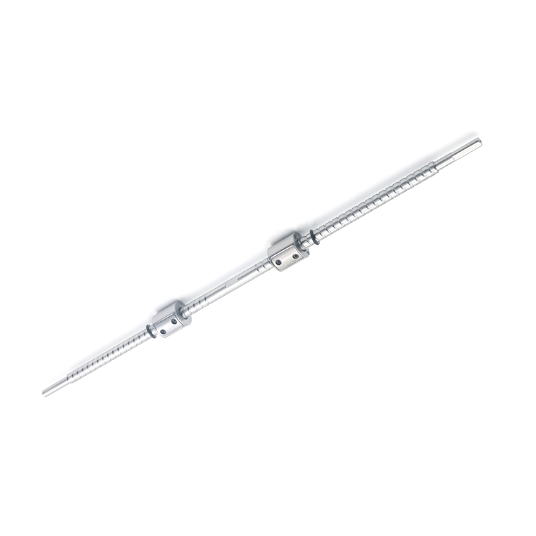

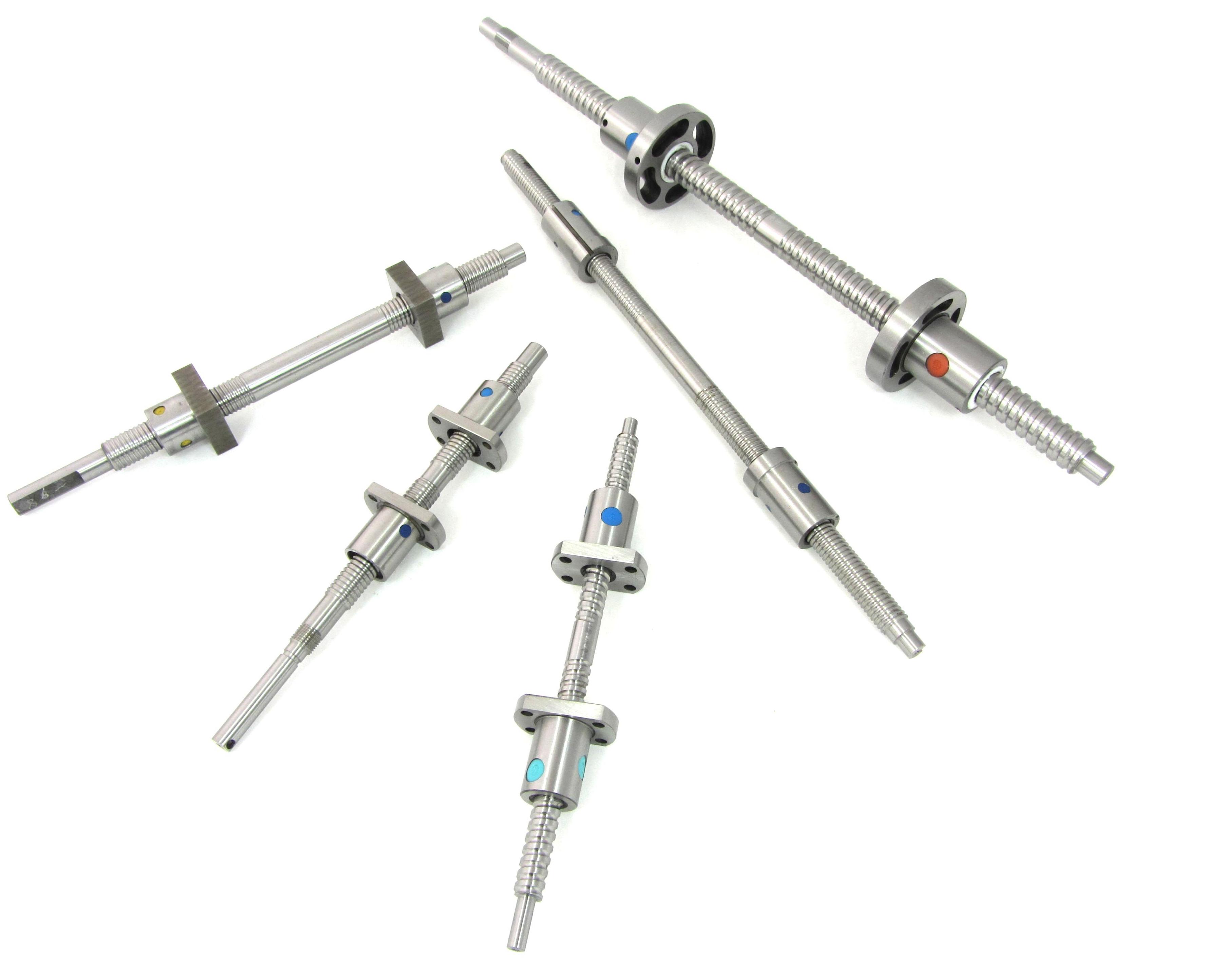

Engineered for synchronized bidirectional motion, our bi-directional ball screws combine left- and right-hand threads on a single ground screw.Achieve C3/C5 accuracy,90% efficiency,and seamless integration in automation,robotics,and aerospace systems
Screw Material: GCr15 or Stainless Steel
Screw Accuracy Grade: C3 or C5
Axial Play: ranging from 0 to 5 microns
Ball Nuts: Flanged (most popular), other types optional
Screw Ends: Unfinished, will custom according to your requirement.
Diameter(mm) | Lead(mm) | ||||||||||
1 | 2 | 2.5 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | |
3 | O | ||||||||||
4 | ● | ||||||||||
5 | ● | ● | O | ||||||||
6 | ● | ● | ● | ● | O | ● | |||||
8 | ● | ● | ● | ● | ● | O | ● | ● | ● | ||
10 | O | ● | O | ● | ● | O | O | ● | O | O | ● |
12 | O | ● | O | ● | ● | O | O | ● | O | O | ● |
14 | O | ● | O | O | O | O | O | O | O | O | O |
Customized Products ○
Standard Products ●
Why Partner With Us?
1. End-to-End Customization
Submit your CAD files or specifications—we handle screw length, thread orientation, nut preload, and end machining.
Material options: Stainless steel (AISI 304/440C), carbon steel, or corrosion-resistant coatings.
2. Rapid Prototyping & Delivery
Prototypes in 7–10 days, full production in 3–4 weeks.
Global shipping with DDP (Duty Paid) options.
3. Quality Assurance
100% testing for backlash, surface roughness (Ra ≤0.4µm), and runout.
ISO 9001-certified manufacturing with full traceability.
