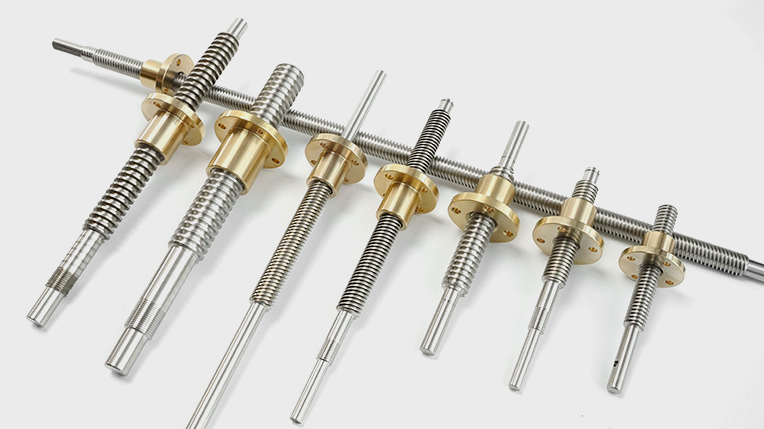

22mm Diameter Trapezoidal Lead Screws
Engineered for reliability and robust performance, our 22mm diameter trapezoidal lead screws are the ideal solution for applications demanding high load capacity, smooth operation, and long-term durability. These precision-made components excel in transferring rotational motion into powerful linear movement with exceptional accuracy. Built to withstand significant forces while maintaining smooth travel, they offer a cost-effective and reliable solution for industrial machinery, heavy-duty actuators, and precision positioning systems. We provide comprehensive customization options—from material selection to specific thread specifications—ensuring a perfect fit for your unique application requirements.
ABOUT US
T22 Trapezoidal Lead Screw Available Models
Below are the popular models of our 22mm diameter trapezoidal lead screws. For other models not listed, please contact our sales team for consultation.
Tr22x3 lead screw: diameter 22mm,lead 3mm,pitch 3mm.
Tr22x4 lead screw:diameter 22,lead 4mm,pitch 4mm.

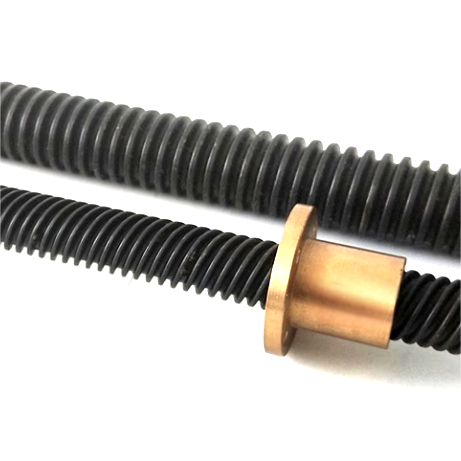

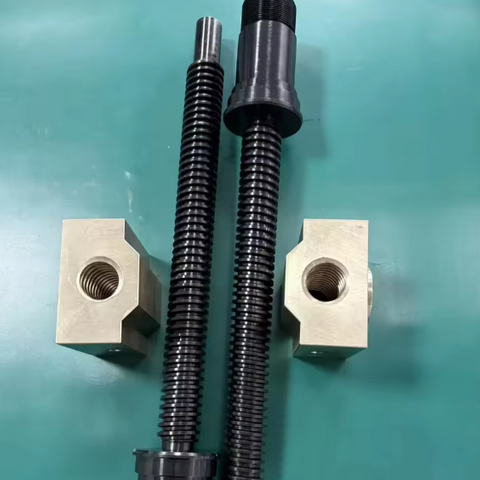

Tr22x5 lead screw:diameter 22mm,lead 5mm,pitch 5mm.
Tr22x6 lead screw:diameter 22,lead 6mm,pitch 2mm.
Tr22x8 lead screw:diameter 22mm,lead 8mm,pitch 4mm.
Tr22x10 lead screw:diameter 22mm,lead 10mm,pitch 5mm.

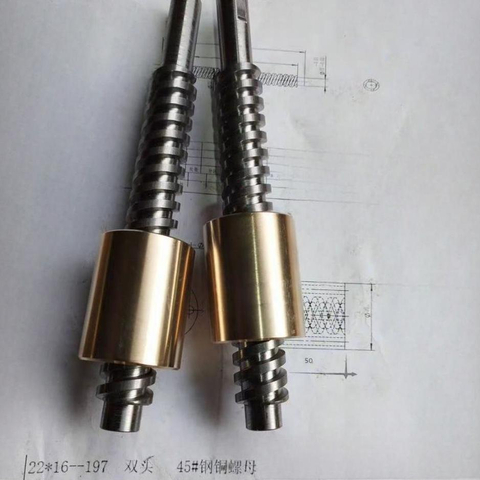

Tr22x16 lead screw:diameter 22mm,lead 16mm,pitch 4mm.
Tr22x20 lead screw:diameter 22,lead 20mm,pitch 4mm.
Tr22x24 lead screw:diameter 22mm,lead 24mm,pitch 4mm.
Tr22x50 lead screw:diameter 22mm,lead 50mm,pitch 5mm.

22mm Diameter Trapezoidal Lead Screw Specification
Diameter: 22mm
Screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating/carburizing treatment
22mm Diameter Trapezoidal Lead Screw Advantages
MOQ：one pc.
Fast delivery:within 12days.
Cost-effective: Helps your project save 20% to 50% in cost.
Unmatched Precision: Manufactured with tight tolerances to ensure smooth and accurate linear motion.
Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.
Support Customization: Lead screws and nuts can be customized according to your requirements and drawings.
Higher Load Capacity: The increased diameter significantly enhances axial load capacity and improves resistance to bending and buckling.
Extremely Smooth Surface Finish: Advanced manufacturing techniques like precision rolling create a low-friction surface for efficient power transmission.
Conform to international standards:All T22 lead screws and nuts comply with ROHS and CE standards.Material test report,hardness test report,quality inspection report as your require.

Tr22 Lead Screw Common Applications
Our 22mm trapezoidal lead screws are vital components in a wide array of industries and applications:
Packaging and Food Processing Machinery for simple,reliable adjustments.
3D Printers and CNC Routers for precise movement of the print head or spindle.
Linear Actuators in lifting mechanisms, adjustable tables, and ergonomic chairs.
Manual Positioning Stages on optical equipment, microscopes, and lab instruments.
Clamping and Pressing Devices where controlled force and self-locking are needed.
22mm Diameter Trapezoidal Lead Screws | Custom Engineered Solutions
Lead Precision & Range: Available in a broad selection of leads, from ultra-fine pitches for precise positioning to larger pitches optimized for high-speed travel.
Lead Screw Length Versatility: Manufactured in standard and custom lengths to meet the specific stroke and spatial requirements of your application.
Material Selection: Choose from a range of high-performance materials for the screw and nut to achieve the ideal balance of strength, durability, and weight.
Protective Coatings: Optional surface treatments and coatings are available to enhance corrosion resistance,reduce friction, and extend the operational lifespan in challenging environments.
End Machining Flexibility: Lead Screw shaft ends can be custom-machined to your specifications, featuring unique threading, drilling, or shaping for seamless integration with bearings, motors, and other components.
Request Your Quote Today!
At LMT, we are more than just a supplier; we are your engineering partner. We understand the challenges of designing with miniature components.

Expert Technical Support: Our team is ready to help with design-in questions and calculations.
Custom Manufacturing: Need a specific length, material, or pitch? We can make it.
Competitive Pricing & Fast Lead Times: Volume production discounts and reliable delivery.
Request a Quote
15＋
With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.​​​​​​​
Professional Engineering Team
LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.​​​​​​​​​​​​​​
1000+
Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

22mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
