36x6

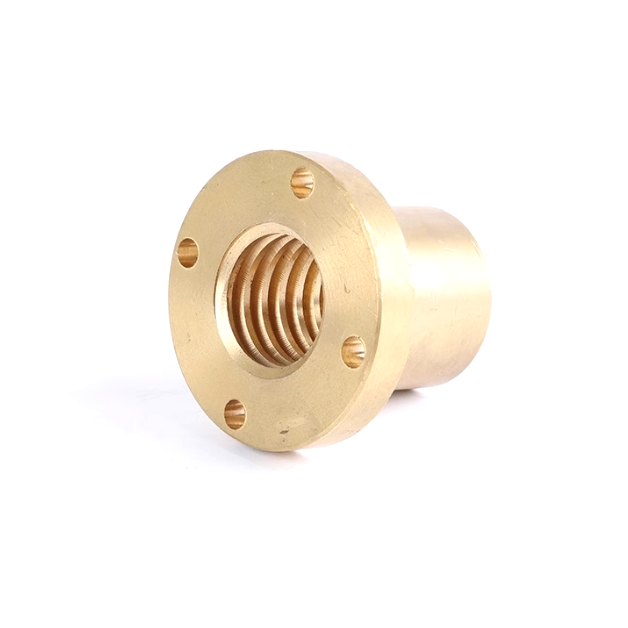

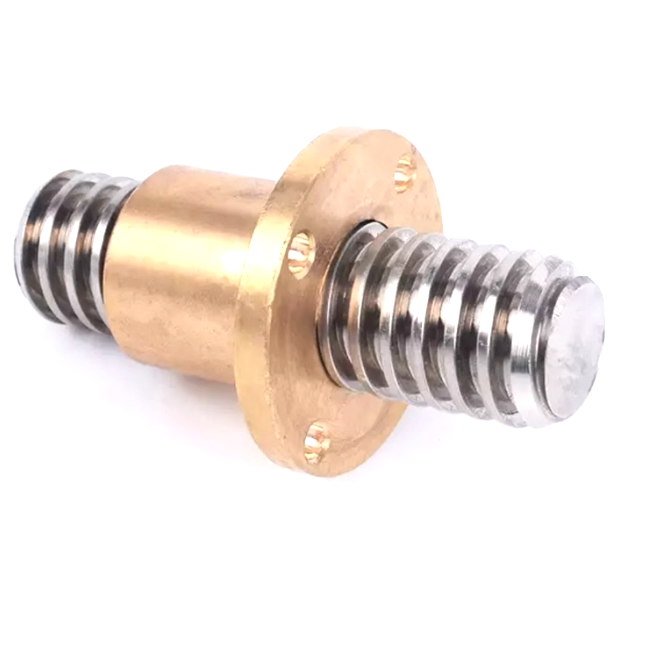

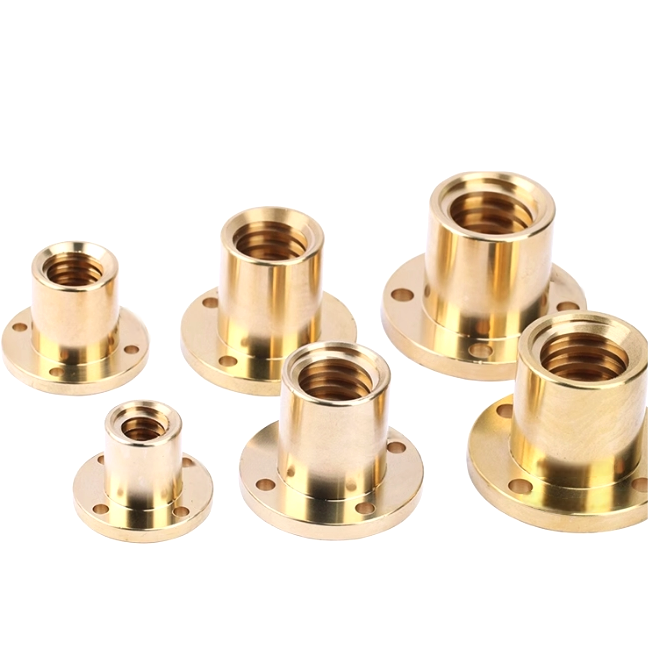

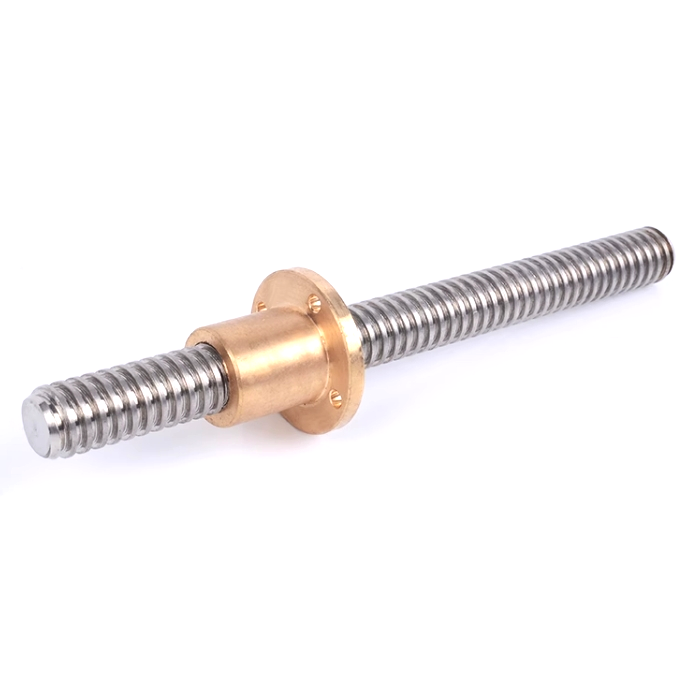

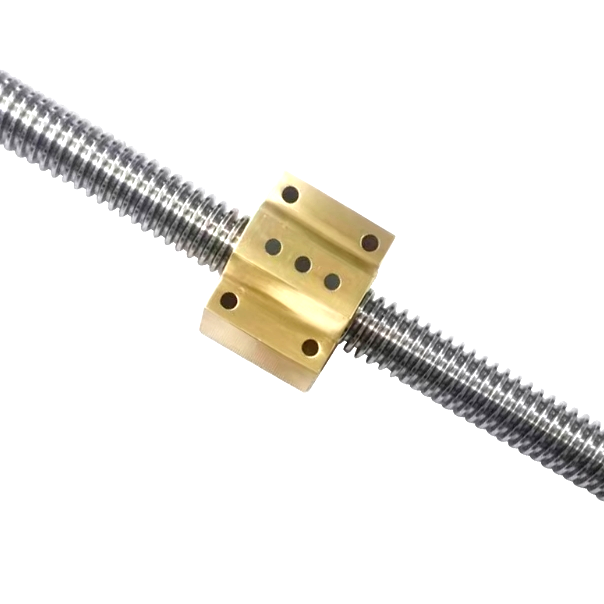

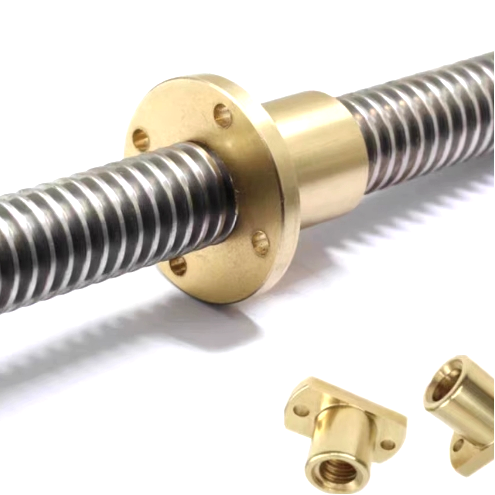

36 X 6 Right Hand Thread Trapezoidal Lead Screw
T36x6 right-hand trapezoidal screw has a diameter of 36 mm and a lead of 6 mm. The right-hand thread adopts a standard rotation design.The drive nut is pushed forward by rotating clockwise and retracted counterclockwise.It is highly versatile and adapts to the rotation direction of most equipment,making it easy to install and maintain.
Diamter | 36mm |
Lead | 6mm |
Pitch | 6mm |
Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
The thread tooth profile is a symmetrical trapezoidal structure (the tooth side angle is usually 30°).This 36x6 trapezoidal lead screw has high load-bearing capacity,wear resistance and easy processing characteristics.It is suitable for mechanical systems that require stable force transmission and medium precision,such as lifting platforms and injection molding machine mold clamping.It is a reliable solution for heavy-duty transmission.
Contact our sales to customize your trapezoid screw and nut!
