Diameter 6mm Lead 6mm T6x6 Trapezoidal Lead Screw

This product shows the models we can produce.

Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T6x6


Availability:



Inquire Add to Basket

Product Description

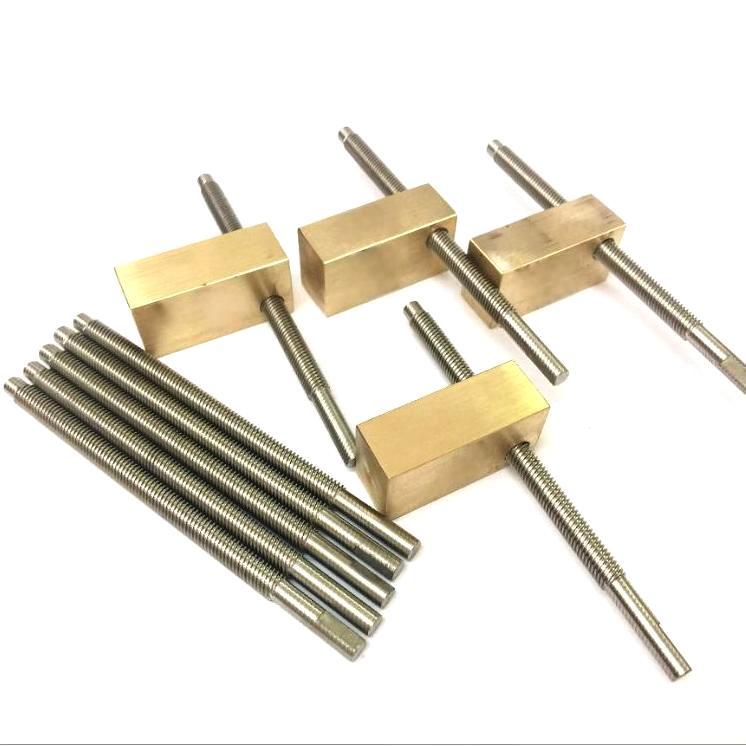

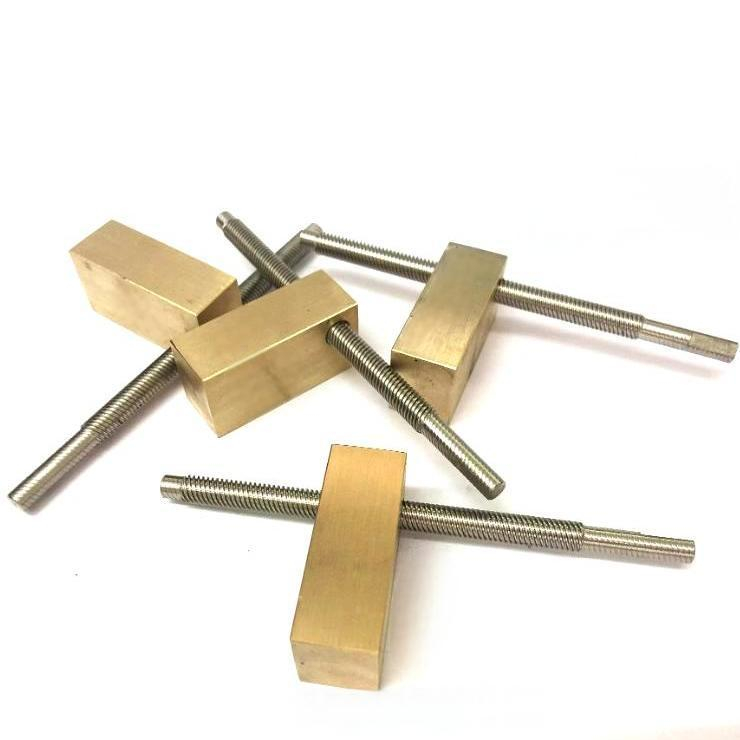

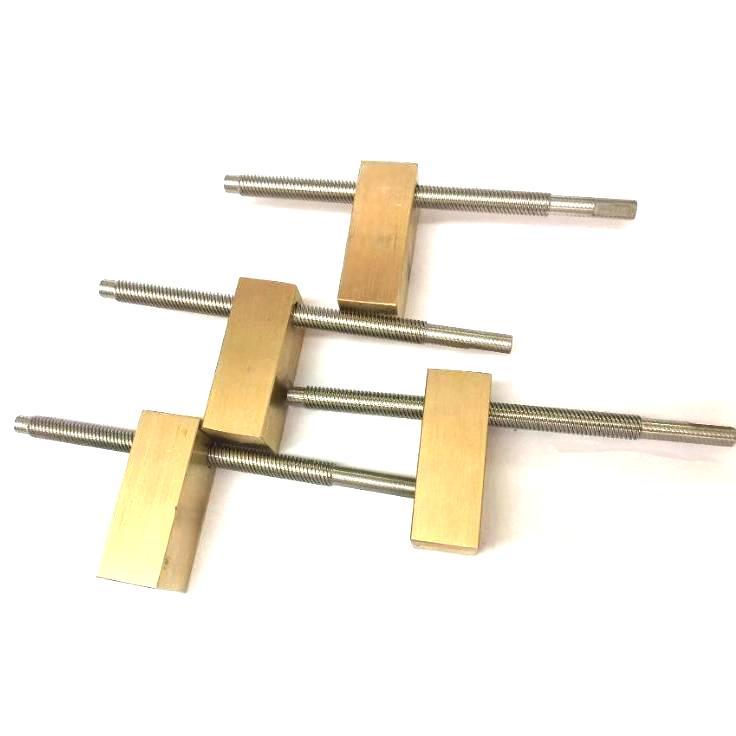

Diameter 6mm Lead 6mm T6x6 Trapezoidal Lead Screw

This trapezoidal lead screw diameter is 6mm,lead 6mm,pitch 1mm.T6x6 lead screw and nut dimensions,material,surface coatings are produced according to your requirements.

Diamter	6mm
Lead	6mm
Pitch	1mm
Number of starts	6
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316

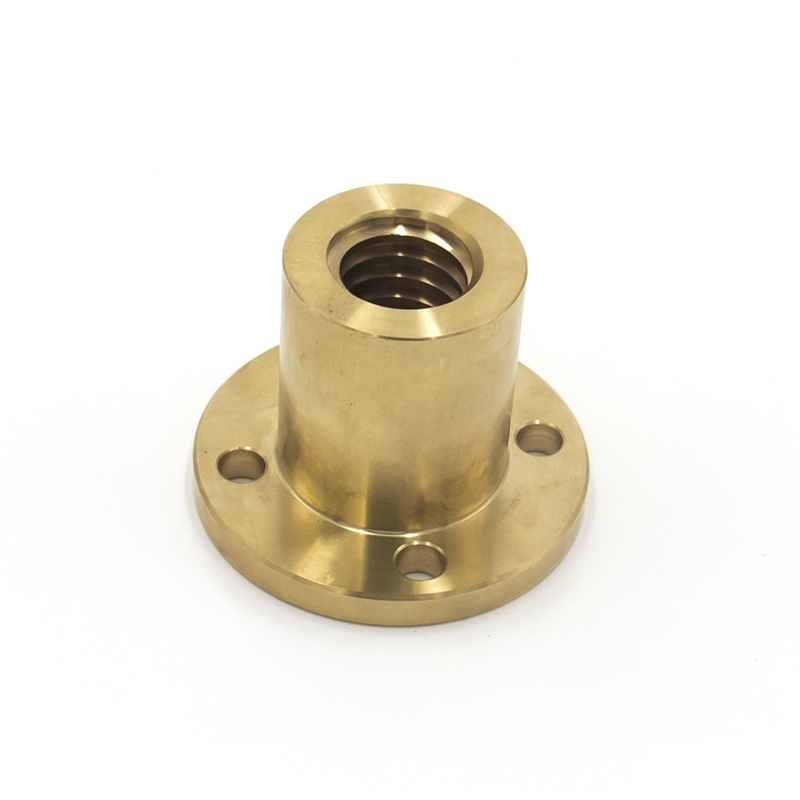

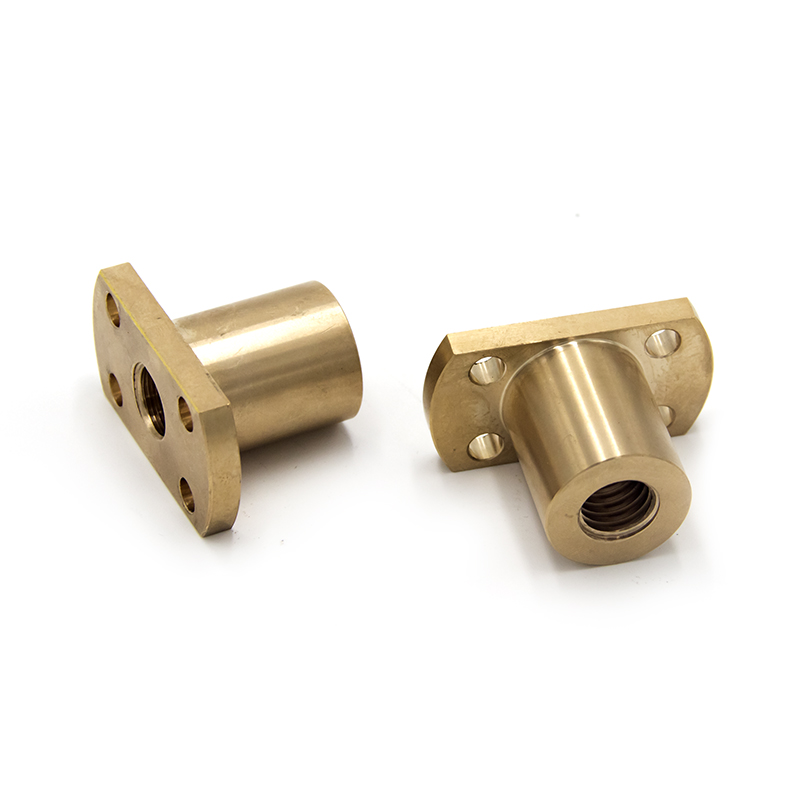

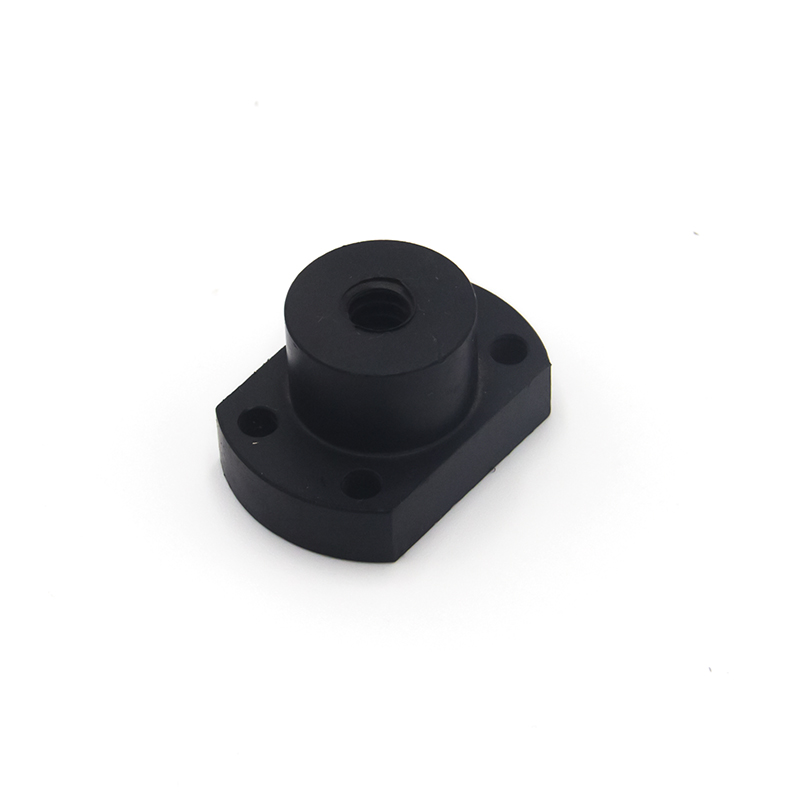

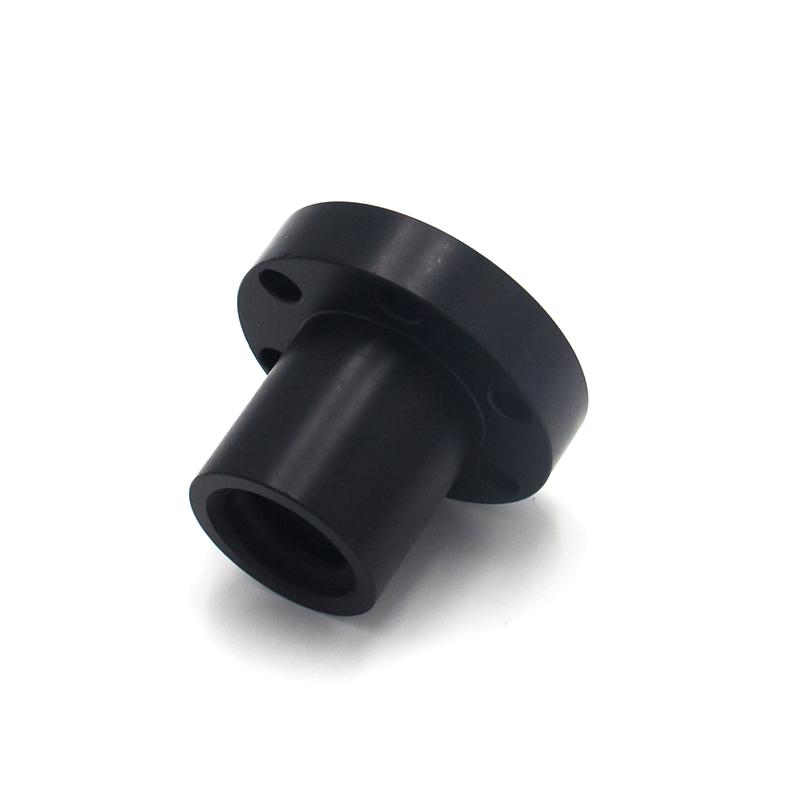

Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
