T12x8

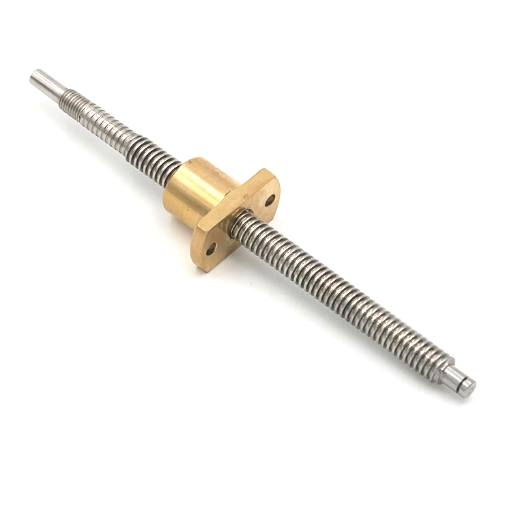

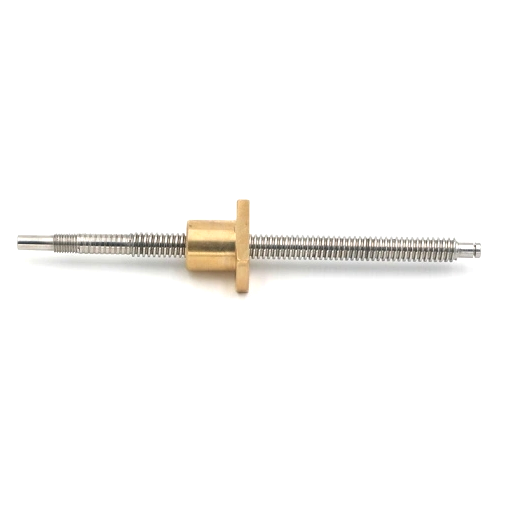

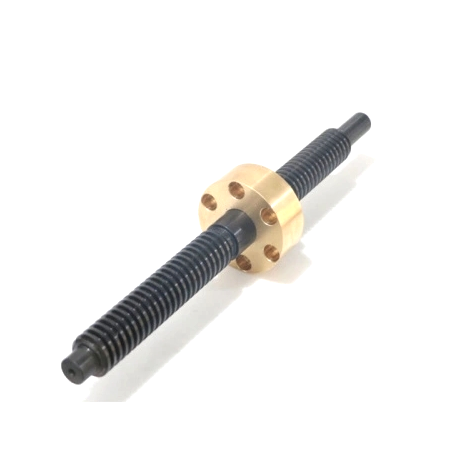

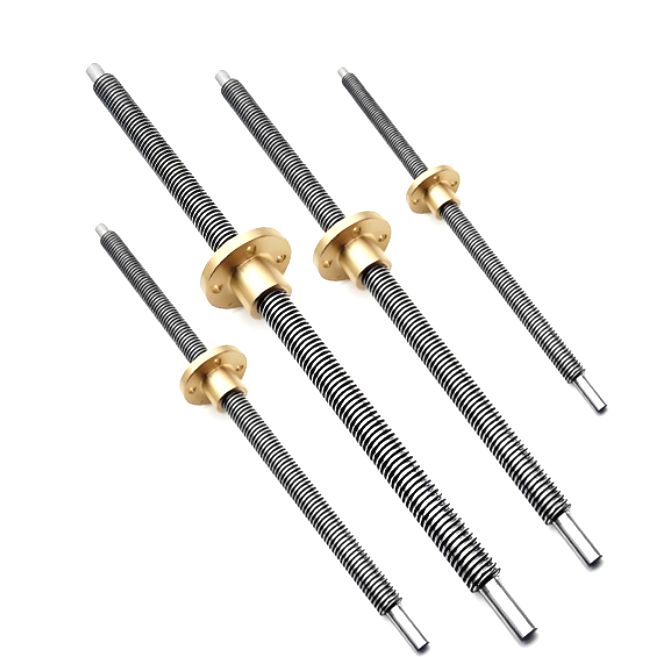

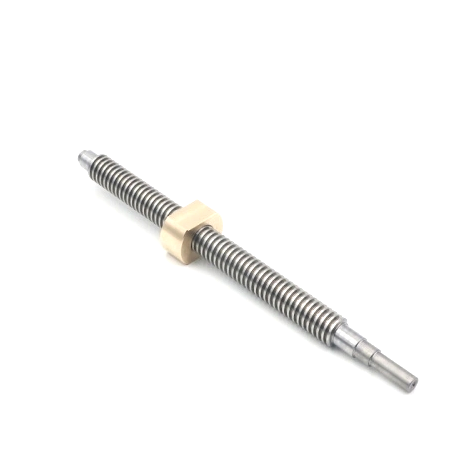

T12x8 High Accuracy Trapezoidal Screw And Nut
This lead screw has a nominal diameter of 12mm,a lead of 8mm,and a maximum lead accuracy of 0.01mm/100mm.This trapezoidal screw is suitable for industrial scenarios with strict requirements on positioning accuracy and repeatability.
Diamter | 12mm |
Lead | 8mm |
Pitch | 2mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your trapezoid leadscrew and nut!
