T16x3 Custom Bi-directional Lead Screw & Nut

This product shows the models we can produce.

Lead screw and nut will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T16x3


Availability:



Inquire Add to Basket

Product Description

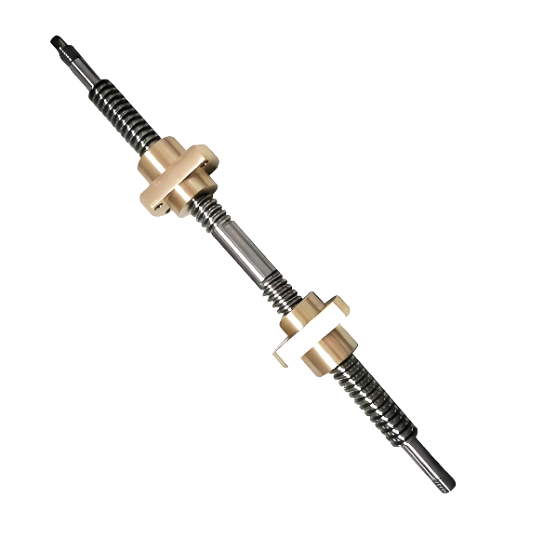

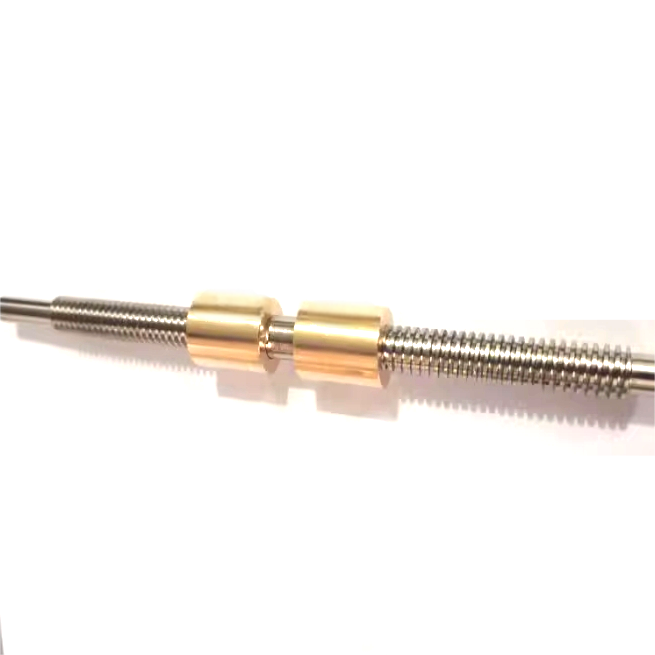

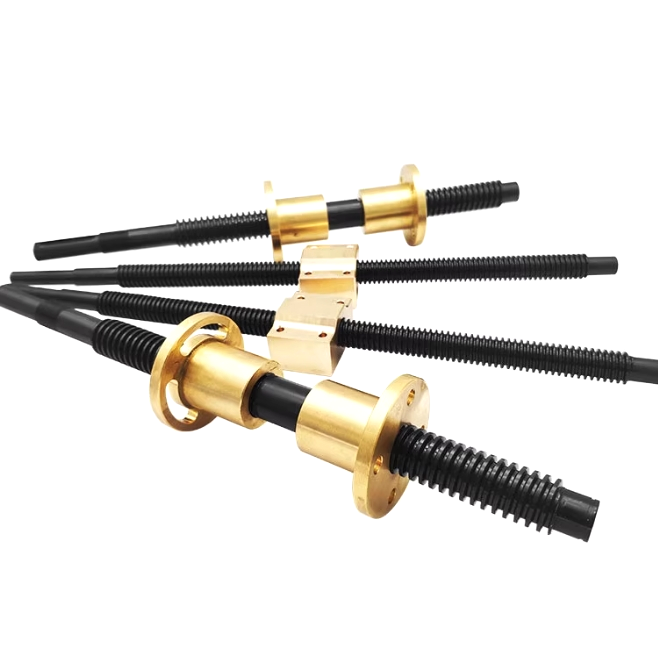

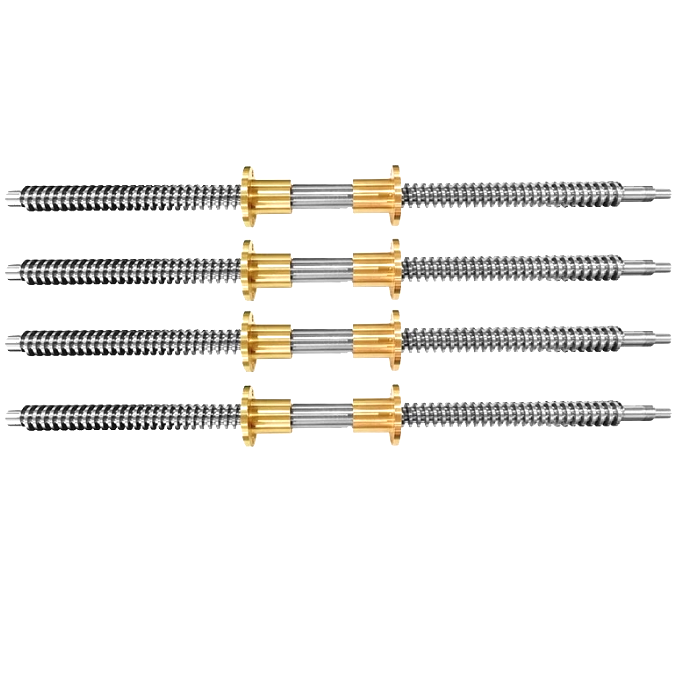

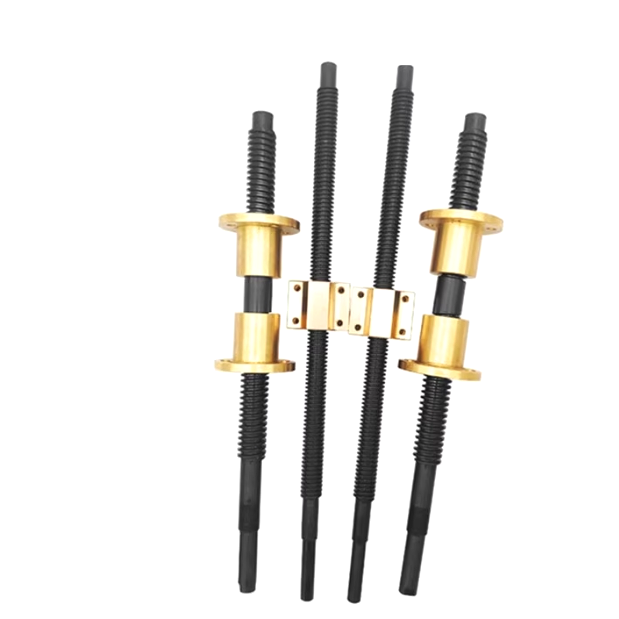

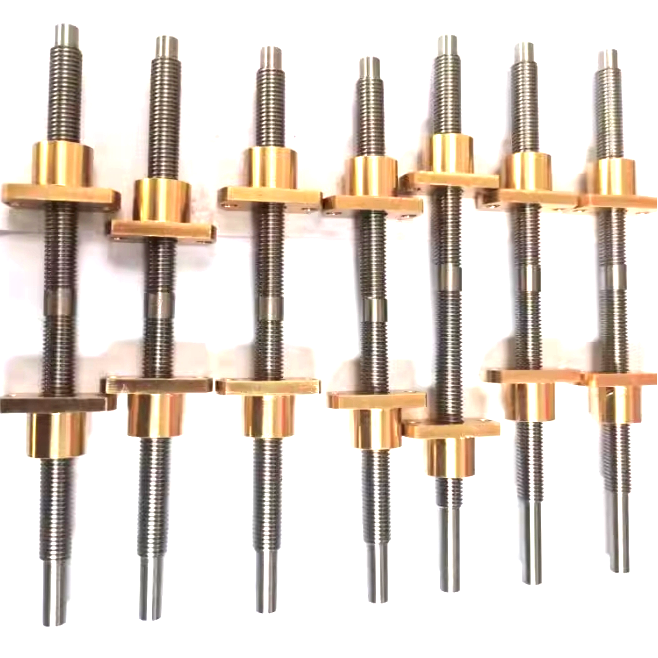

T16x3 Custom Bi-directional Lead Screw & Nut

This is a trapezoidal thread structure lead screw with a nominal diameter of 16mm and a lead of 3mm.The bidirectional trapezoidal thread design supports bidirectional synchronous drive,simplifies the mechanical structure,and improves response efficiency.

Diamter	16mm
Lead	3mm
Pitch	3mm
Number of starts	1
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

We support in-depth customization services,and can flexibly customize the 16x3 lead screw shaft end machining,nut size,screw and nut material,etc.,which significantly improves wear resistance and environmental adaptability.
