T20x4 Diameter 20mm Lead 4mm Trapezoidal Screw

This product shows the models we can produce.

Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time: 10~15days

Model:
T20x4


Availability:



Inquire Add to Basket

Product Description

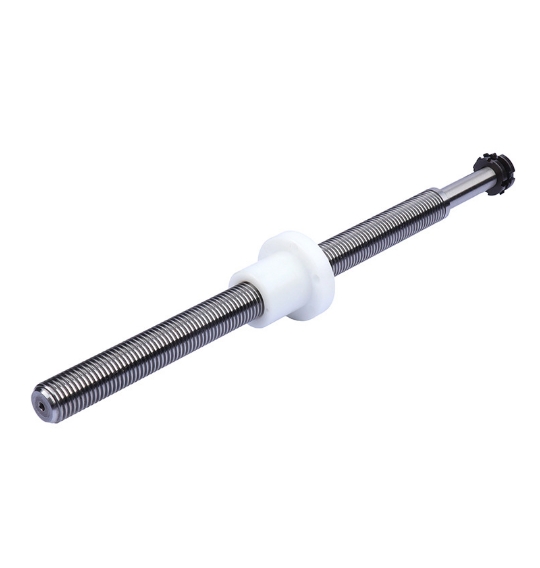

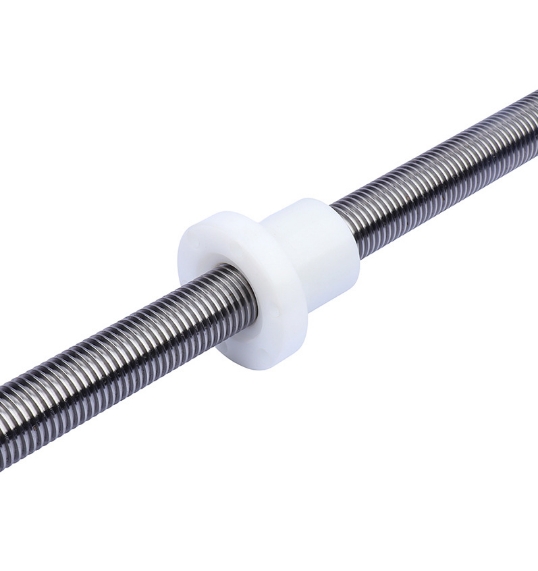

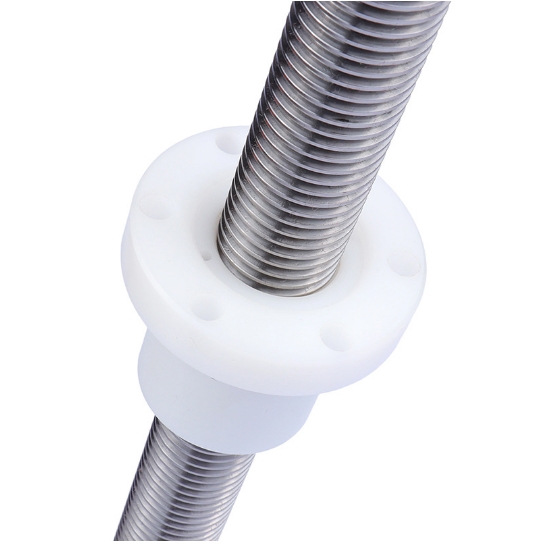

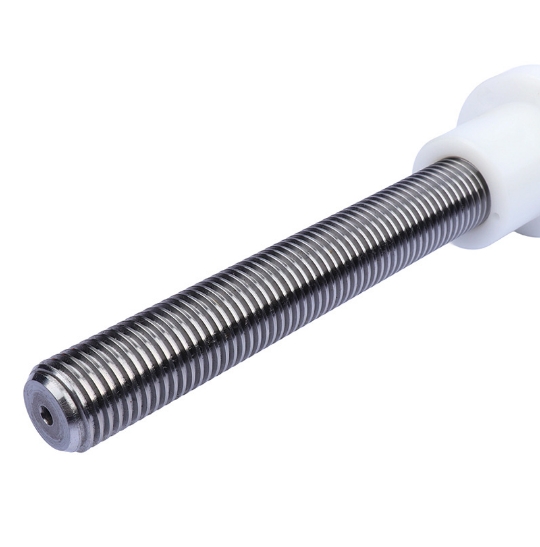

T20x4 Diameter 20mm Lead 4mm Trapezoidal Screw

This trapezoidal screw diameter is 20mm,lead 4mm,pitch 4mm.Tr20x4 lead screw and nut dimensions,material,surface coatings are produced according to your requirements.

Diamter	20mm
Lead	4mm
Pitch	4mm
Number of starts	1
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
