Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings

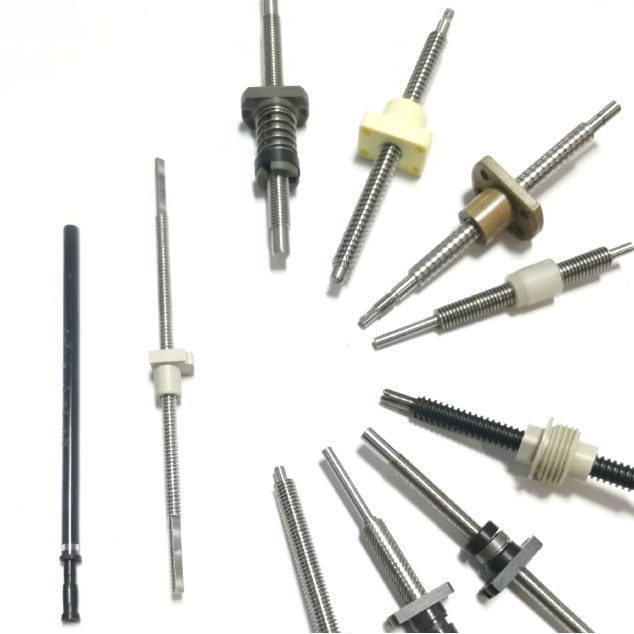

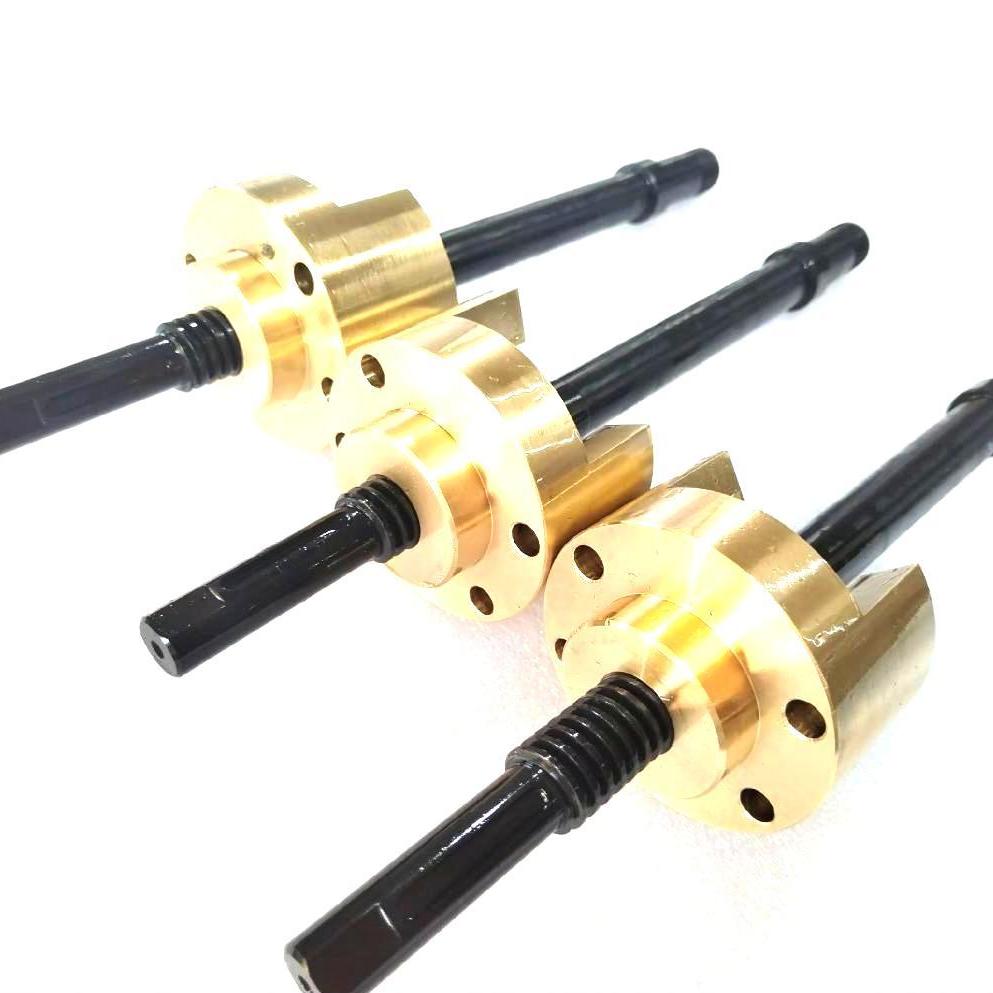

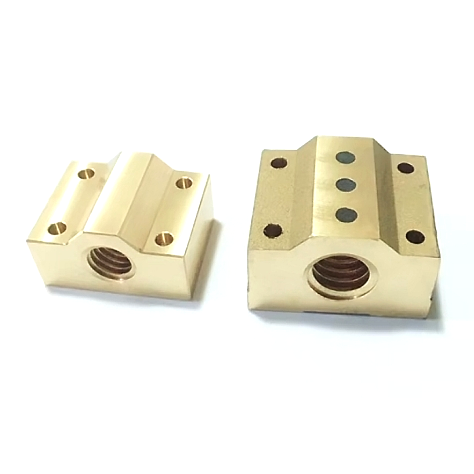

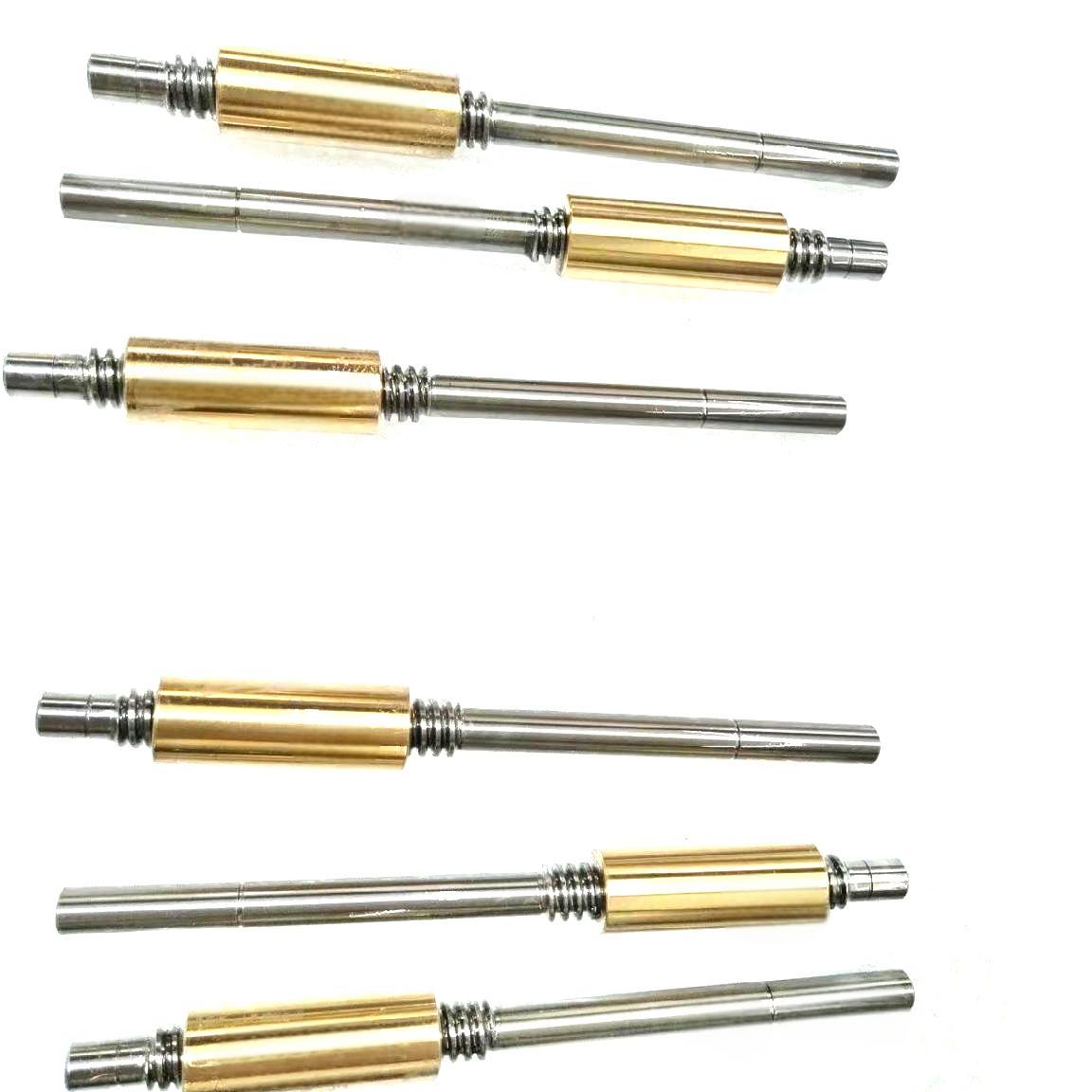

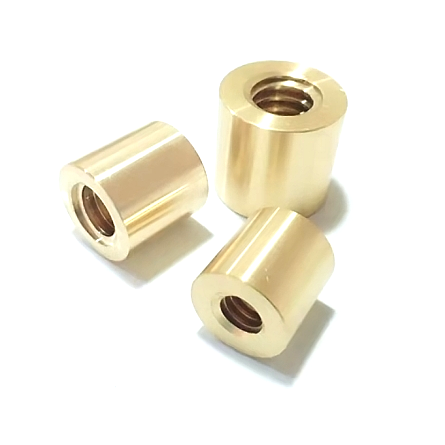

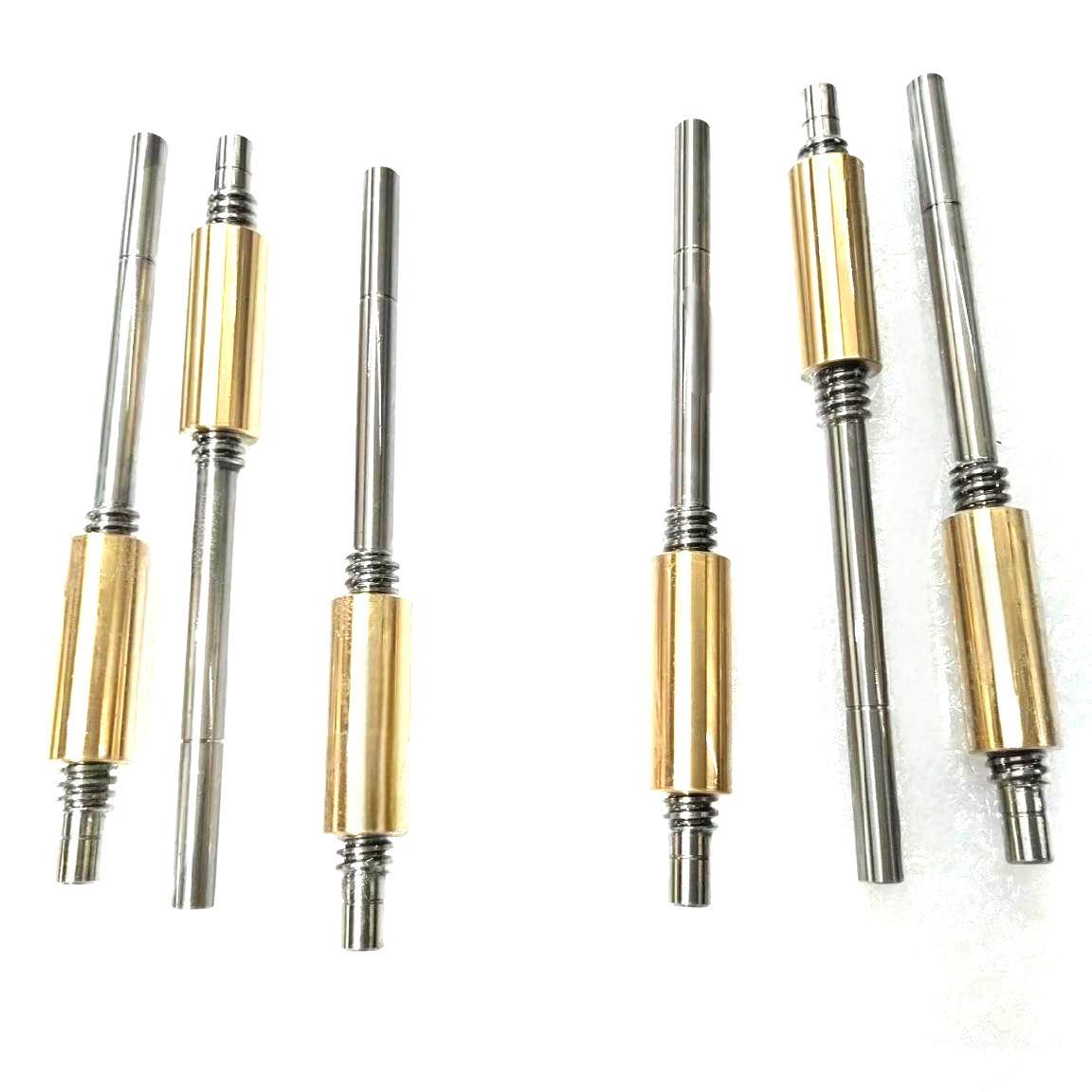

T6x1 Custom 6x1 Trapezoidal Lead Screw with Metal Nuts
The T6x1 Lead Screw diameter is 6mm,lead and pitch is 1mm,designed to pair with durable metal nuts such as brass,bronze,stainless steel,or carbon steel.Engineered for high-temperature resistance,exceptional wear resilience,and high-load capacity,this lead screw nut combination ensures reliable performance in demanding applications.
Diameter | 6mm |
Lead | 1mm |
Pitch | 1mm |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
The advantages of our lead screw:
Cost-Effective:30% cost savings.
Lead Time: Within 12 days.
Lightweight Design:Compact 6mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Contact our sales to customize your 6x1 trapezoid screw and nut!
