T8x4
Availability: | |
---|---|

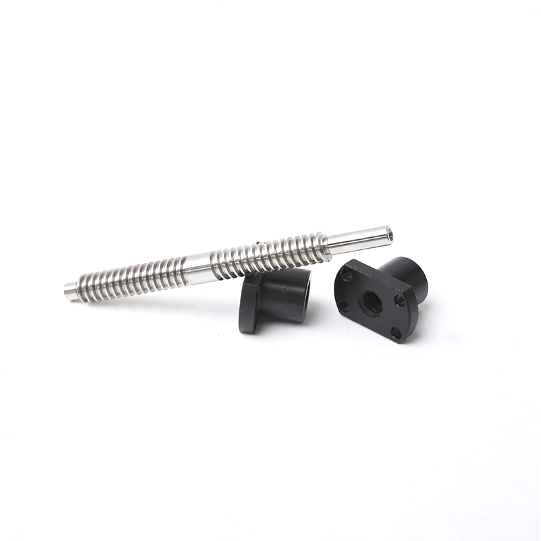

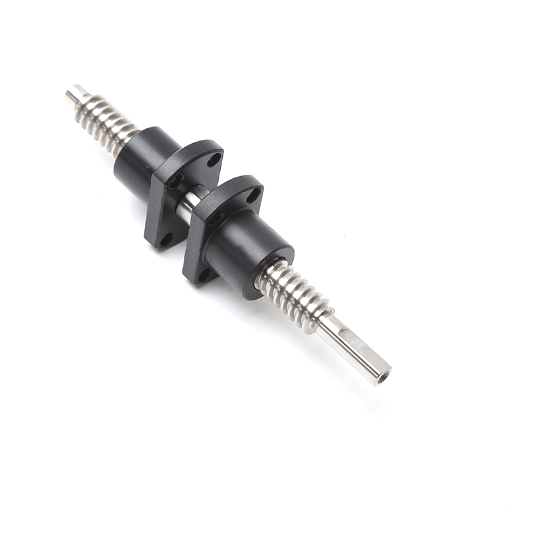

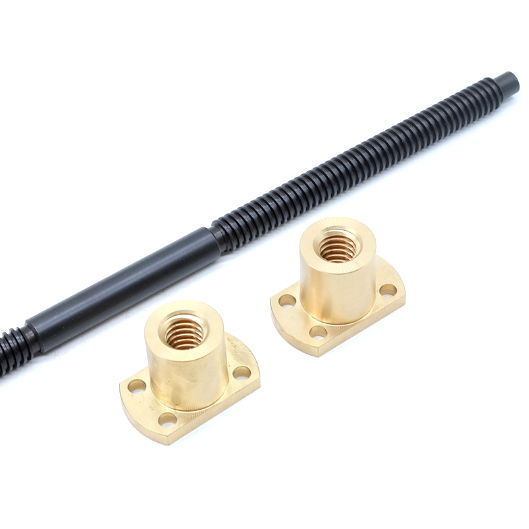

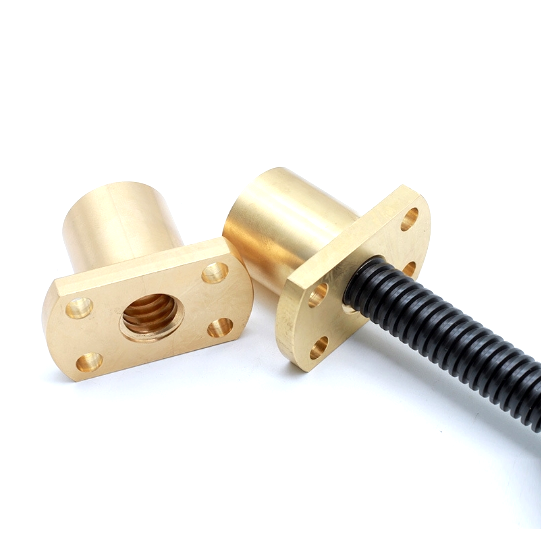

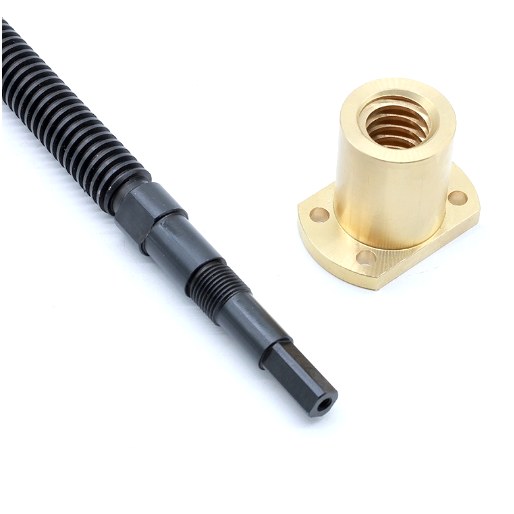

T8x4 Diameter 8mm Lead 4mm Bi-directional Lead Screw
This bi-directional T8x4 lead screw has a diameter of 8mm and a lead of 4mm,the screw and nut will be produced according to your needs.
Diamter | 8mm |
Lead | 4mm |
Pitch | 2mm |
Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your bi-directional lead screw and nut!
