Tr12x12 Wear-resistant Trapezoidal Screw And Nut

T12x12 Lead screw & nut will be customized according to your requirements and drawing.

MOQ: 1pc

Lead time: 12~14days

Model:
T12x12


Availability:



Inquire Add to Basket

Product Description

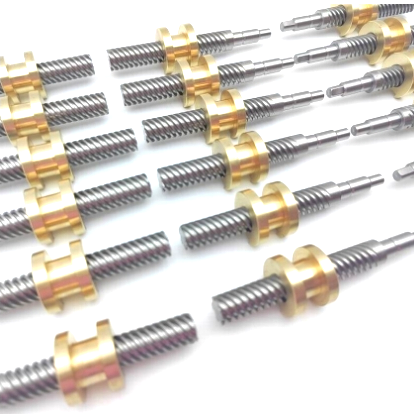

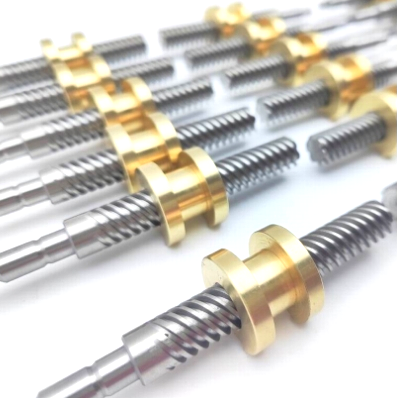

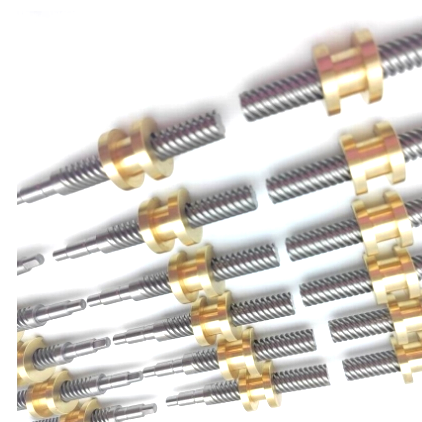

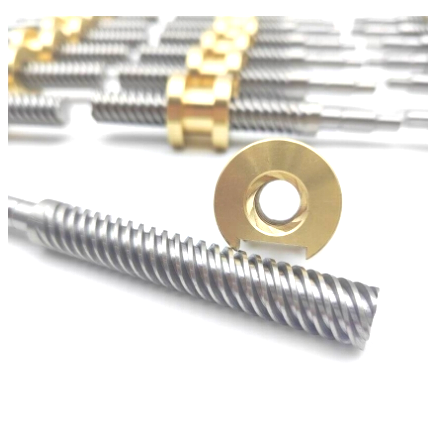

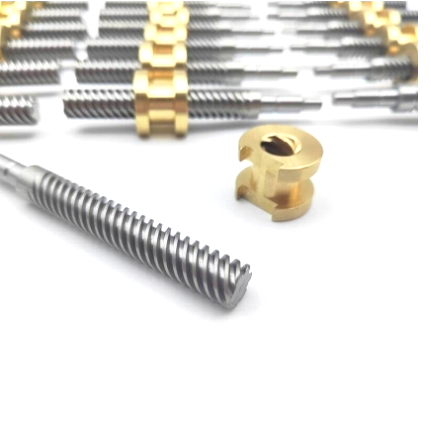

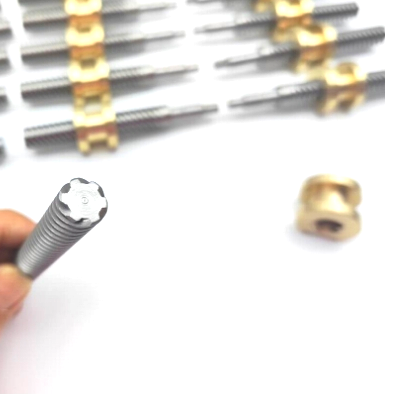

Tr12x12 Wear-resistant Trapezoidal Screw And Nut

This screw has a nominal diameter of 12mm and a lead of 12mm.It adopts a trapezoidal thread design,has high load capacity and smooth transmission characteristics.Both Tr12x12 nut and lead screw can be customized.The lead screw enables efficient operation of industrial equipment with excellent wear resistance and stability.

Diamter	12mm
Lead	12mm
Pitch	2mm or 3mm
Number of starts	6 or 4
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
