Tr12x15 Dia 12mm Lead 15mm Trapezoidal Screw And Nut

Model Number: Diameter 12mm,lead 15mm(pitch 2.5mm or 3mm)

Lead Time: 12~14days,MOQ 1 pc
Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Lead screws and nuts will be custom-produced according to your requirements or drawings


Availability:



Inquire Add to Basket

Product Description

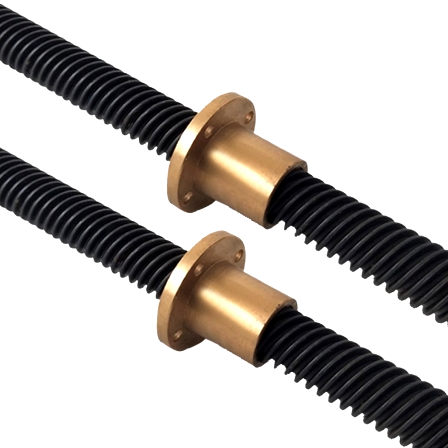

Tr12x15 Dia 12mm Lead 15mm Trapezoidal Screw And Nut

The Tr12x15 trapezoidal lead screw has a diameter of 12mm and a lead of 15mm.This trapezoidal lead screw operates very smoothly and noiselessly.Our lead screws are cost-effective and the ideal choice for your automation equipment.

Diamter	12mm
Lead	15mm
Pitch	2.5mm or 3mm
Number of starts	6 or 5
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

Our Lead Screw Key Advantages:

Cost-Effective Solution:30% cost savings.
Fast delivery: Lead time within 14 days.
High Precision:Highest lead accuracy 0.027mm/100mm
Customizable Design:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Superior Surface Finish:Advanced manufacturing techniques ensure a flawless surface finish,enhancing corrosion resistance and minimizing wear over time.
