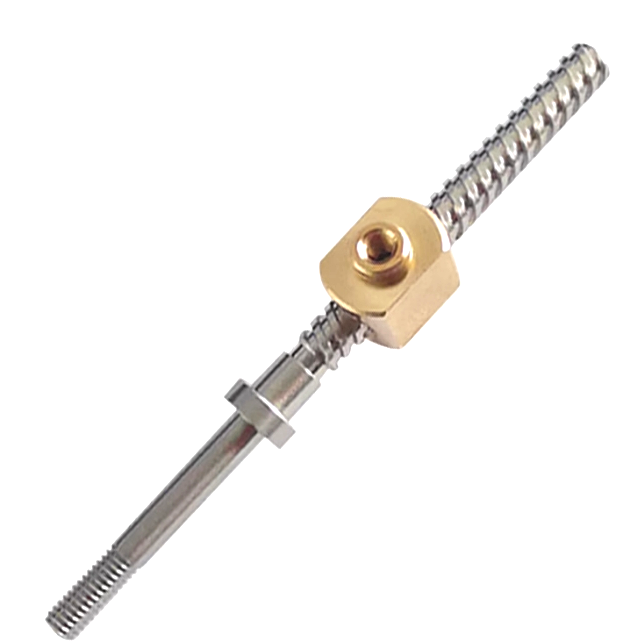

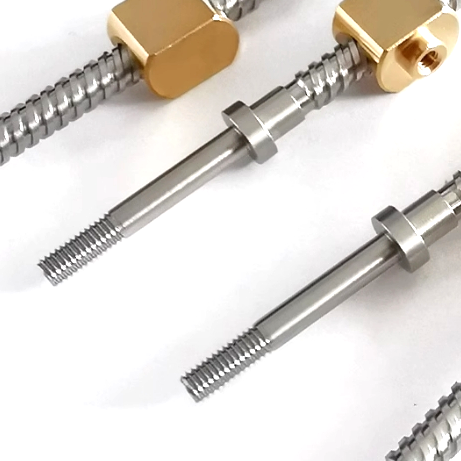

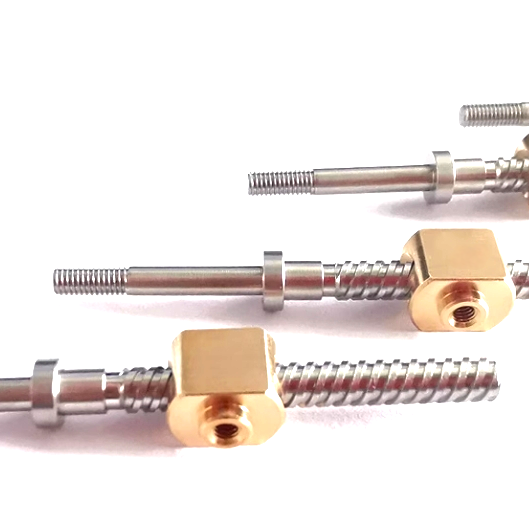

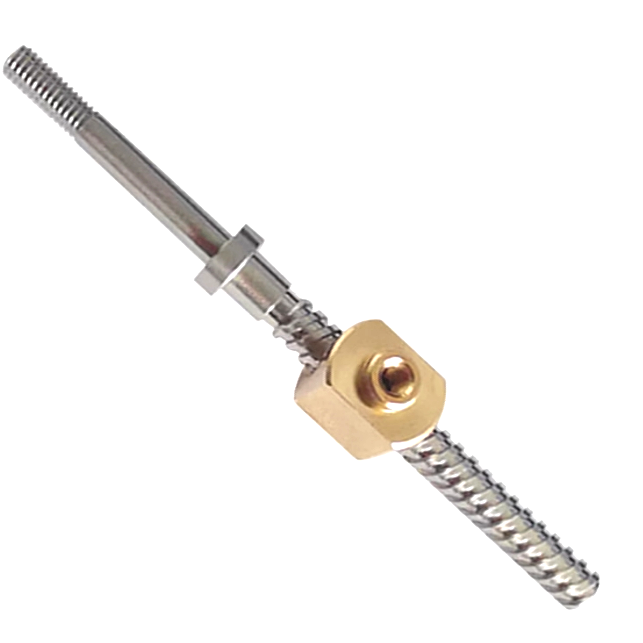

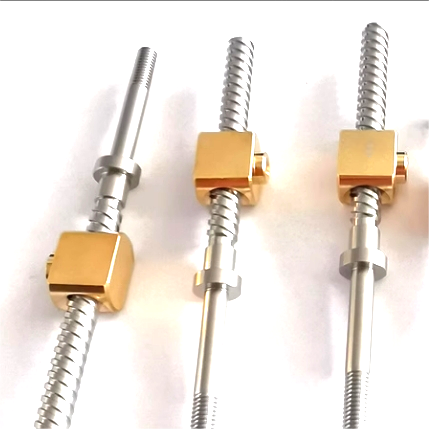

Tr12x24 Dia 12mm Lead 24mm Lead Screw And Nut
Tr12x24 lead screw and nut set features a robust trapezoidal thread design with a 12mm diameter and an exceptionally large 24mm lead,engineered to deliver rapid linear motion and high-speed performance.
Diamter | 12mm |
Lead | 24mm |
Pitch | 3mm |
| Number of starts | 8 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your 12x24 trapezoid screw and nut!
