Available Screw Materials:C45,SS303,SS304,SS316,SS316L,aluminum,40Cr
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,C45,PA66,PTFE,PPS,SS304,SS316,SS316L,aluminum
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating
Customized Service:Tr4x2 lead screw and nut will be produced according to your requirements or drawings

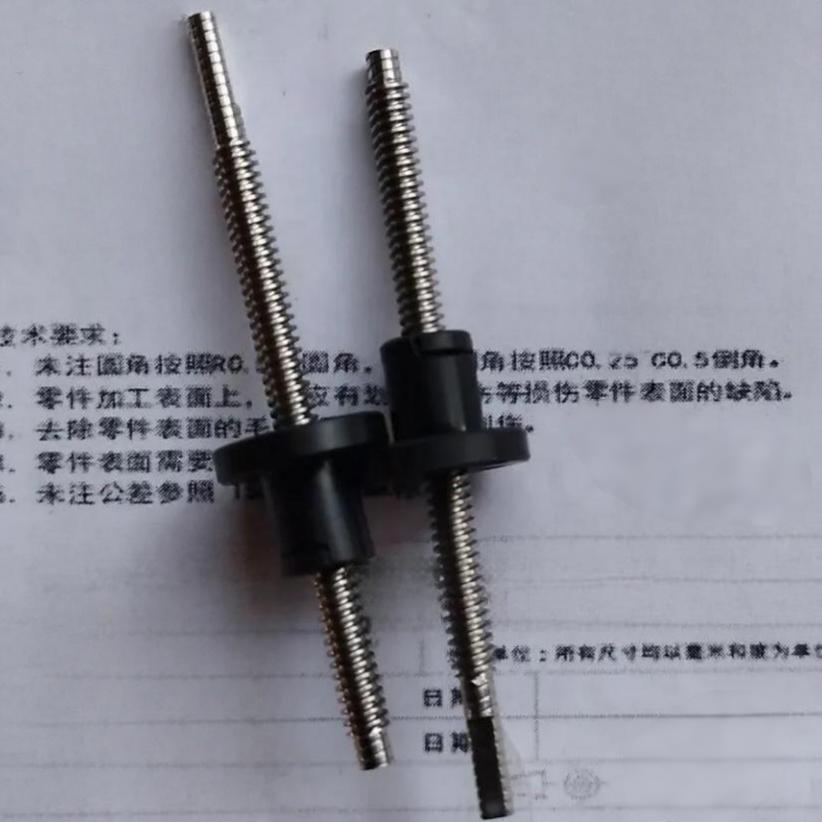

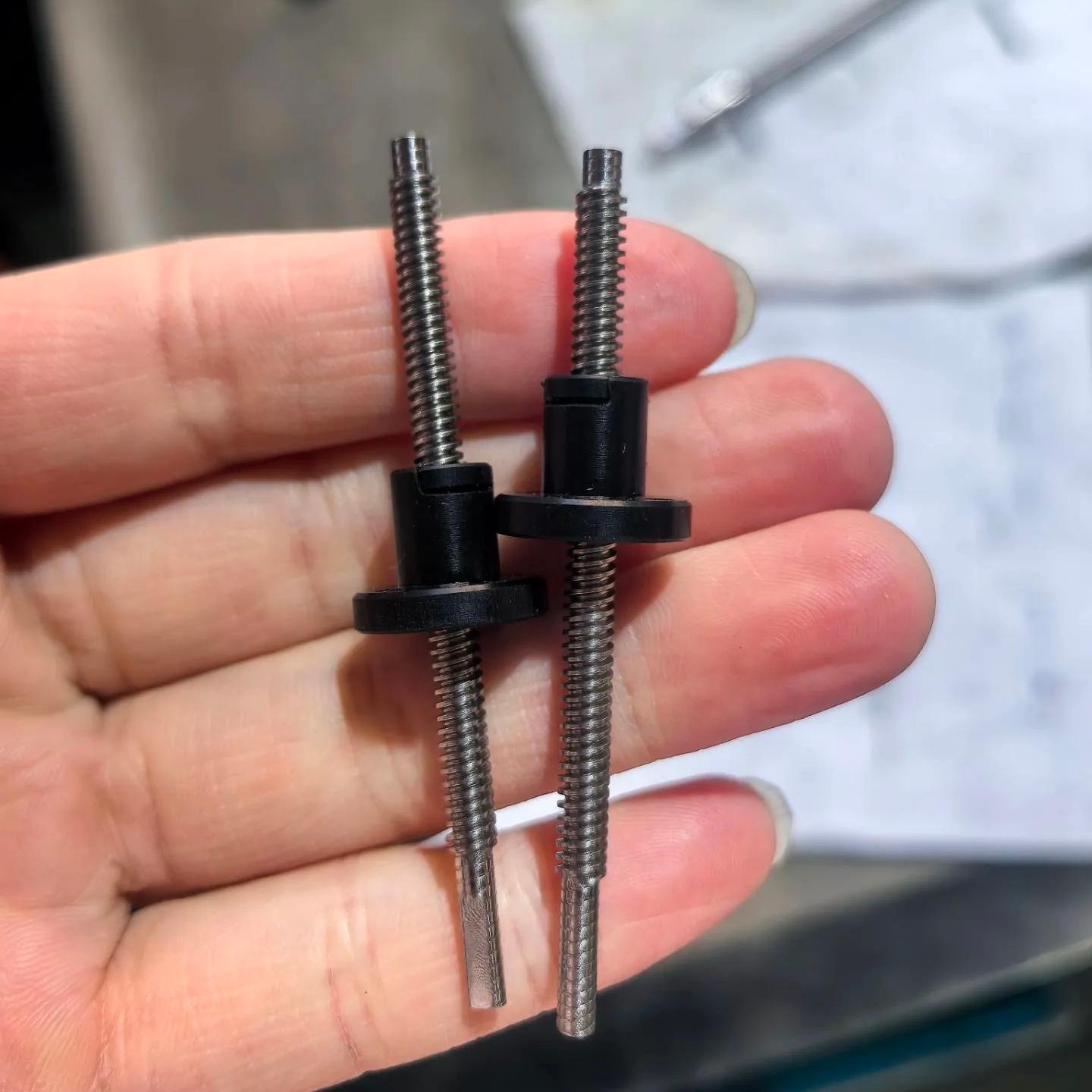

This Tr4x2 ultra-compact trapezoidal lead screw is engineered for critical micro-positioning applications,featuring a 4mm outer diameter and a 2mm lead.The lead screw is precision-machined from stainless steel for strength and corrosion resistance.It is paired with a specialized acetal flange anti-backlash nut,which mechanically eliminates axial clearance to provide exceptional positional accuracy,repeatability,and smooth,low-friction operation.
Both lead screws and nuts are fully customizable.We offer a 1-piece MOQ,competitive pricing,and a lead time of 7-12 days.
T4x2 Lead Screw and Nut Specification:
Diameter | 4mm |
Lead | 2mm |
Pitch | 1mm |
| Number of starts | 2 |
Available thread direction | RH/LH/RL |
Available screw materials | C45/ SS303/SS304/SS316/SS316L/aluminum/40Cr |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/PA66/PTFE/PPS/Stainless steel/C45 |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating |
Tr4x2 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T4x2 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in lead screws,all products are 100% tested for quality before shipping.
Diameter 4mm Lead 2mm Lead Screw Assembly Applications:
Optical & Photonic Systems:Precision alignment of fibers,lenses,and lasers in telecommunications and sensing equipment.
Medical & Diagnostic Devices:Actuators in imaging systems,micro-sampling mechanisms,and surgical tool positioning.
Semiconductor & Metrology Equipment:Sample stage drives and probe positioning for measurement and inspection.
High-Fidelity 3D Printing & Robotics:Extruder control in high-resolution printing and precise joint actuation in miniature robotic arms.
LMT Lead Screw factory
