0802
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| This product shows the models we can produce. Ball screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension will be customized according to your requirements or drawing. Customized product MOQ: 1pc Customized product lead time:10~ 15days | |||||||||

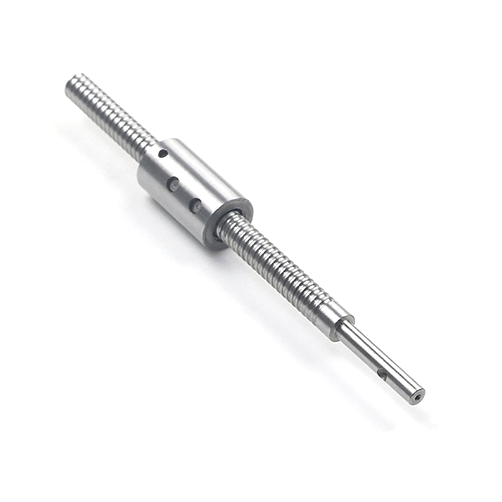

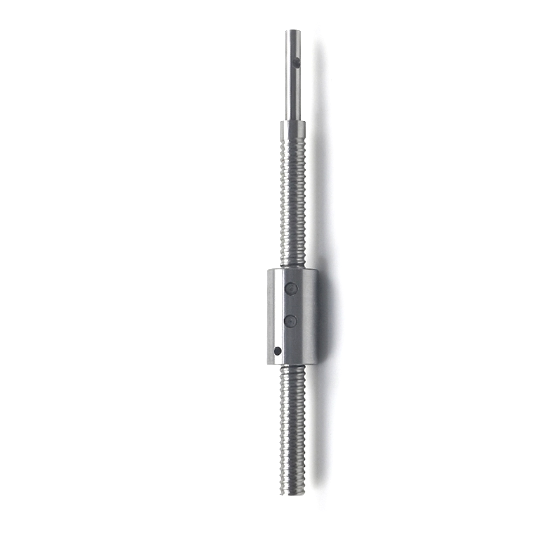

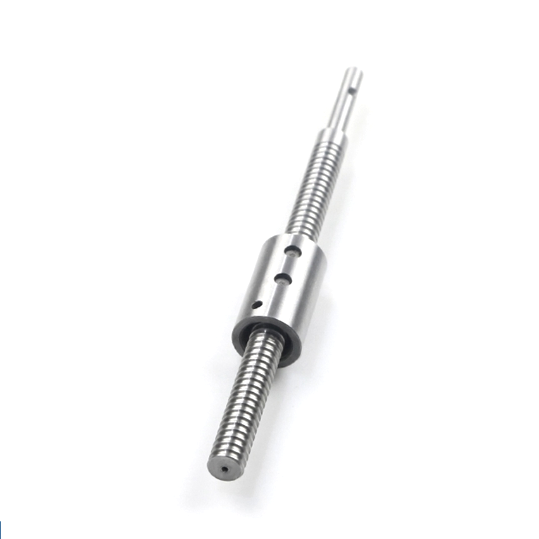

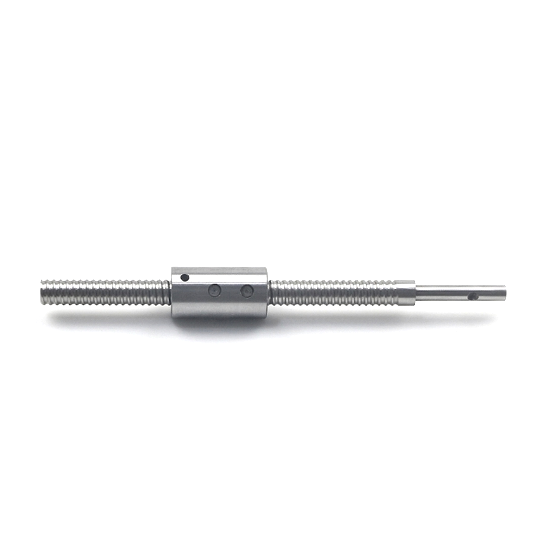

0802 Diameter 8mm Pitch 2mm Ball Screw
This ground ball screw diameter is 8mm,pitch 2mm,this ball screw adopts grinding processing technology and is available in C3 and C5 accuracy grades.
Diamter | 8mm |
Lead | 2mm |
| Pitch | 2mm |
| Accuracy grade | C3/C5 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/stainless steel |
Popular surface coatings | Nickel plated/Black chorme plated/Molybdenum disulfide/DLC coating. |
Contact our sales to customize your ball screw!
