Available Materials:Bearing steel GCr15,Stainless steel 9Cr18
Customized Service:1002 Ball screw and ball nut will be produced according to your requirements or drawings
1002

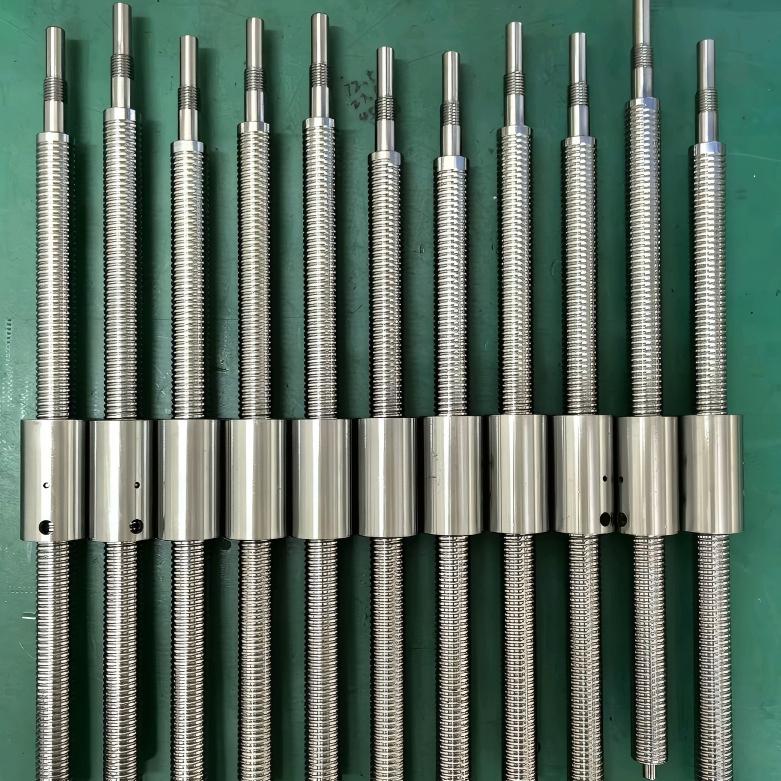

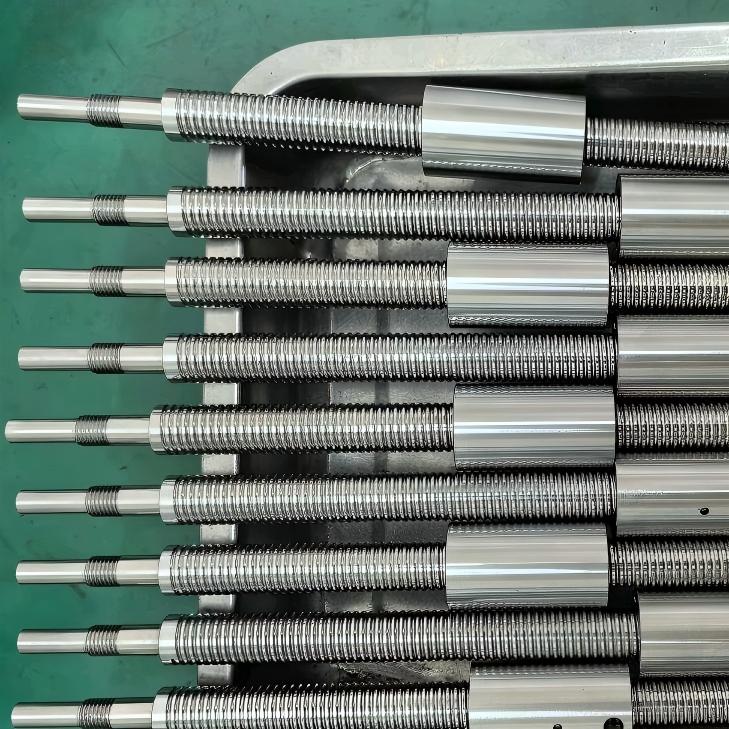

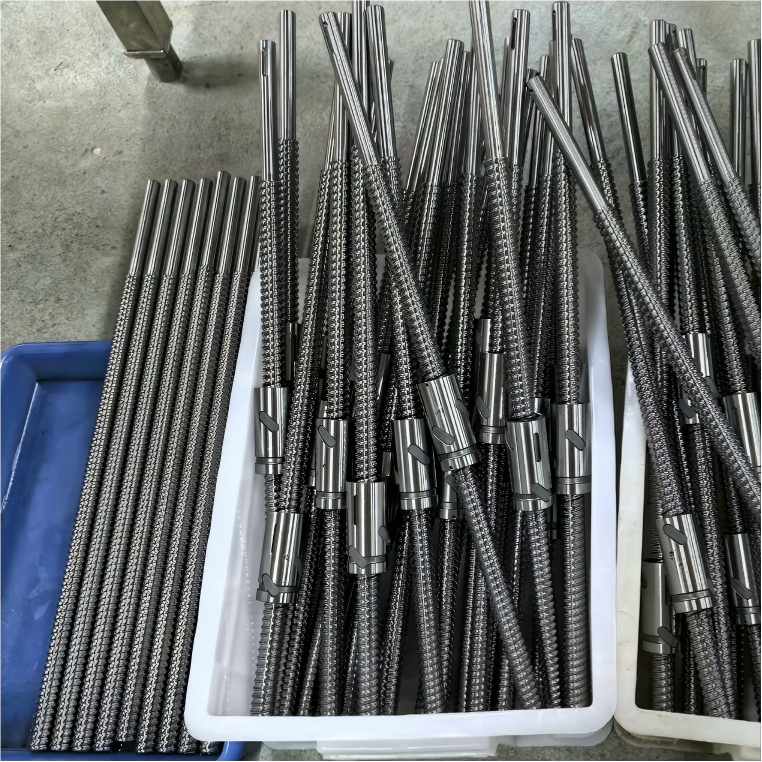

This 1002 ball screw assembly features a 10mm diameter with a 2mm lead,precision-machined from high-quality bearing steel and heat-treated for exceptional hardness and wear resistance.It is equipped with a sleeve-type single nut,offering a compact footprint,smooth motion,and minimal backlash.Available in accuracy grades C3, C5,and C7,with full customization of length and shaft end configurations.

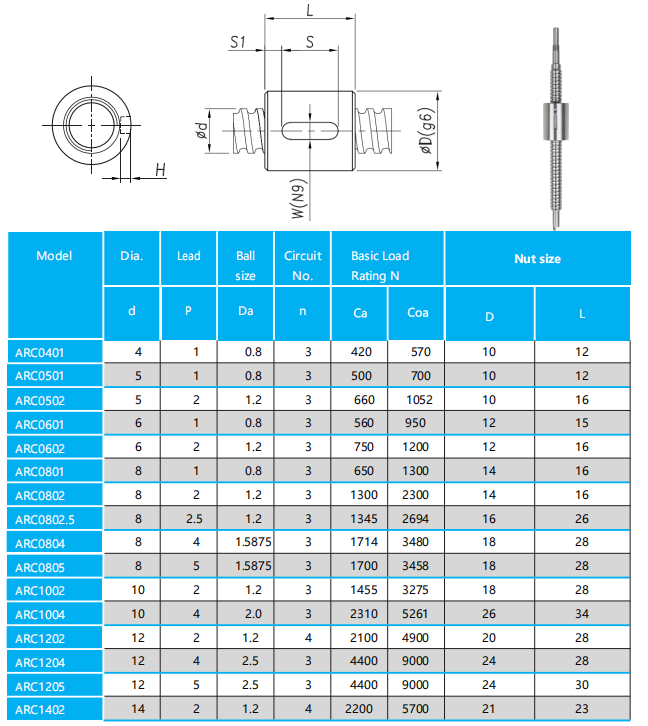

Diameter | 10mm |
Lead | 2mm |
| Pitch | 2mm |
| Accuracy grade | C3 C5 C7 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/9Cr18 |
MOQ: 1 pc.
Fast Delivery:7~25 days.
Cost-effective:15% ~40% cost savings.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The ball screw and ball nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in ball screws,all products are 100% tested for quality before shipping.
Medical and laboratory automation
3D printers and CNC equipment
Optical alignment and semiconductor handling
Compact robotics and precision positioning systems
