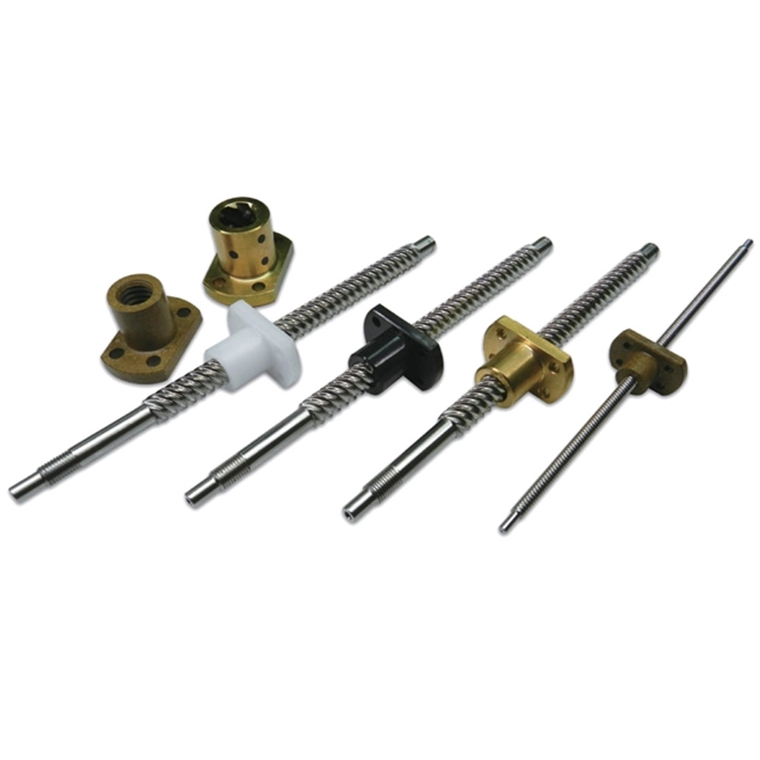

1/4''-16 Acme Lead Screws And Nuts

This product shows the models we can produce.
Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing.
Customized product MOQ: 1pc
Customized product lead time: 10~15days




  • 1/4''-16

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1/4''-16 Acme Lead Screws And Nuts

This ACME screw diameter is 1/4 in, lead is 0.25 in,pitch is 0.0625 in,the screw and nut will be produced according to your needs.


Diamter

 1/4''

Lead

 0.25 in
Pitch 0.0625 in
Number of starts 4

Screw shaft end machining and length

According to your requirement or drawing

Nut shape and dimension

Be customized according to your needs

Thread Direction

Right hand/left hand

Screw material

S45C/ SS303/SS304/SS316

Nut material

Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C

Popular surface coatings

Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

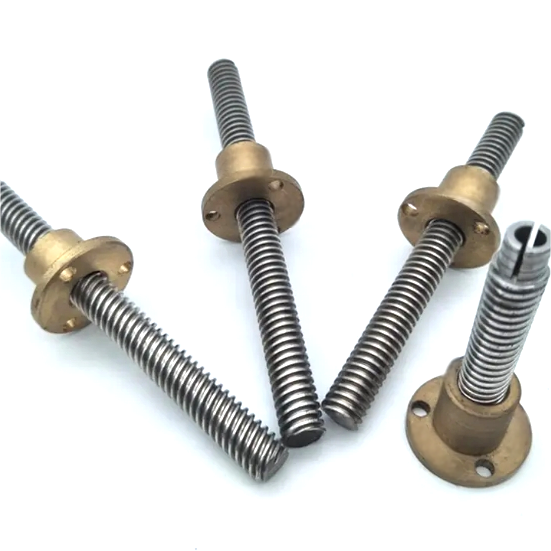

1-4-16 Acme Lead Screws

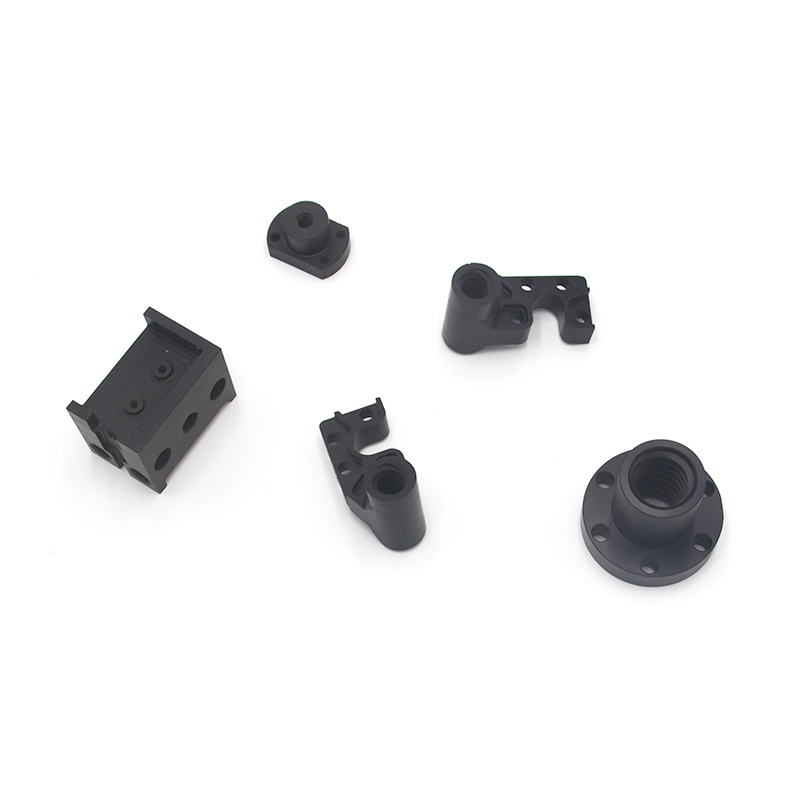

1-4-16 Acme Lead Nuts

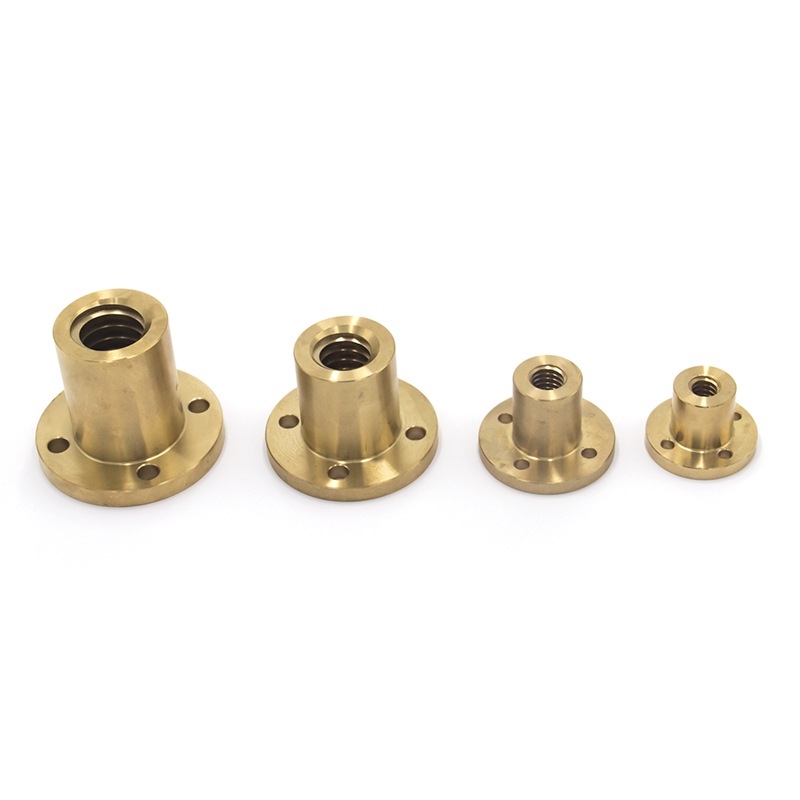

1-4-16 Acme Lead Screws Nuts

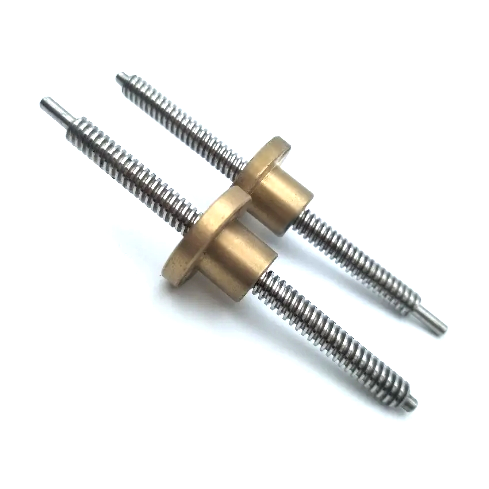

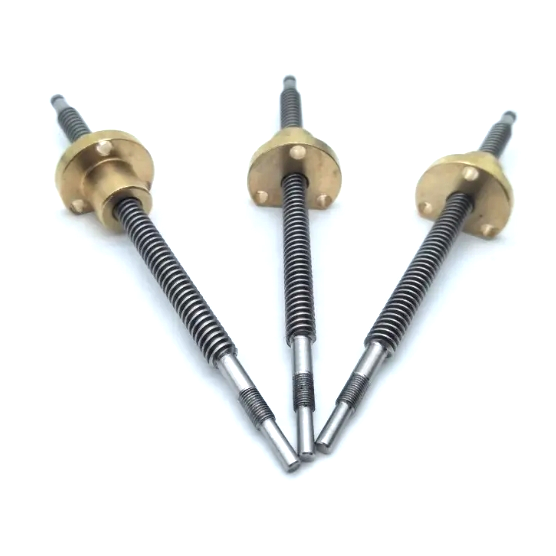

1-4-16 Acme Lead Screws And Nuts



Contact our sales to customize your ACME screw and nut!
