Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40Cr,titanium alloy
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304,aluminum
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating/Nitriding treatment
Customized Service:Tr9.525x3.175 lead screw and nut will be produced according to your requirements or drawings

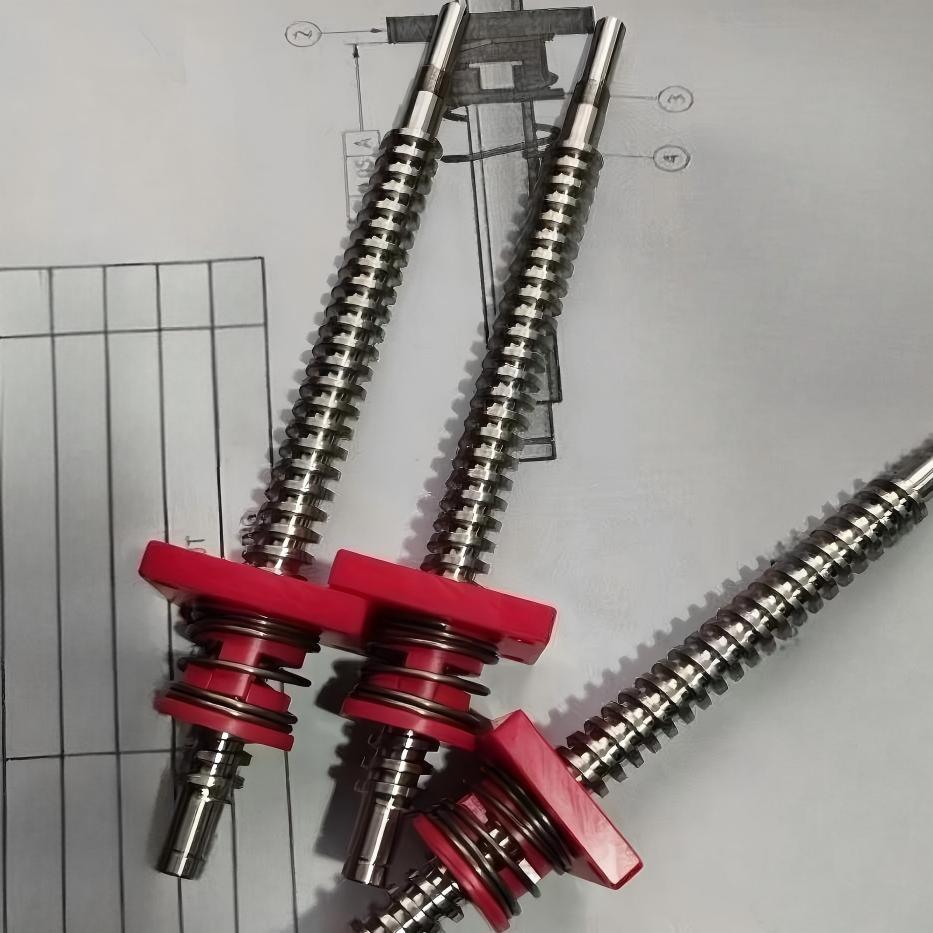

The Tr9.525x3.175 ACME lead screw,with a 9.525mm diameter and 3.175mm lead,is manufactured from durable SUS304 stainless steel and paired with an anti-backlash nut.This lead screw assembly is engineered to deliver precise positional control,minimal axial play, and reliable motion transfer in automated systems.
Tr9.525x3.175 Lead Screw and Nut Specification:
Diameter | 9.525mm |
Lead | 3.175mm |
Pitch | 3.175mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr/titanium alloy |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating/Nitriding treatment |
T9.525x3.175 ACME Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T9.525x3.175 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in lead screws,all products are 100% tested for quality before shipping.
A9.525x3.175 ACME Screw Assembly Applications:
The combination of a larger lead for rapid travel and the anti-backlash nut in the T9.525x3.175 ACME screw makes it particularly suitable for applications requiring both speed and precision.Typical uses include high-speed scanning systems,automated optical instruments,precision measuring equipment,and sophisticated 3D printers where consistent performance and repeatability are critical.
LMT Lead Screw Factory
The Tr9.525x3.175 ACME lead screw,with a 9.525mm diameter and 3.175mm lead,is manufactured from durable SUS304 stainless steel and paired with an anti-backlash nut.This lead screw assembly is engineered to deliver precise positional control,minimal axial play, and reliable motion transfer in automated systems.
Tr9.525x3.175 Lead Screw and Nut Specification:
Diameter | 9.525mm |
Lead | 3.175mm |
Pitch | 3.175mm |
| Number of starts | 1 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr/titanium alloy |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating/Nitriding treatment |
T9.525x3.175 ACME Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T9.525x3.175 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in lead screws,all products are 100% tested for quality before shipping.
A9.525x3.175 ACME Screw Assembly Applications:
The combination of a larger lead for rapid travel and the anti-backlash nut in the T9.525x3.175 ACME screw makes it particularly suitable for applications requiring both speed and precision.Typical uses include high-speed scanning systems,automated optical instruments,precision measuring equipment,and sophisticated 3D printers where consistent performance and repeatability are critical.
LMT Lead Screw Factory
