1/4''-8

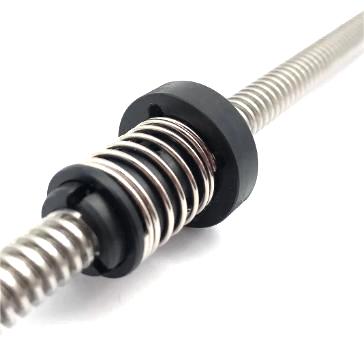

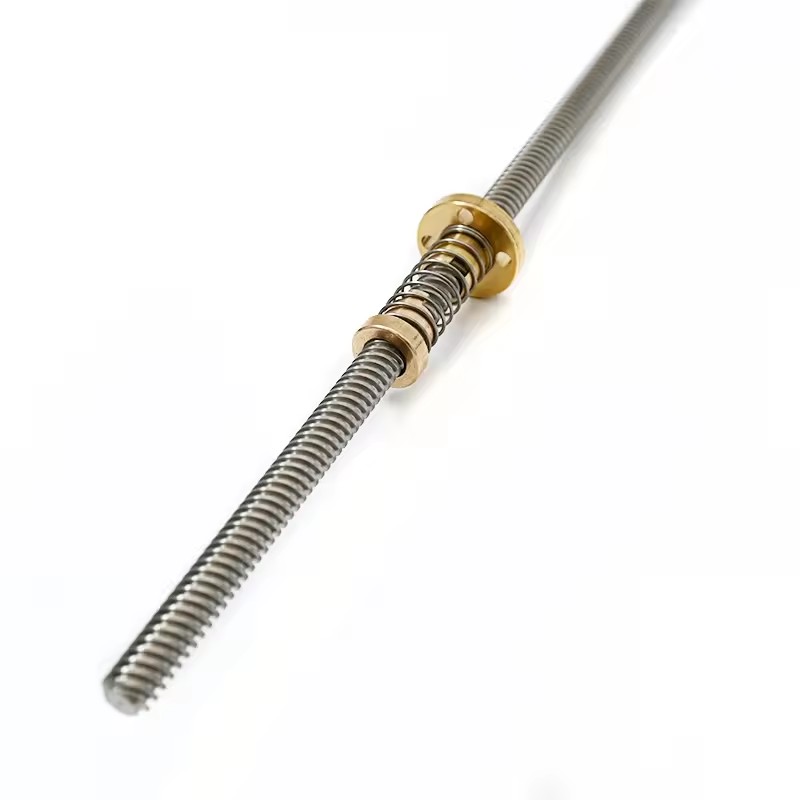

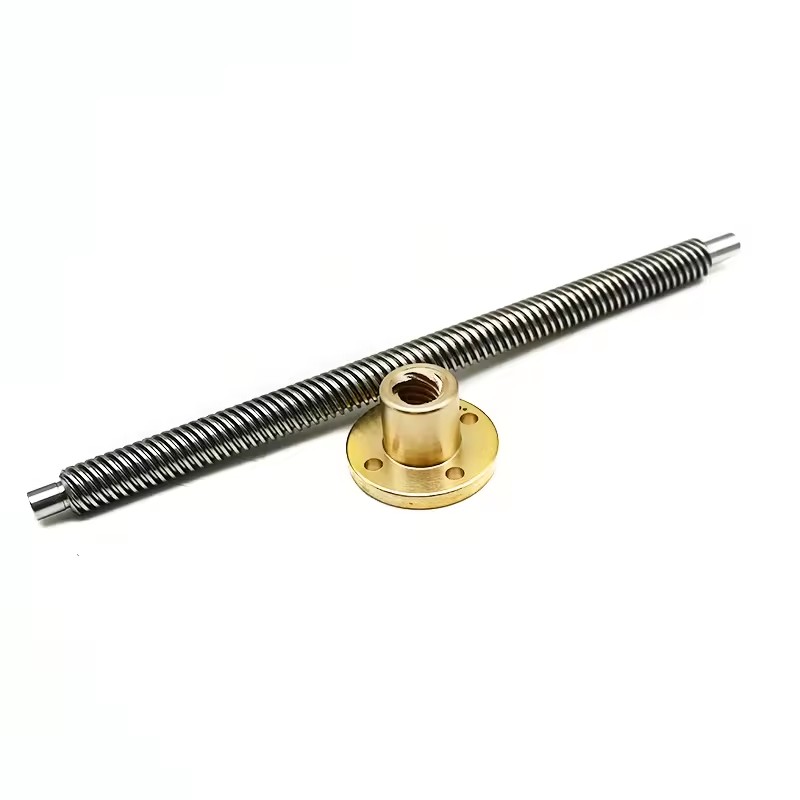

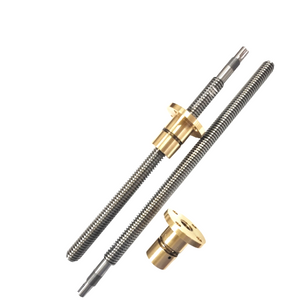

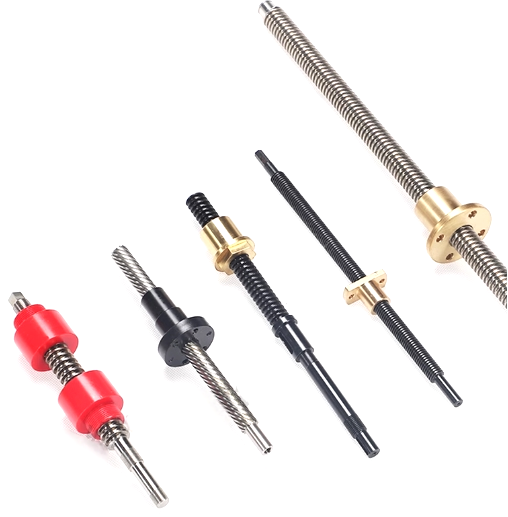

1/4''-8 High Speed Precision Acme Screws And Nut
The lead screw adopts a large lead ACME thread with a diameter of 1/4 inch,a lead of 1 inch (25.4mm),and a pitch of 0.125 inches (3.175mm).The single-turn feed rate of the 1/4''-8 screw is significantly improved,which can greatly shorten the transmission cycle and achieve fast linear motion.
Diamter | 0.25 in |
Lead | 1 in |
| Pitch | 0.125 in |
| Number of starts | 8 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your 0.25''-8 ACME screw and nut!

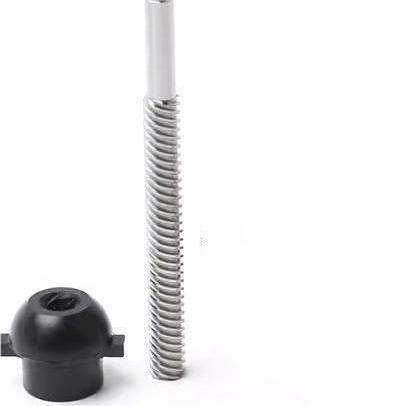

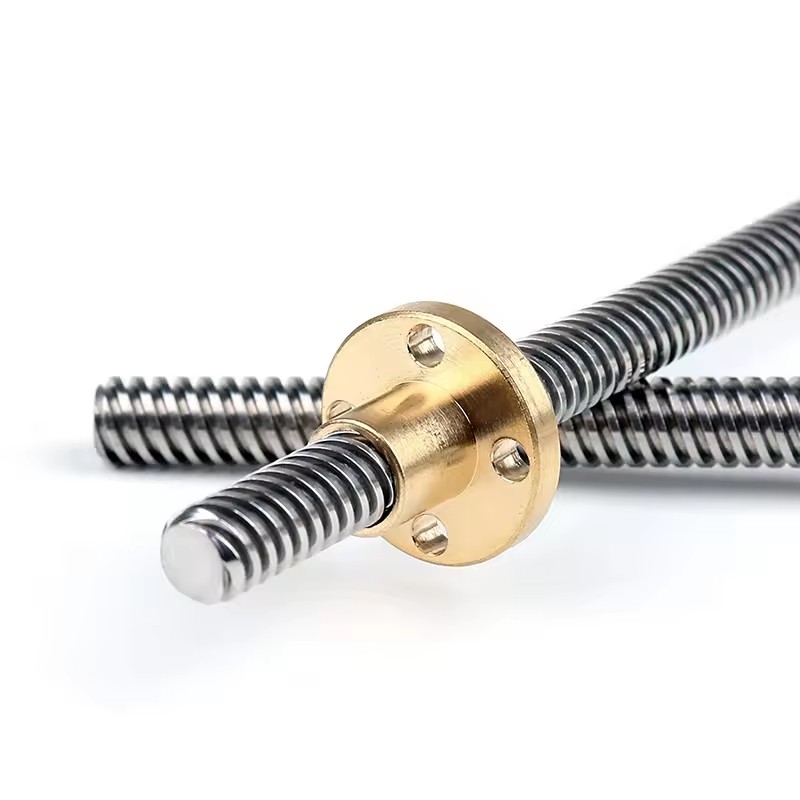

1/4''-8 High Speed Precision Acme Screws And Nut
The lead screw adopts a large lead ACME thread with a diameter of 1/4 inch,a lead of 1 inch (25.4mm),and a pitch of 0.125 inches (3.175mm).The single-turn feed rate of the 1/4''-8 screw is significantly improved,which can greatly shorten the transmission cycle and achieve fast linear motion.
Diamter | 0.25 in |
Lead | 1 in |
| Pitch | 0.125 in |
| Number of starts | 8 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your 0.25''-8 ACME screw and nut!
