10mm Diameter Trapezoidal Lead Screws

LMT offers high-precision trapezoidal lead screw and nut assemblies engineered specifically for advanced motion control applications. Our 10mm diameter solutions combine innovative engineering with customizable configurations to meet diverse industrial requirements.

T10 Trapezoidal Lead Screw Available Models
The following models are commonly available 10mm diameter lead screw types on the market. For other models not listed here, please consult our sales team.

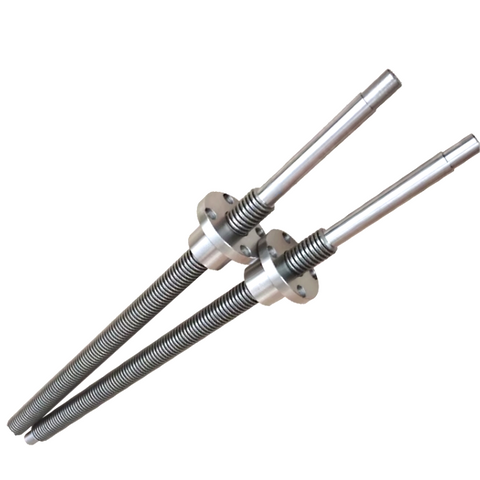

Tr10x0.5 lead screw: diameter 10mm,lead 0.5mm,pitch 0.5mm.

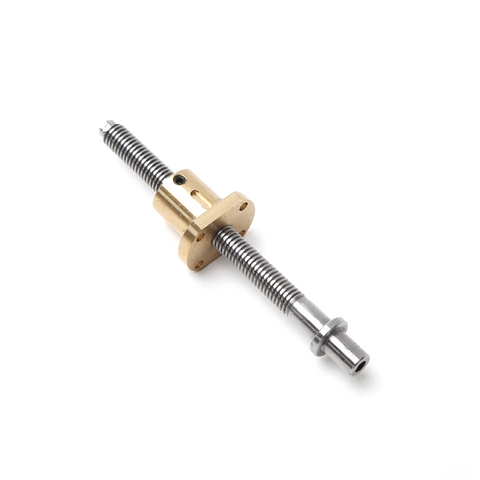

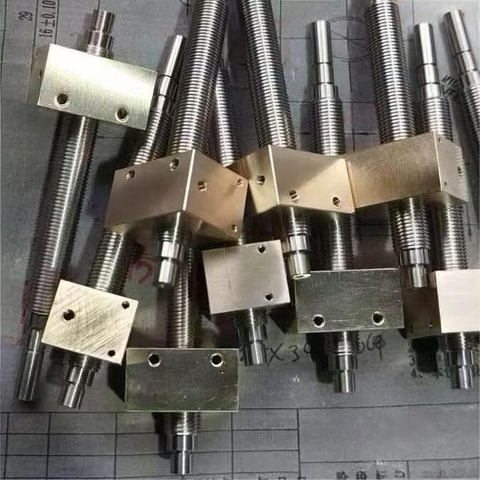

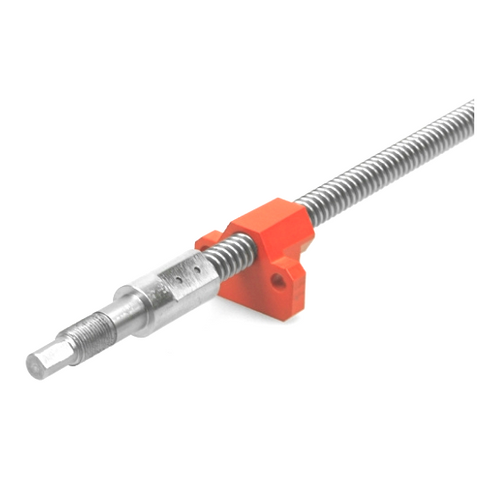

Tr10x1 lead screw: diameter 10mm,lead 1mm,pitch 1mm.

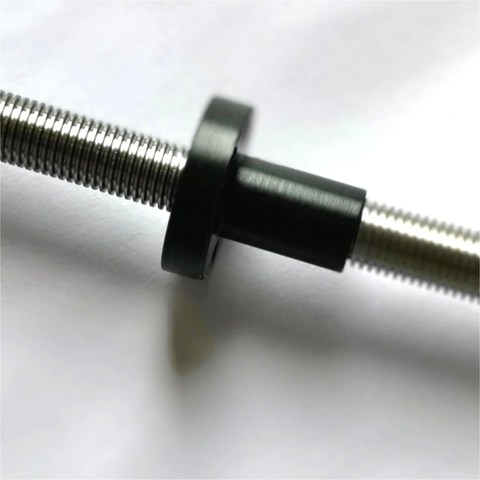

Tr10x1.5 lead screw: diameter 10mm,lead 1.5mm,pitch 1.5mm.

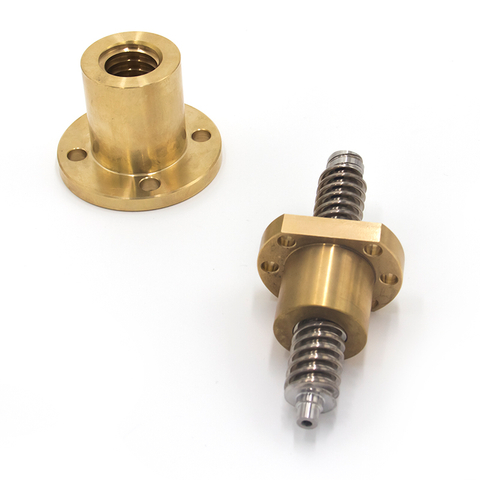

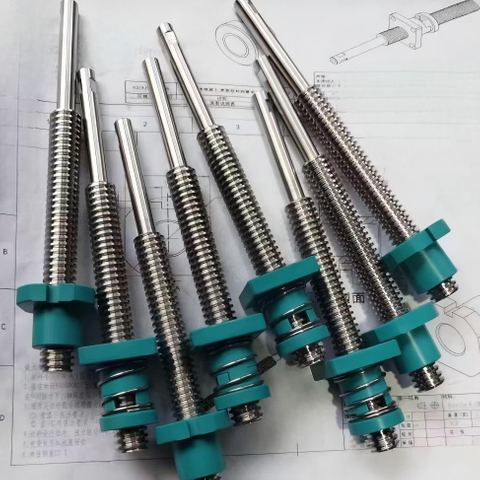

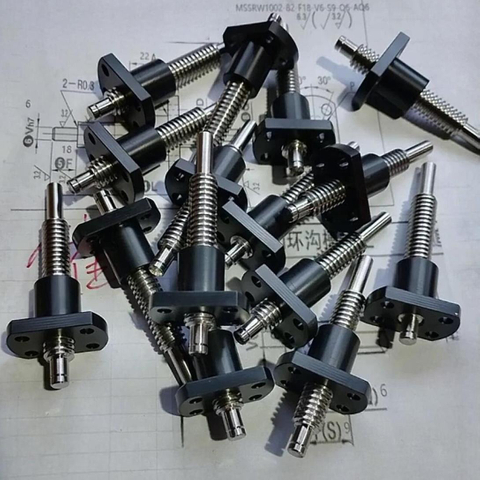

Tr10x2 lead screw:diameter 10mm,lead 2mm,pitch 2mm.

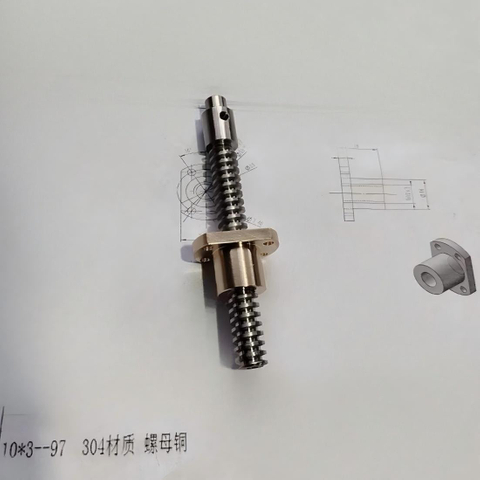

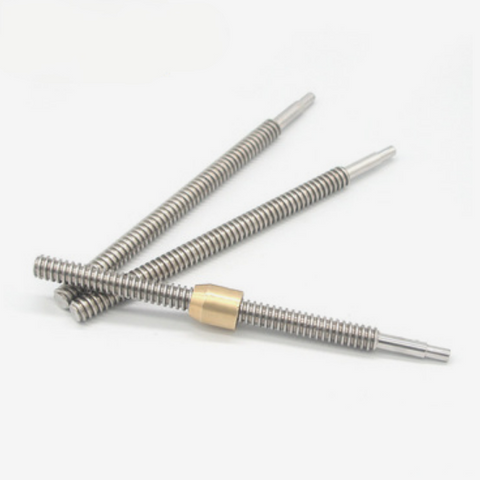

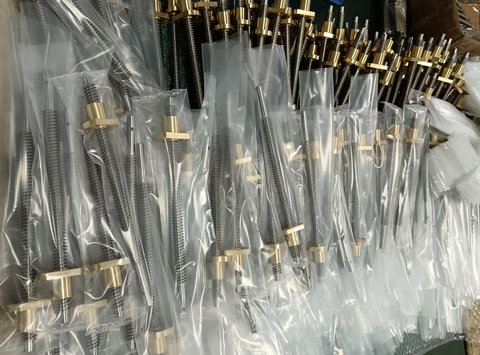

Tr10x3 lead screw: diameter 10mm,lead 3mm,pitch 1.5mm.

Tr10x4 lead screw: diameter 10mm,lead 4mm,pitch 2mm.

Tr10x5 lead screw: diameter 10mm,lead 5mm,pitch 2.5mm.

Tr10x5.4 lead screw: diameter 10mm,lead 5.4mm,pitch 1.8mm.

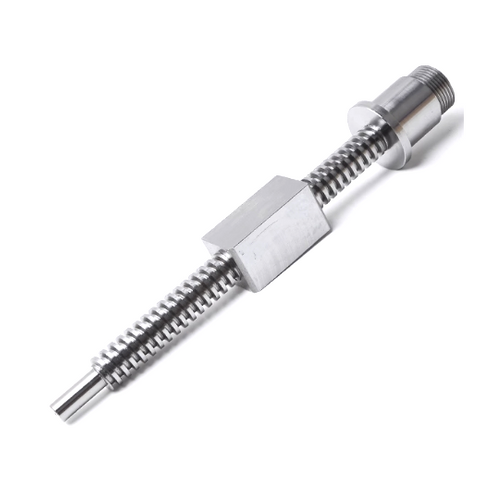

Tr10x6 lead screw:diameter 10mm,lead 6mm,pitch 3mm.

Tr10x6 lead screw:diameter 10mm,lead 6mm,pitch 1.5mm.

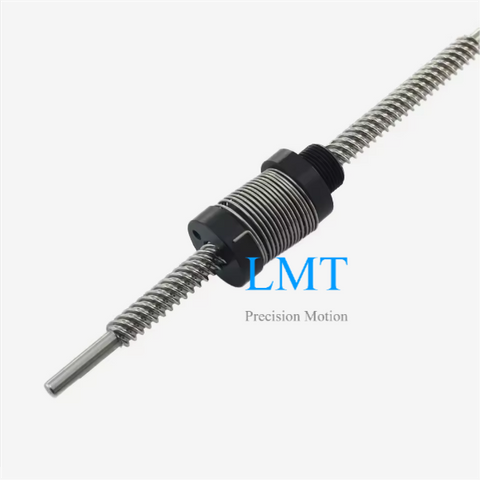

Tr10x8 lead screw: diameter 10mm,lead 8mm,pitch 2mm.

Tr10x9 lead screw: diameter 10mm,lead 9mm,pitch 1.5mm.
T10x10 lead screw:diameter 10mm,lead 10mm,pitch 1.666mm.

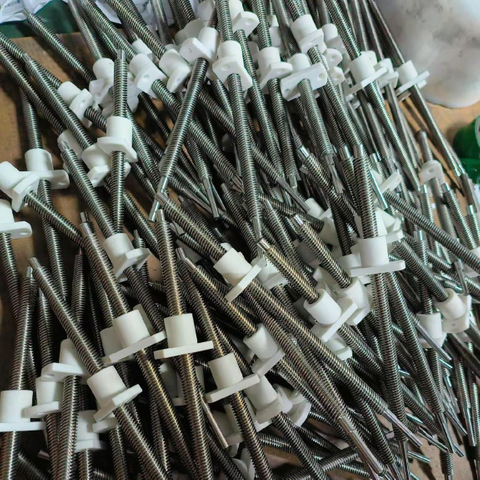

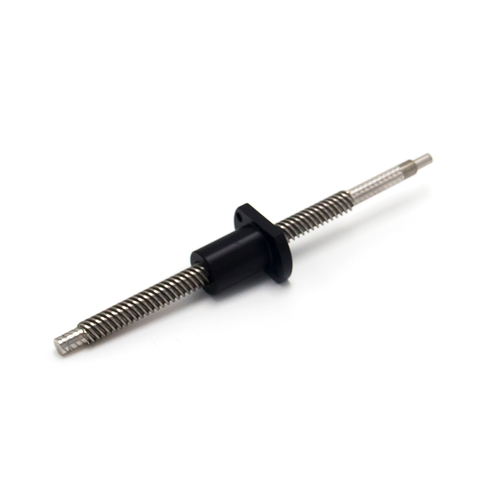

Tr10x10 lead screw:diameter 10mm,lead 10mm,pitch 2mm.

Tr10x10 lead screw:diameter 10mm,lead 10mm,pitch 2.5mm.

Tr10x10 lead screw:diameter 10mm,lead 10mm,pitch 1.25mm.

T10x12 lead screw: diameter 10mm,lead 12mm,pitch 1.5mm.

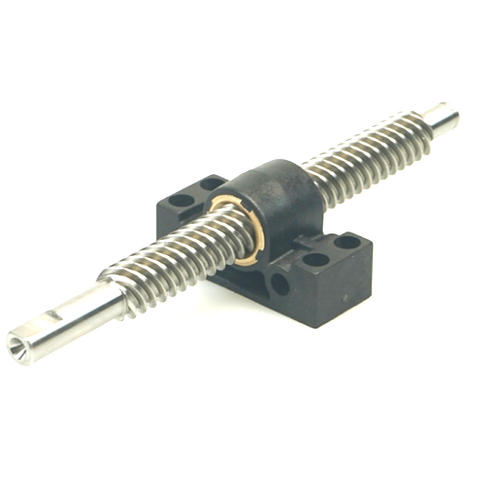

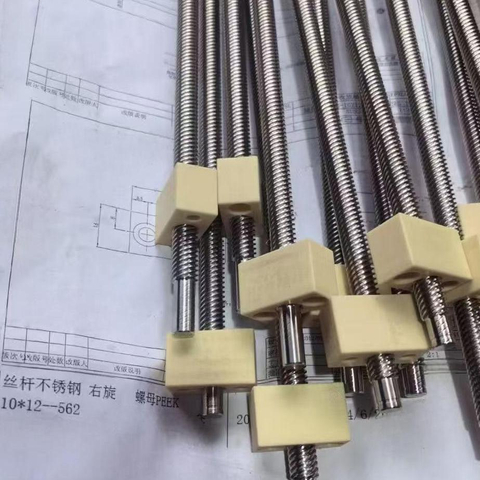

Tr10x12 lead screw: diameter 10mm,lead 12mm,pitch 2mm.

Tr10x12.5 lead screw: diameter 10mm,lead 12.5mm,pitch 2.5mm.

T10x14 lead screw:diameter 10mm,lead 14mm,pitch 1.2728mm.

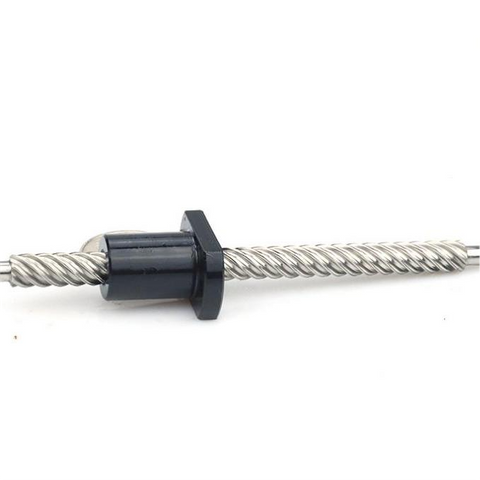

Tr10x14 lead screw:diameter 10mm,lead 14mm,pitch 2mm.

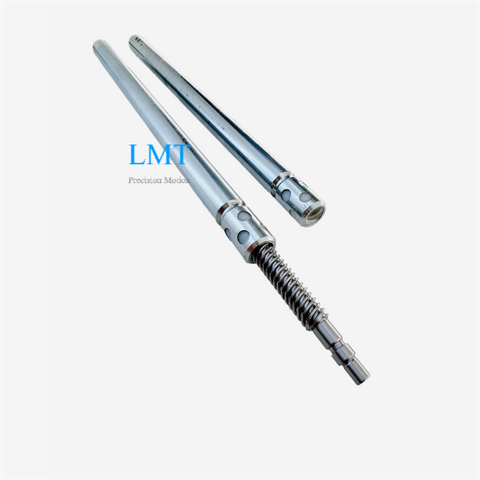

Tr10x15 lead screw:diameter 10mm,lead 14mm,pitch 3mm.
Tr10x16.2 lead screw: diameter 10mm,lead 16.2mm,pitch 1.8mm.

T10x20 lead screw:diameter 10mm,lead 20mm,pitch 3.333mm.

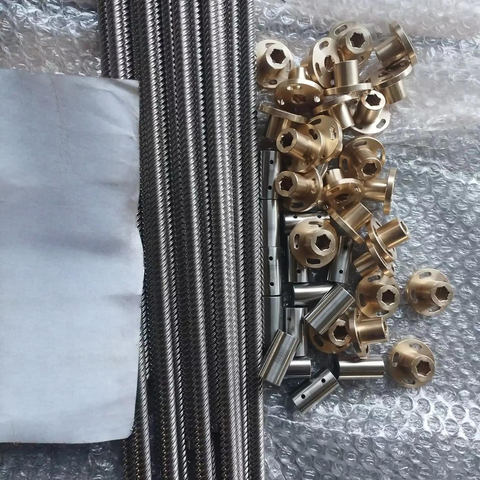

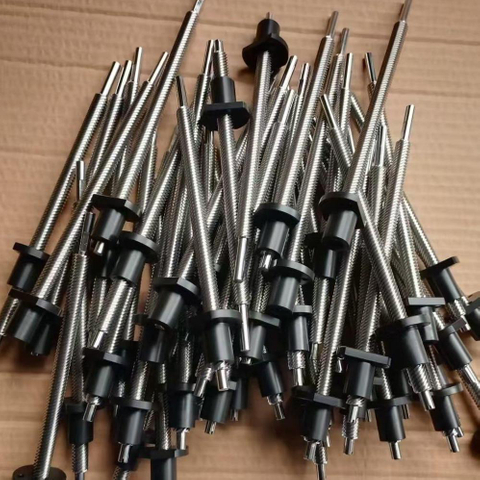

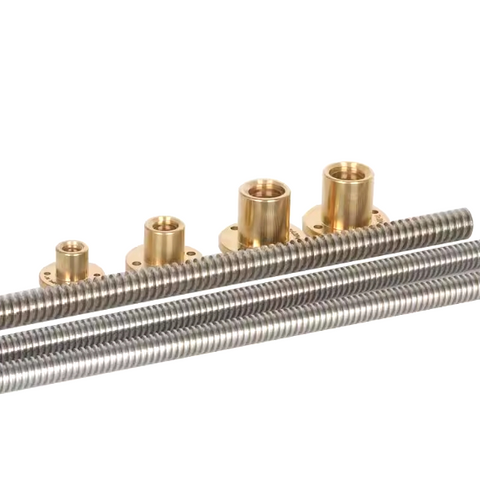

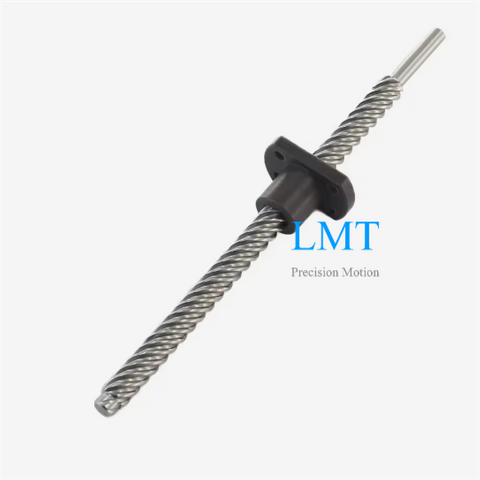

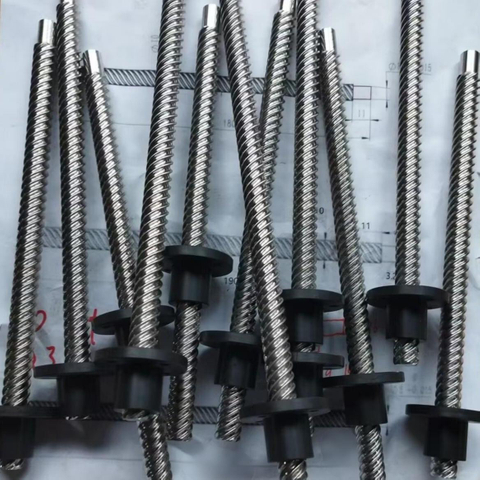

Tr10x20 lead screw:diameter 10mm,lead 20mm,pitch 4mm.

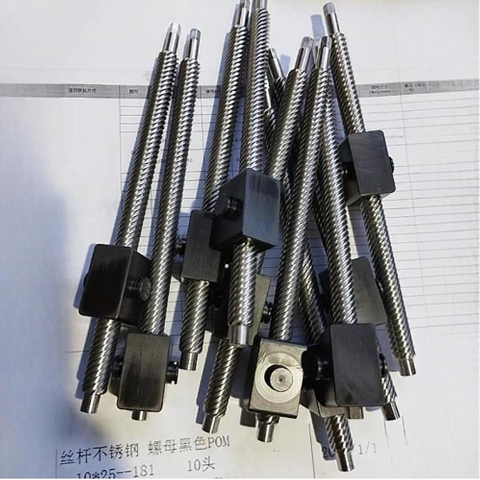

T10x25 lead screw: diameter 10mm,lead 25mm,pitch 2.5mm.

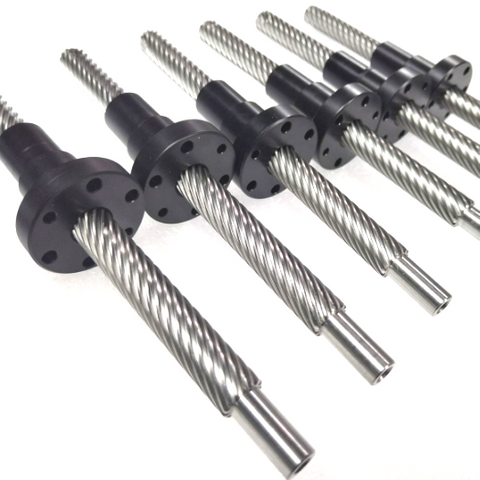

Tr10x25 lead screw: diameter 10mm,lead 25mm,pitch 3.125mm.

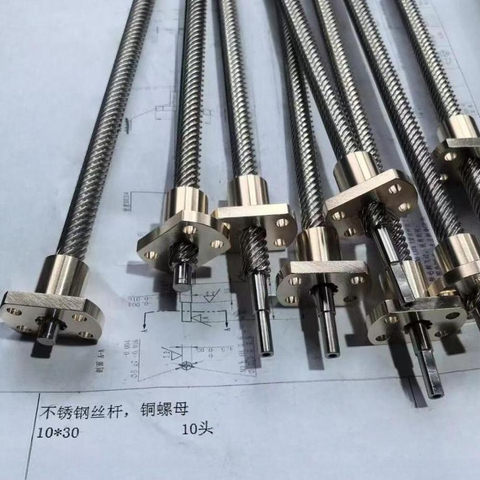

Tr10x30 lead screw:diameter 10mm,lead 30mm,pitch 5mm.
Tr10x35 lead screw:diameter 10mm,lead 35mm,pitch 1.25mm.

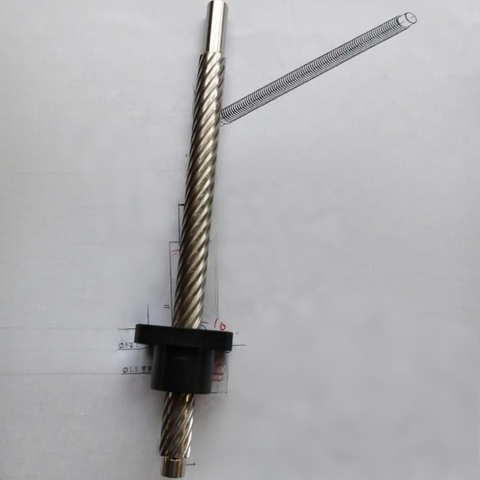

Tr10x50 lead screw:diameter 10mm,lead 50mm,pitch 5mm.

10mm Diameter Trapezoidal Lead Screw Specification
Diameter: 10mm
Lead screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating

10mm Diameter Trapezoidal Lead Screw Advantages
MOQ：one pc.
Fast delivery：within 12days.
Cost-effective: Helps your project save 20% to 50% in cost.
Conform to international standards:All Tr10 lead screws and nuts comply with ROHS and CE standards.
Support customization: T10 Lead screws and nuts can be customized according to your requirements and drawings.
Unmatched Precision: Manufactured with tight tolerances to ensure smooth and accurate linear motion.
Superior Durability: Made from high-quality materials [e.g., Stainless Steel, Carbon Steel] for excellent wear resistance and long service life.
Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.

Tr10 Lead Screw Common Applications

Laboratory and Diagnostic Automation: Precisely positioning samples, reagents, and sensors in automated analyzers, liquid handling systems, and diagnostic equipment, where smooth and quiet operation is critical.
Precision Optical and Imaging Systems: Adjusting the focus, filters, or stages in microscopes, spectrometers, and other optical instruments, ensuring vibration-free and stable movement.
Office and Commercial Automation: Actuating paper feeders in high-volume printers, plotters, and scanners, as well as enabling adjustable components in ergonomic office furniture.
Robotics and Robotic Accessories: Used in smaller robotic joints, grippers, or auxiliary axes, as well as in end-of-arm tooling for precise, controlled linear movement.
Medical and Rehabilitation Devices: Providing safe and dependable linear actuation in adjustable patient beds, infusion pumps, physical therapy equipment, and diagnostic scanner tables.
Packaging and Labeling Machinery: Operating in small-format machines for tasks like controlling the movement of capping heads, label applicators, or product pushers with consistent repeatability.

Customizable 10mm Lead Screw Solutions for Specific Applications

Lead Precision & Range: Available in a broad selection of leads, from ultra-fine pitches for precise positioning to larger pitches optimized for high-speed travel.

Lead Screw Length Versatility: Manufactured in standard and custom lengths to meet the specific stroke and spatial requirements of your application.

Material Selection: Choose from a range of high-performance materials for the screw and nut to achieve the ideal balance of strength, durability, and weight.

Protective Coatings: Optional surface treatments and coatings are available to enhance corrosion resistance,reduce friction, and extend the operational lifespan in challenging environments.

End Machining Flexibility: Lead Screw shaft ends can be custom-machined to your specifications, featuring unique threading, drilling, or shaping for seamless integration with bearings, motors, and other components.

Request Your Quote Today!

LMT maintains rigorous quality standards throughout the manufacturing process. Each lead screw undergoes comprehensive inspection to ensure it meets our exacting specifications for precision, performance, and durability. Our technical team works closely with clients to develop tailored solutions that address specific application requirements

Request a Quote

15＋

With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.

Professional Engineering Team

LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.

1000+

Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

10mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
