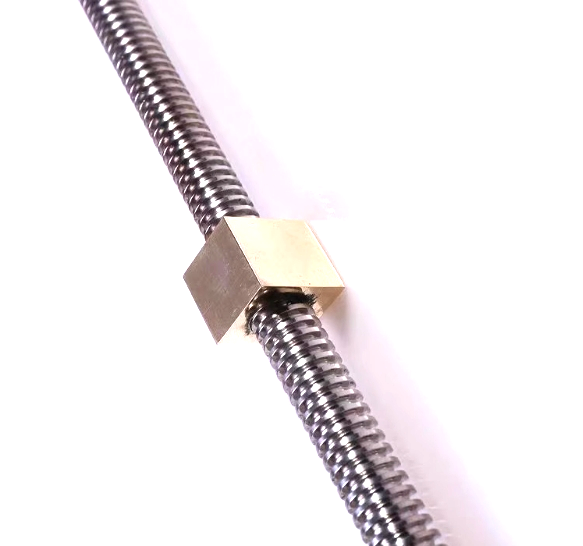

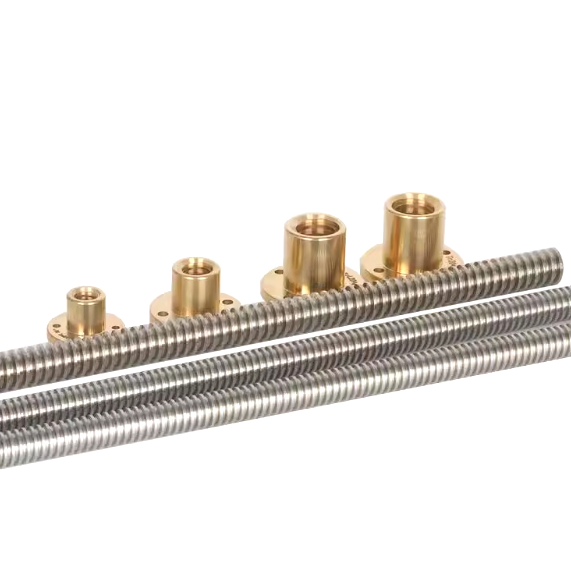

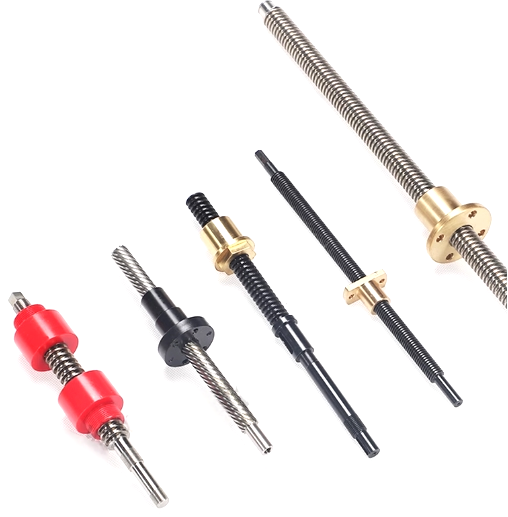

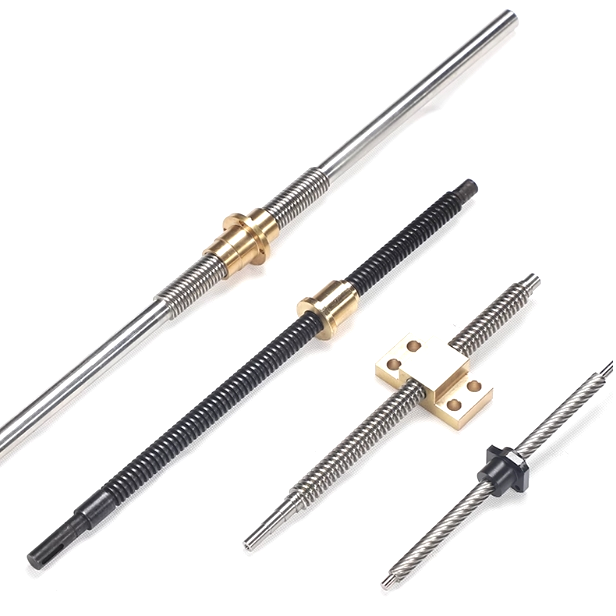

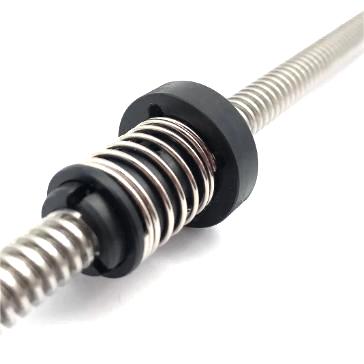

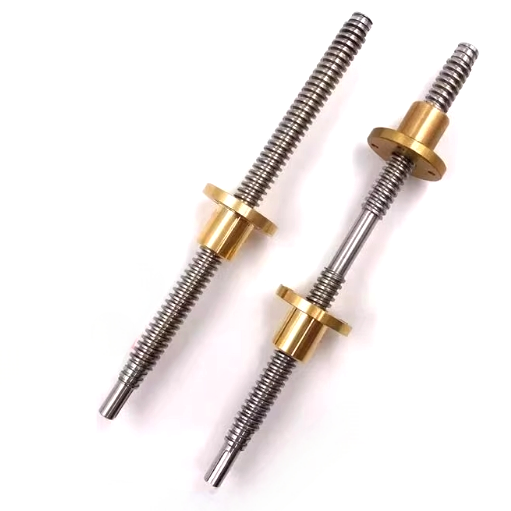

Tr10x20 Large Lead Trapezoidal Lead Screw And Nut
Model Tr10x20 indicates a trapezoidal lead screw with a nominal diameter of 10mm and a lead of 20mm.The large lead design significantly increases the single-turn stroke.Customization of T10x20 lead screws and nuts in non-standard sizes is supported.
Diamter | 10mm |
Lead | 20mm |
Pitch | 4mm |
| Number of starts | 5 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your 10x20 trapezoid screw and nut!
