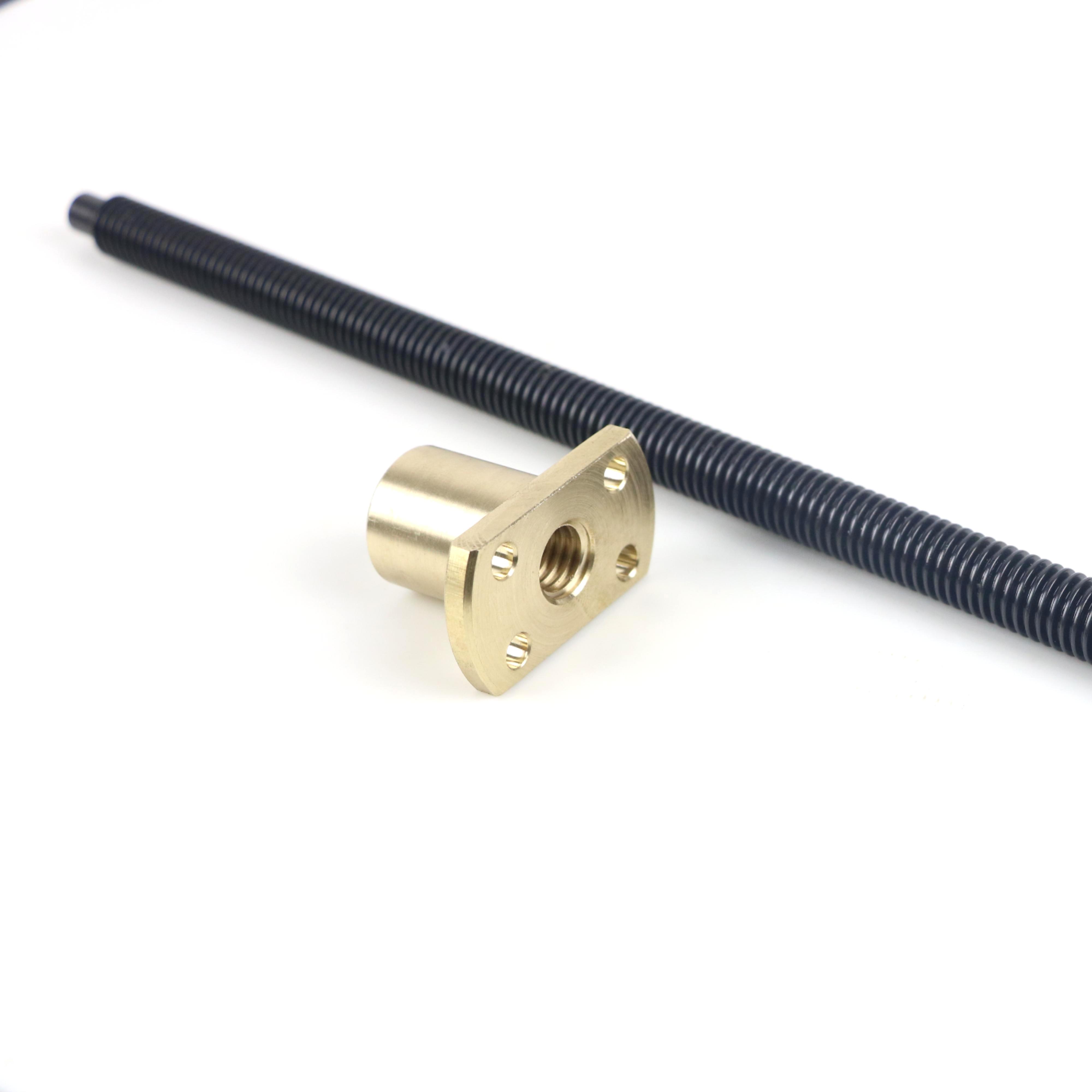

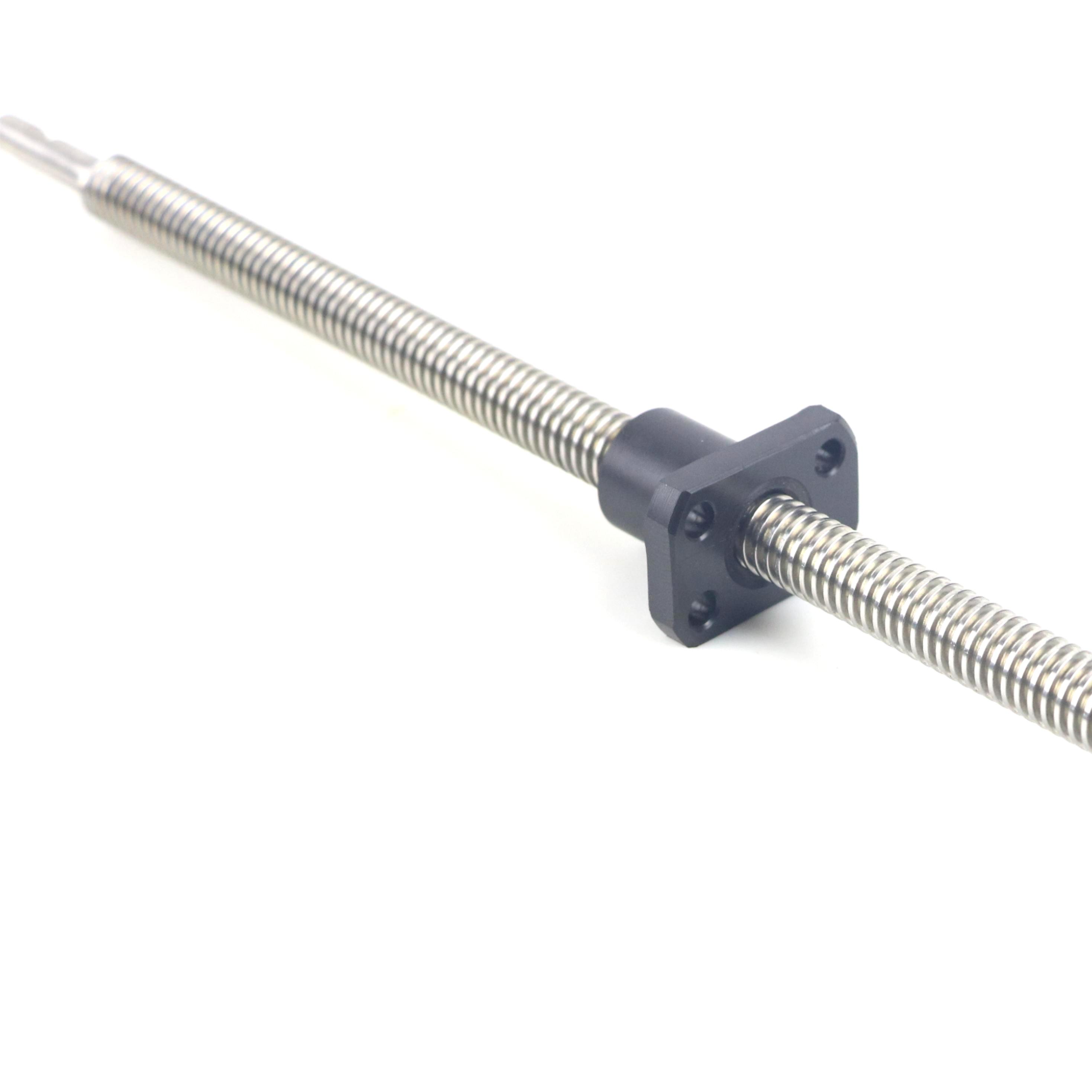

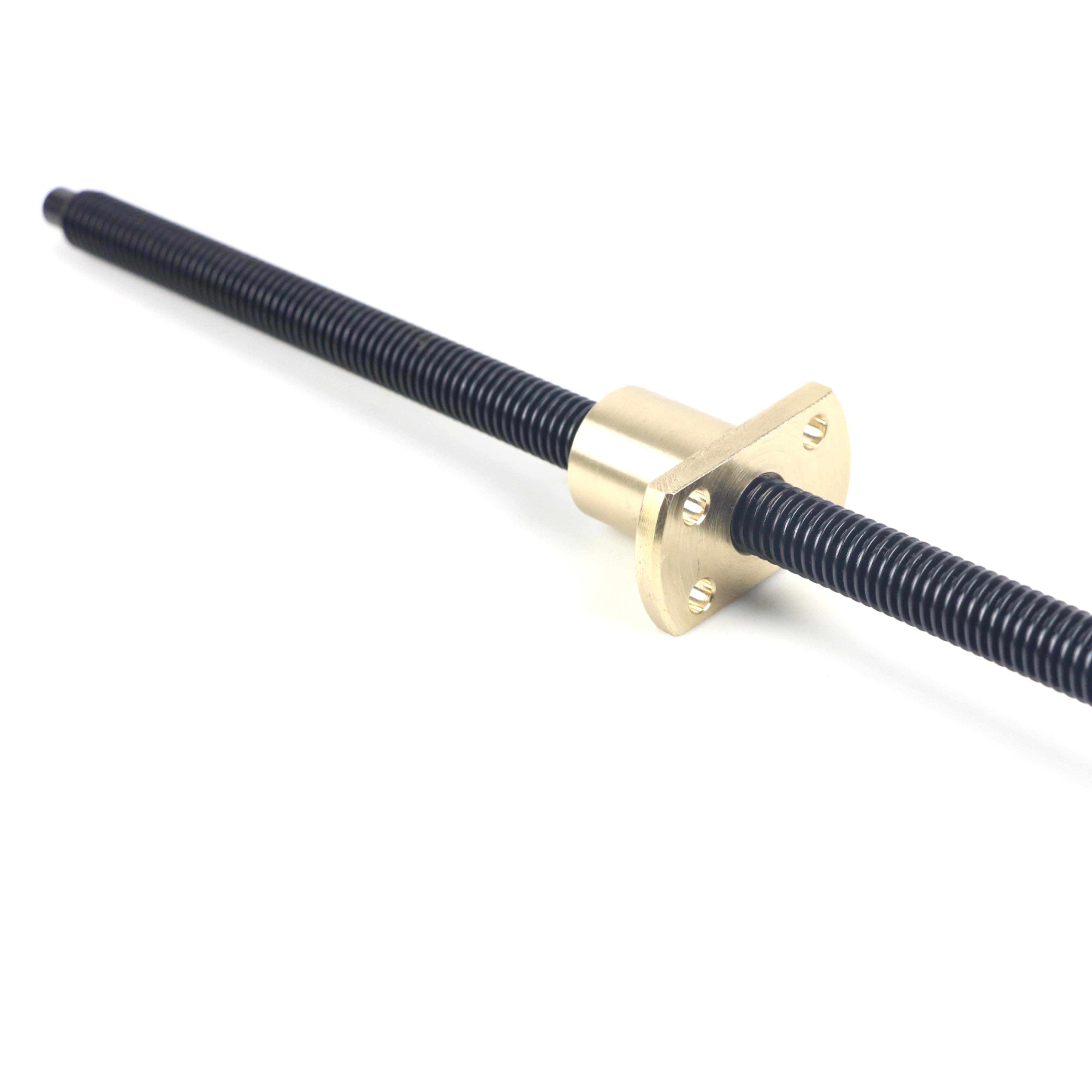

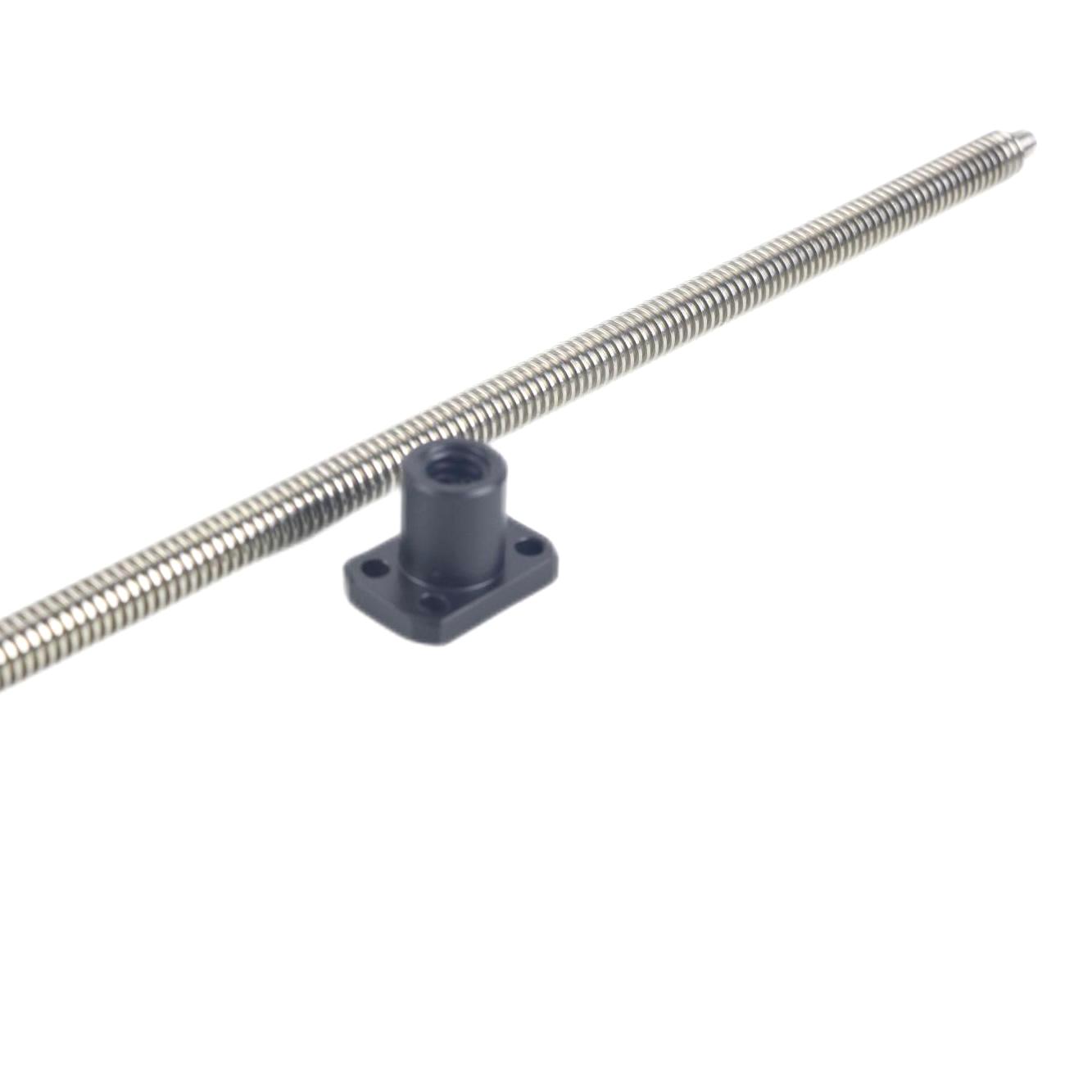

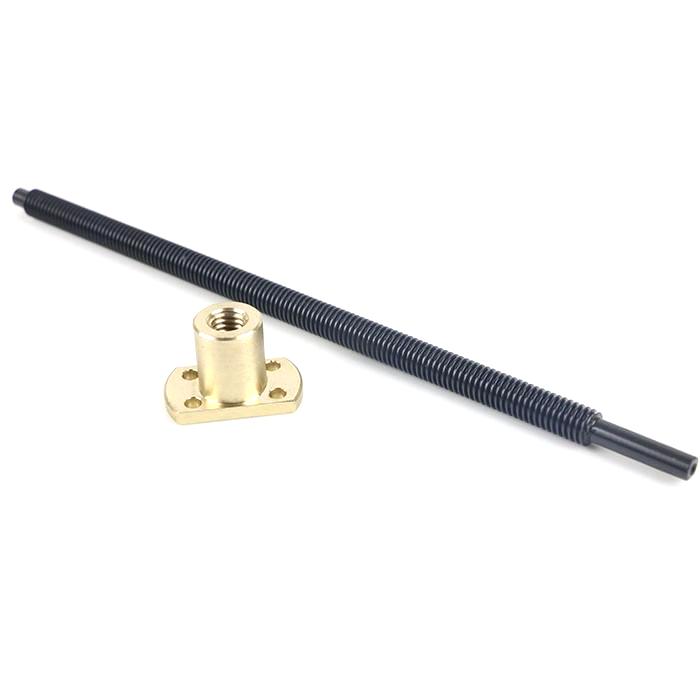

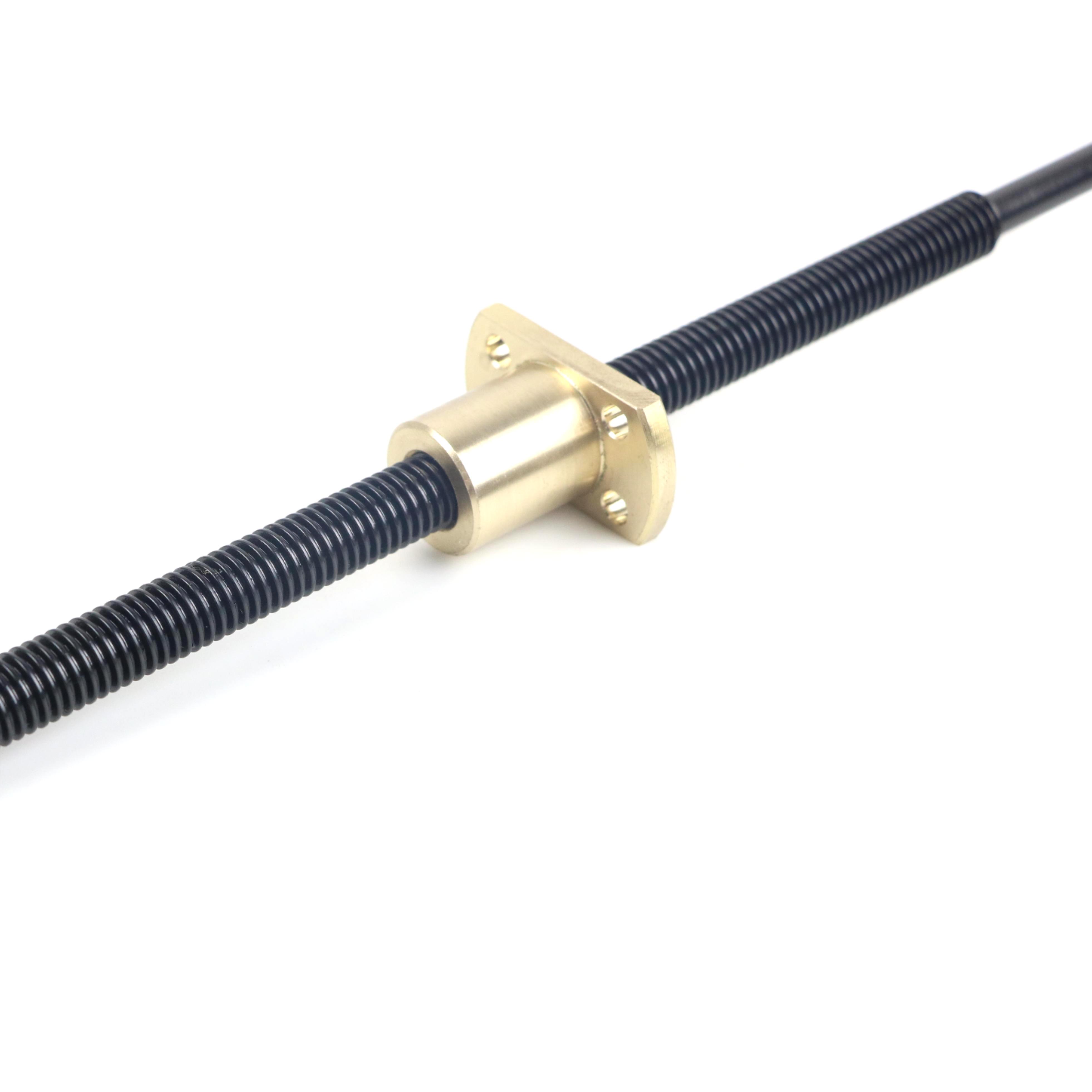

15.875X12.7mm(5/8"-8)lead screw is designed for heavy-duty linear motion systems,combining a 15.875mm diameter,12.7mm lead,and 3.175mm pitch.Featuring the standardized ACME thread profile,this screw and nut pair delivers exceptional load distribution,wear resistance.
Diameter | 0.625 in(15.875mm) |
Lead | 0.5 in(12.7mm) |
| Pitch | 0.125 in(3.175mm) |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Key Advantages of Our ACME Screw & Nut:
Maintenance-Free Operation:The nut is crafted from a self-lubricating composite material,eliminating the need for frequent greasing and reducing long-term maintenance costs.
Ultra-Smooth Motion:Precision-ground threads on both the screw and nut ensure virtually frictionless movement,even under heavy axial loads.
Premium Surface Quality:Advanced machining processes achieve a mirror-like surface finish on the screw shaft,enhancing corrosion resistance and extending operational lifespan.
Why Partner With Us?
End-to-End Engineering Expertise: Our specialized engineering team collaborates with you from concept design to final deployment,offering tailored solutions for torque optimization,load capacity,and environmental compatibility.
Fast Delivery:We prioritize efficiency with a guaranteed lead time of 12 days,ensuring minimal project delays.
Customized service:Leadscrews and nuts can be customized to meet unique specifications,including material,shaft end,nut dimension,and thread tolerances.
High Quality:100% inspection across critical parameters—dimensional accuracy,surface integrity,and mechanical performance—before shipment.
Elevate your machinery's reliability and efficiency with the 15.875X12.7mm ACME Screw & Nut—where robust design meets seamless motion.Contact us to explore custom configurations!
