Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:15.875x25.4 acme screw and nut will be produced according to your requirements or drawings

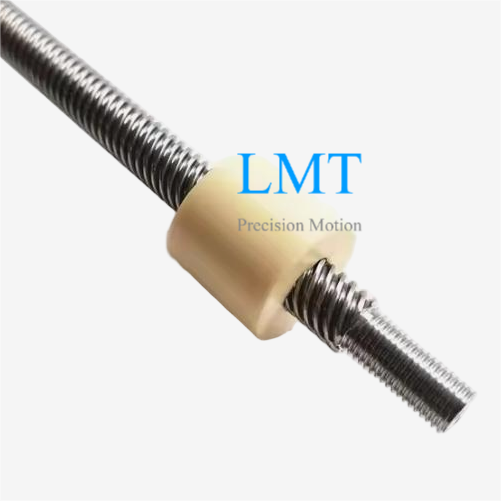

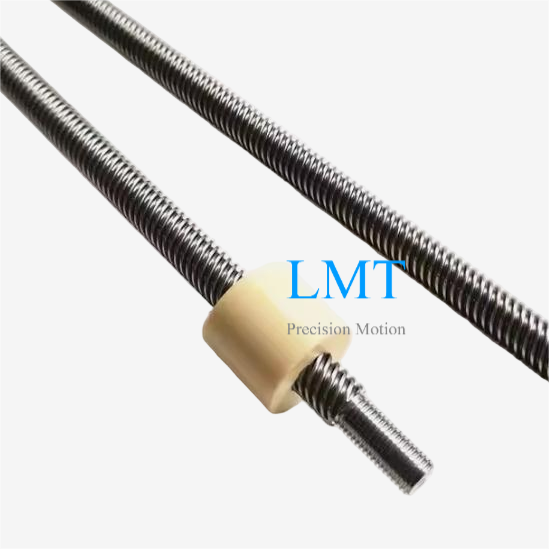

This 15.875x25.4 ACME lead screw is engineered for high-efficiency linear motion applications.Featuring a diameter of 15.875mm and a lead of 25.4mm,it incorporates an ACME thread profile with a pitch of 3.175mm and 8 thread starts.This design ensures that with each full rotation of the screw,the nut travels 25.4mm,enabling rapid movement,low noise,and smooth operation.Paired with a round nut for straightforward installation and a compact structure,the acme screw is crafted from high-quality stainless steel using cold-rolled processing,resulting in an exceptionally smooth surface that minimizes friction and enhances durability.
Specification:
Diameter | 15.875mm (0.625'') |
Lead | 25.4mm (1'') |
Pitch | 3.175mm (0.125'') |
| Number of starts | 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
15.875x25.4 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The 15.875x25.4 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High Quality:With 15 years of mature production experience in ACME lead screws,all products are 100% tested for quality before shipping.
5/8''-8 ACME Screw Assembly Applications:
Industrial Automation Systems:Used in linear actuators and conveyors to achieve fast,reliable positioning in assembly lines and robotics, benefiting from its high-speed travel and low-noise characteristics.
Medical and Laboratory Equipment:Ideal for sensitive devices like imaging systems or sample handlers,where the acme screw's compact design and smooth operation maintain hygiene and precision in critical environments.
This 15.875x25.4 ACME lead screw is engineered for high-efficiency linear motion applications.Featuring a diameter of 15.875mm and a lead of 25.4mm,it incorporates an ACME thread profile with a pitch of 3.175mm and 8 thread starts.This design ensures that with each full rotation of the screw,the nut travels 25.4mm,enabling rapid movement,low noise,and smooth operation.Paired with a round nut for straightforward installation and a compact structure,the acme screw is crafted from high-quality stainless steel using cold-rolled processing,resulting in an exceptionally smooth surface that minimizes friction and enhances durability.
Specification:
Diameter | 15.875mm (0.625'') |
Lead | 25.4mm (1'') |
Pitch | 3.175mm (0.125'') |
| Number of starts | 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
15.875x25.4 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The 15.875x25.4 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High Quality:With 15 years of mature production experience in ACME lead screws,all products are 100% tested for quality before shipping.
5/8''-8 ACME Screw Assembly Applications:
Industrial Automation Systems:Used in linear actuators and conveyors to achieve fast,reliable positioning in assembly lines and robotics, benefiting from its high-speed travel and low-noise characteristics.
Medical and Laboratory Equipment:Ideal for sensitive devices like imaging systems or sample handlers,where the acme screw's compact design and smooth operation maintain hygiene and precision in critical environments.
