Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T10x25 lead screw and nut will be produced according to your requirements or drawings

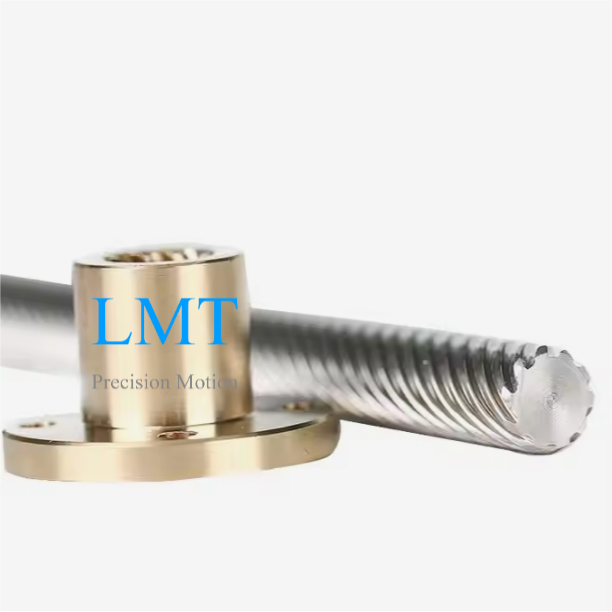

The Tr10x25 lead screw is a precision-engineered trapezoidal screw featuring a 10mm diameter,25mm lead,and 2.5mm pitch with 10 thread starts.Designed for high-speed performance,this lead screw ensures smooth,low-noise operation:one full rotation advances the nut by 25mm,delivering rapid linear motion.Paired with a durable flange nut,installation is simplified while maintaining a compact structure.Crafted from stainless steel via cold-rolling technology,the screw boasts an ultra-smooth surface for exceptional glide efficiency and long-term reliability.
Specification:
Diameter | 10mm |
Lead | 25mm |
Pitch | 2.5mm or 3.125mm |
| Number of starts | 10 or 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T10x25 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The Tr10x25 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High Quality:With 15 years of mature production experience lead screws,all products are 100% tested for quality before shipping.
2.5mm Pitch 10 Starts T10 Lead Screw Assembly Applications:
High-Speed Automation Systems:Ideal for CNC machinery and robotic arms where rapid positioning reduces cycle times without compromising accuracy.
3D Printers & Linear Actuators:Enables fast extrusion head movement and xy-axis adjustments,leveraging low-noise operation for quiet performance.
Medical and Lab Equipment:Used in diagnostic devices and automated sample handlers,benefiting from stainless steel's corrosion resistance and smooth motion for sensitive environments.
The Tr10x25 lead screw is a precision-engineered trapezoidal screw featuring a 10mm diameter,25mm lead,and 2.5mm pitch with 10 thread starts.Designed for high-speed performance,this lead screw ensures smooth,low-noise operation:one full rotation advances the nut by 25mm,delivering rapid linear motion.Paired with a durable flange nut,installation is simplified while maintaining a compact structure.Crafted from stainless steel via cold-rolling technology,the screw boasts an ultra-smooth surface for exceptional glide efficiency and long-term reliability.
Specification:
Diameter | 10mm |
Lead | 25mm |
Pitch | 2.5mm or 3.125mm |
| Number of starts | 10 or 8 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
T10x25 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The Tr10x25 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High Quality:With 15 years of mature production experience lead screws,all products are 100% tested for quality before shipping.
2.5mm Pitch 10 Starts T10 Lead Screw Assembly Applications:
High-Speed Automation Systems:Ideal for CNC machinery and robotic arms where rapid positioning reduces cycle times without compromising accuracy.
3D Printers & Linear Actuators:Enables fast extrusion head movement and xy-axis adjustments,leveraging low-noise operation for quiet performance.
Medical and Lab Equipment:Used in diagnostic devices and automated sample handlers,benefiting from stainless steel's corrosion resistance and smooth motion for sensitive environments.
