24mm Diameter Trapezoidal Lead Screws
Our 24mm diameter trapezoidal lead screws deliver high load capacity, smooth motion, and long service life in a robust, cost-effective design. Engineered for reliability in demanding applications, they are also available customized to your exact specifications for a perfect fit.

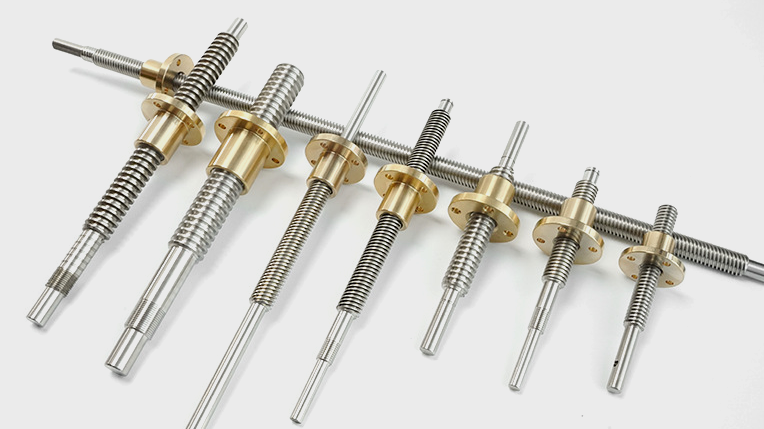

24mm diameter trapezoidal screw manufacturer
T24 Trapezoidal Lead Screw Available Models
Below are the popular models of our 24mm diameter trapezoidal lead screws. For other models not listed, please contact our sales team for consultation.
Tr24x3 lead screw: diameter 24mm,lead 3mm,pitch 3mm.
Tr24x5 lead screw:diameter 24mm,lead 5mm,pitch 5mm.

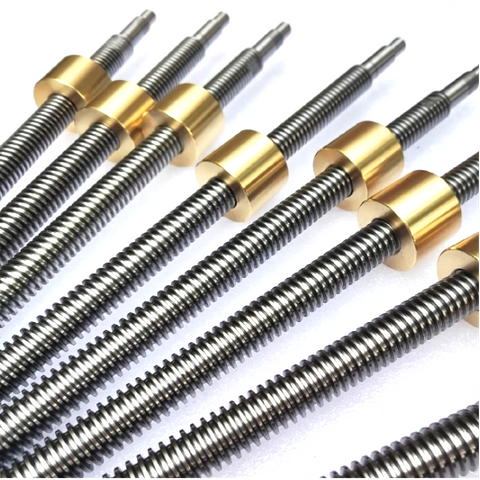

Tr24x10 lead screw:diameter 24mm,lead 10mm,pitch 5mm.
Tr24x40 lead screw:diameter 24mm,lead 40mm,pitch 5mm.
Tr24x55 lead screw:diameter 24mm,lead 55mm,pitch 5mm.

24mm Diameter Trapezoidal Lead Screw Specification
Diameter: 24mm
Screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating
24mm Diameter Trapezoidal Lead Screw Advantages
MOQ：one pc.
Fast delivery:within 12days.
Cost-effective: Helps your project save 20% to 50% in cost.
Unmatched Precision: Manufactured with tight tolerances to ensure smooth and accurate linear motion.
Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.
Support Customization: Lead screws and nuts can be customized according to your requirements and drawings.
Higher Load Capacity: The increased diameter significantly enhances axial load capacity and improves resistance to bending and buckling.
Extremely Smooth Surface Finish: Advanced manufacturing techniques like precision rolling create a low-friction surface for efficient power transmission.
Conform to international standards:All T24 lead screws and nuts comply with ROHS and CE standards.Material test report,hardness test report,quality inspection report as your require.

Tr24 Lead Screw Common Applications
24mm trapezoidal lead screws are engineered for robust performance in demanding linear motion applications. Their high load capacity, durability, and cost-effectiveness make them a versatile solution across numerous industries：
Stage & Entertainment Technology: Safely and quietly lifting platforms, stages, and lighting rigs.
Printing & Packaging Machinery: Enabling precise adjustments of rollers and components for consistent quality.
CNC Machinery: Providing precise and stable movement for tables and slides in milling machines, lathes, and routers.
Heavy-Duty Lifting Systems: Ideal for scissor lifts, industrial jacks, and work platforms where high load capacity is critical.
Automation & Linear Actuators: Driving motion in automated assembly lines, gantry systems, and material handling equipment.
Large-Format 3D Printers: Ensuring stable Z-axis movement for high-resolution, industrial-grade additive manufacturing.
24mm Diameter Trapezoidal Lead Screws | Custom Engineered Solutions
Lead Precision & Range: Available in a broad selection of leads, from ultra-fine pitches for precise positioning to larger pitches optimized for high-speed travel.
Lead Screw Length Versatility: Manufactured in standard and custom lengths to meet the specific stroke and spatial requirements of your application.
Material Selection: Choose from a range of high-performance materials for the screw and nut to achieve the ideal balance of strength, durability, and weight.
Protective Coatings: Optional surface treatments and coatings are available to enhance corrosion resistance,reduce friction, and extend the operational lifespan in challenging environments.
End Machining Flexibility: Lead Screw shaft ends can be custom-machined to your specifications, featuring unique threading, drilling, or shaping for seamless integration with bearings, motors, and other components.
Request Your Quote Today!
Whether you are designing new machinery, upgrading existing equipment, or require a durable solution for a custom linear motion project, the 24mm diameter trapezoidal lead screw is a proven choice that balances performance with cost-effectiveness. Its widespread use across diverse sectors is a testament to its fundamental reliability and versatility.​​​​​​​
Request a Quote
15＋
With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.​​​​​​​
Professional Engineering Team
LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.​​​​​​​​​​​​​​
1000+
Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

24mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
