26mm Diameter Trapezoidal Lead Screws
Engineered for superior performance in demanding environments, 26mm diameter trapezoidal lead screws deliver exceptional load-bearing capacity, durability, and reliable precision. Their robust construction makes them ideal for applications requiring high thrust forces and long-term stability. The trapezoidal thread design ensures smooth operation and excellent wear resistance, providing a cost-effective solution for heavy-duty automation and industrial machinery.

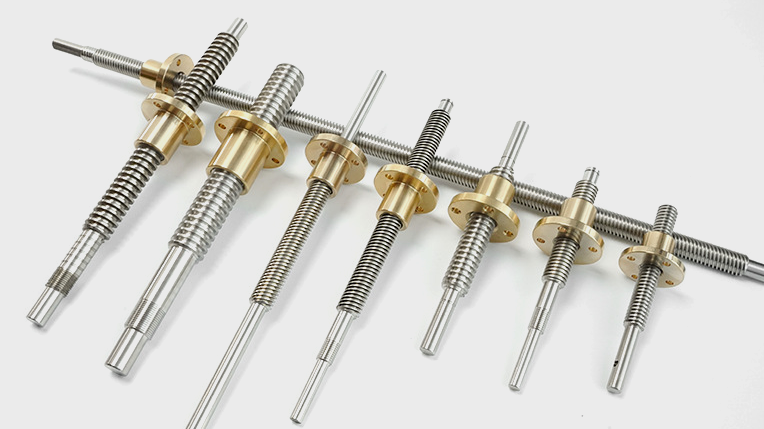

26mm Diameter Trapezoidal Lead Screws
T26 Trapezoidal Lead Screw Available Models
Below are the popular models of our 26mm diameter trapezoidal lead screws. For other models not listed, please contact our sales team for consultation.
Tr26x3 lead screw: diameter 26mm,lead 3mm,pitch 3mm.
Tr26x5 lead screw:diameter 26mm,lead 5mm,pitch 5mm.
T26x8 lead screw:diameter 26mm,lead 8mm,pitch 4mm.
Tr26x8 lead screw:diameter 26mm,lead 8mm,pitch 8mm.
Tr26x10 lead screw:diameter 26mm,lead 10mm,pitch 5mm.
Tr26x16 lead screw:diameter 26mm,lead 16mm,pitch 4mm.
Tr26x20 lead screw:diameter 26mm,lead 20mm,pitch 4mm.
Tr26x24 lead screw:diameter 26mm,lead 24mm,pitch 4mm.
Tr26x50 lead screw:diameter 26mm,lead 50mm,pitch 5mm.

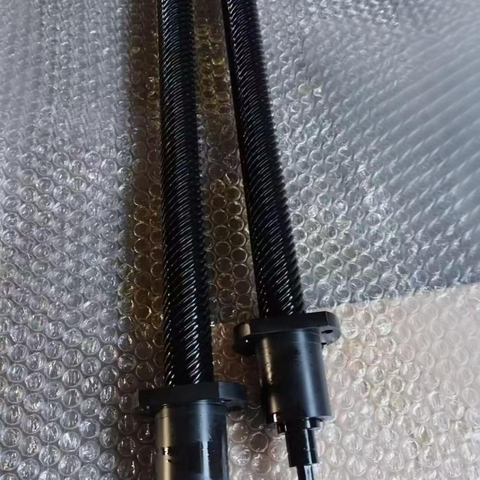

Tr26x60 lead screw:diameter 26mm,lead 60mm,pitch 5mm.
Tr26x75 lead screw:diameter 26mm,lead 75mm,pitch 5mm.

26mm Diameter Trapezoidal Lead Screw Specification
Diameter: 26mm
Screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating
26mm Diameter Trapezoidal Lead Screw Advantages
MOQ：one pc.
Fast delivery:within 12days.
Cost-effective: Helps your project save 20% to 50% in cost.
Unmatched Precision: Manufactured with tight tolerances to ensure smooth and accurate linear motion.
Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.
Support Customization: Lead screws and nuts can be customized according to your requirements and drawings.
Higher Load Capacity: The increased diameter significantly enhances axial load capacity and improves resistance to bending and buckling.
Extremely Smooth Surface Finish: Advanced manufacturing techniques like precision rolling create a low-friction surface for efficient power transmission.
Conform to international standards:All T26 lead screws and nuts comply with ROHS and CE standards.Material test report,hardness test report,quality inspection report as your require.

Tr26 Lead Screw Common Applications
Our 26mm trapezoidal lead screws are vital components in a wide array of industries and applications:
Valve Actuators and Control Systems: Precisely operating large valves in process industries like water treatment and oil & gas.
Industrial Presses and Stamping Machines: Providing the high-force linear motion needed for metal forming and punching operations.
Automated Warehouse Lifting Systems: Driving the vertical movement in palletizers, stacker cranes, and high-bay retrieval systems.
Large-Scale 3D Printers (Gantry Systems): Delivering stable and accurate Z-axis movement for printers with expansive build volumes.
Construction Equipment and Scissor Lifts: Offering the robust power and safety required for elevating heavy loads in platforms and industrial lifts.
Heavy-Duty CNC Machining Centers: Ensuring precise table movement and stability under significant cutting forces in large-scale milling and boring machines.
26mm Diameter Trapezoidal Lead Screws | Custom Engineered Solutions
Lead Precision & Range: Available in a broad selection of leads, from ultra-fine pitches for precise positioning to larger pitches optimized for high-speed travel.
Lead Screw Length Versatility: Manufactured in standard and custom lengths to meet the specific stroke and spatial requirements of your application.
Material Selection: Choose from a range of high-performance materials for the screw and nut to achieve the ideal balance of strength, durability, and weight.
Protective Coatings: Optional surface treatments and coatings are available to enhance corrosion resistance,reduce friction, and extend the operational lifespan in challenging environments.
End Machining Flexibility: Lead Screw shaft ends can be custom-machined to your specifications, featuring unique threading, drilling, or shaping for seamless integration with bearings, motors, and other components.
Request Your Quote Today!
When your application demands strength and precision, our 26mm trapezoidal lead screws provide the robust performance you need. Explore our comprehensive range of custom solutions, including various lead options and nut configurations, to find the perfect fit for your heavy-duty requirements.
Request a Quote
15＋
With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.​​​​​​​
Professional Engineering Team
LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.​​​​​​​​​​​​​​
1000+
Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

26mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
