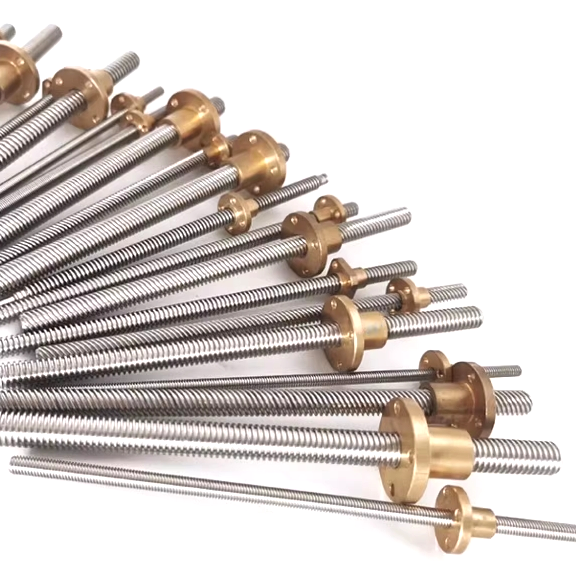

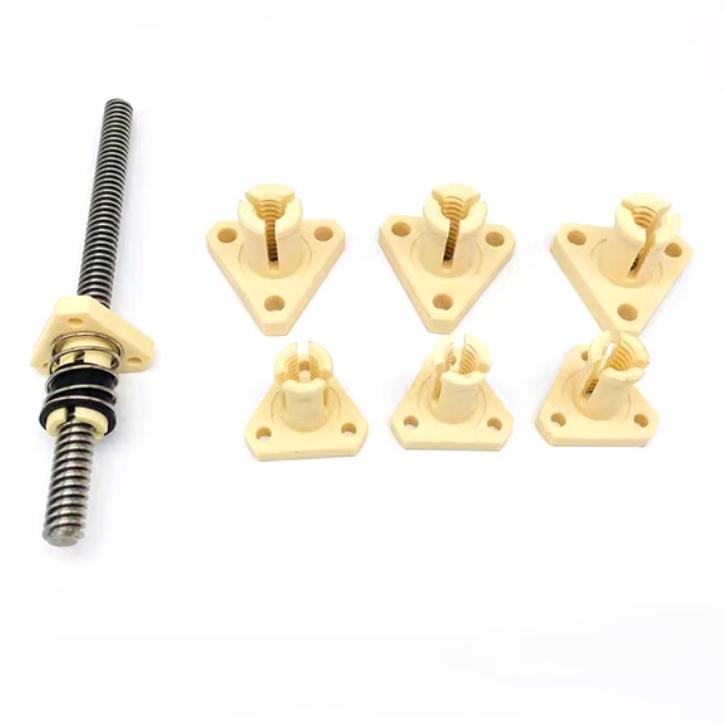

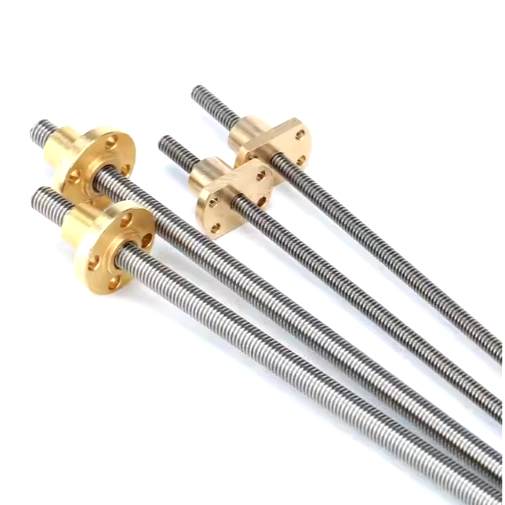

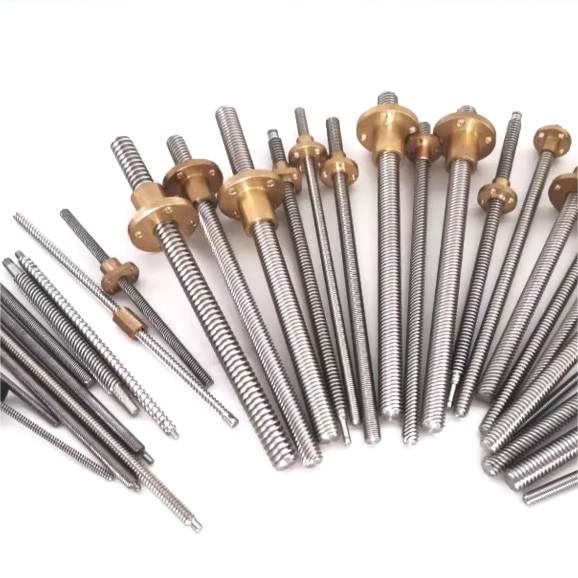

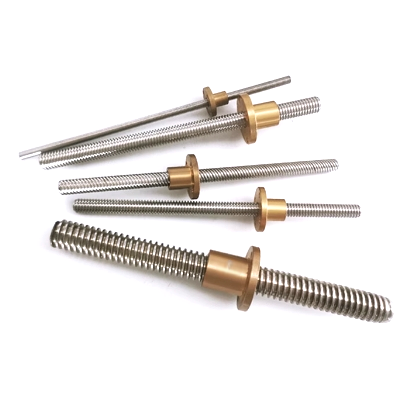

The ACME screw diameter is 3/16''(4.7625mm),lead is 0.4''(10.16mm),expertly crafted for demanding industrial,automation applications.Designed to deliver precision,strength,and longevity,this high-performance threading solution is your go-to choice for projects that refuse to compromise.
Diamter | 3/16''(4.7625mm) |
Lead | 0.4 in(10.16mm) |
| Pitch | 0.05 in(1.27mm) |
| Number of starts | 8 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
✅ Ultra-Smooth Surface Finish
Our 3/16''-20 ACME screw and nut ensure perfect smooth operation,eliminating stick-slip effects and reducing wear—critical for applications demanding silent,vibration-free performance.
✅High Precision
Engineered for perfection,highest lead accuracy can be 0.012mm/100mm,ensuring repeatable positioning even at nanometer scales.
✅ Zero Backlash Design
Precision-ground ACME threads and custom preload adjustments minimize the backlash,enabling ultra-responsive motion control in bidirectional operations.
Medical Devices: Power surgical robotics,MRI positioning arms,dental implant drills,and drug-delivery pumps.
Semiconductor Manufacturing:Enable sub-micron accuracy in wafer inspection stages,photolithography systems,and chip-bonding equipment.
Direct-Drive Systems: Optimize linear actuators in nanoscale alignment tools or laser focusing mechanisms.
Precision Metrology: Drive coordinate measuring machines (CMMs), optical comparators,and surface profilometers.
Laboratory Automation: Upgrade lab-on-a-chip devices,microfluidic pumps,and automated microscopy stages.
Zero-Risk Quality: Rigorously tested for dimensional accuracy and load capacity.
Lead Time: Within 14days—no delays.
Expert Support: Need guidance? Our engineering team is ready to assist.
Upgrade Your Motion Systems Today!
Our 3/16"-20 ACME Screw & Nut set is built to outlast,outperform,and exceed expectations.Order now and experience the difference precision engineering makes!Custom ACME screw lengths,screw shaft end,materials and nut sizes available—contact us for tailored solutions!
