3/16''-40

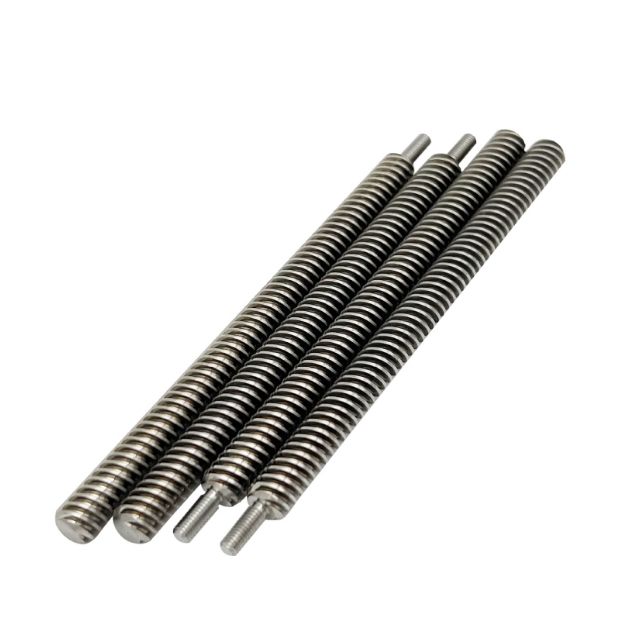

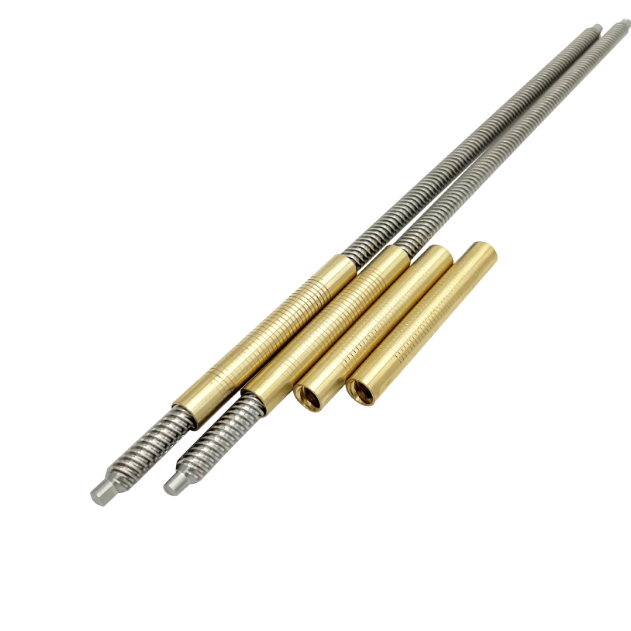

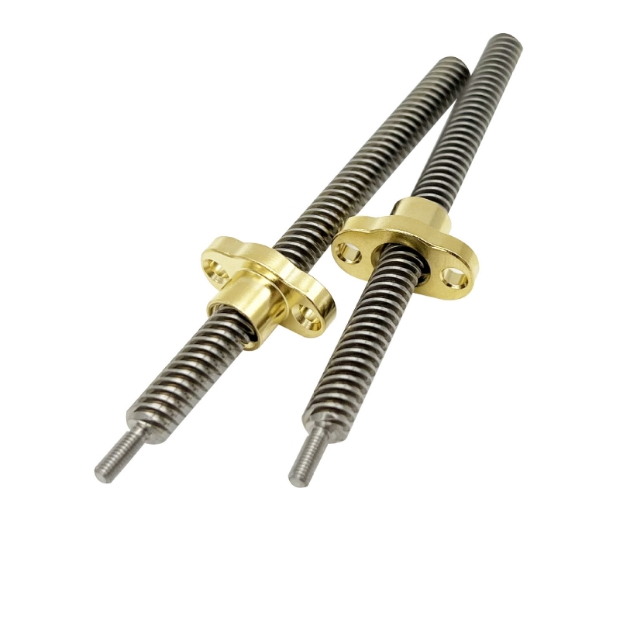

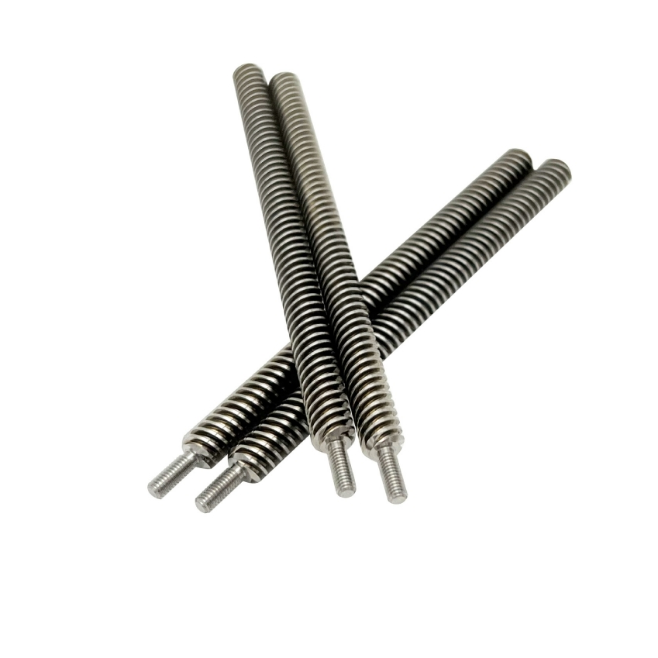

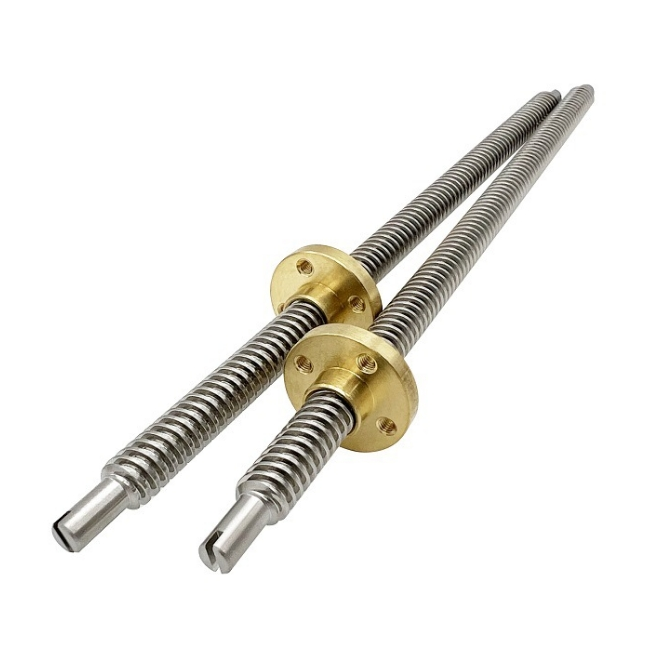

3/16'' Diameter 3/16''-40 ACME Lead Screw
This ACME screw diameter is 3/16 in, lead is 0.025 in,pitch is 0.025 in,the screw and nut will be produced according to your needs.
Diamter | 3/16'' |
Lead | 0.025 in |
| Pitch | 0.025 in |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your ACME screw and nut!
