5/8''-10
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

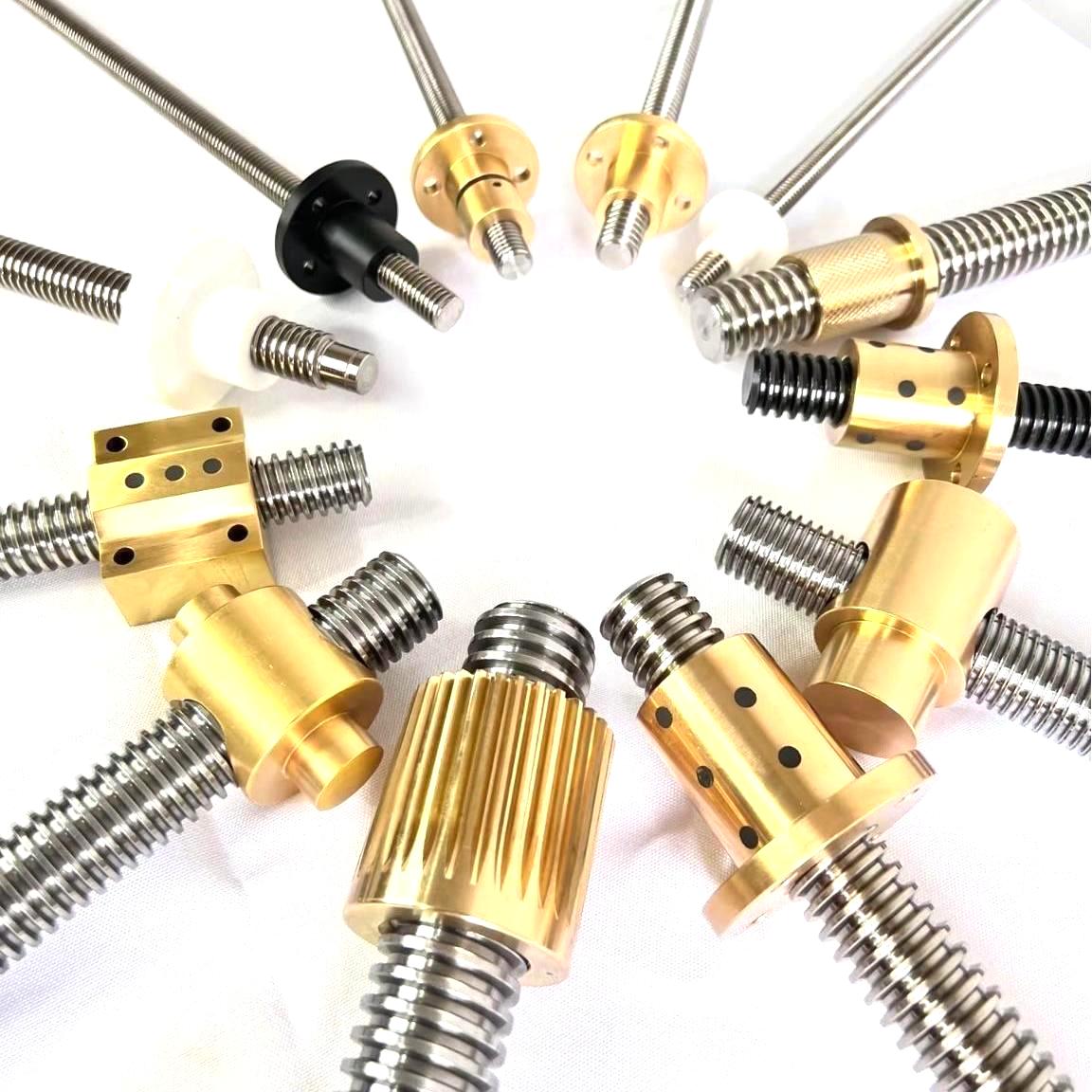

| This product shows the models we can produce. Lead screw and nut will be customized according to your requirements or drawing. Customized product MOQ: 1pc Customized product lead time: 10~15days | |||||||||

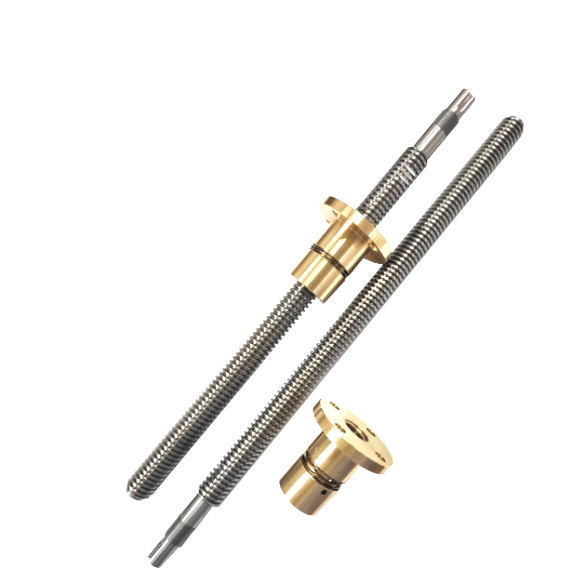

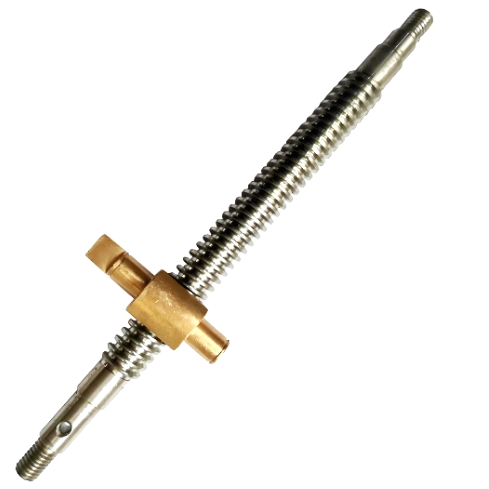

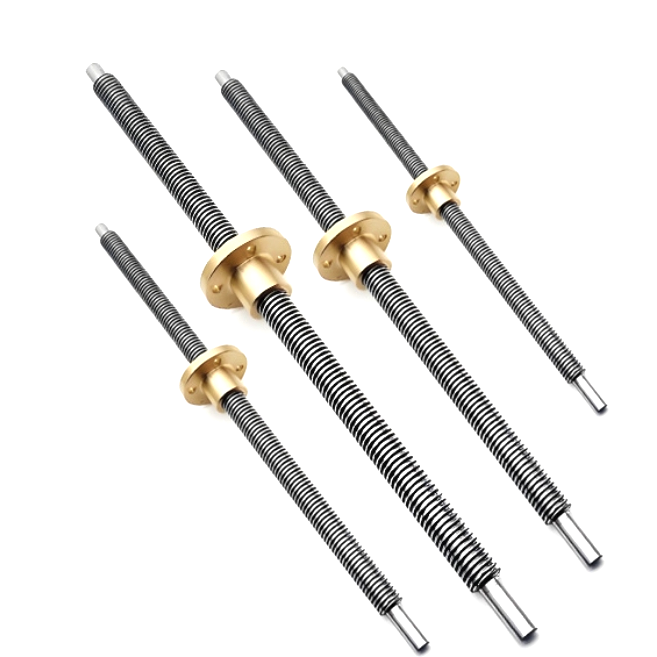

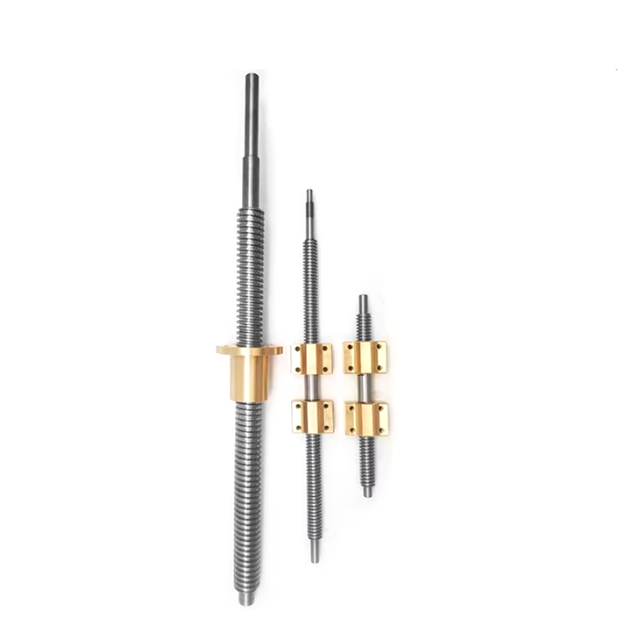

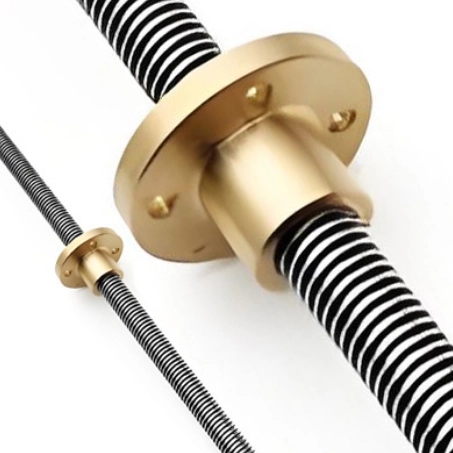

5/8"-10 ACME Thread Lead Screw And Nut
The ACME screw model "5/8"-10" indicates a nominal diameter of 5/8 inch (about 15.875 mm),an ACME thread design of 10 threads per inch,and a lead of 0.1 inch (about 2.54 mm).
Diamter | 0.625 in |
Lead | 0.1 in |
| Pitch | 0.1 in |
| Number of starts | 1 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
The ACME thread adopts a 29° tooth angle and has higher shear strength and load-bearing capacity than the standard trapezoidal thread (Tr). This ACME screw is suitable for heavy-load,low-speed and stable transmission scenarios.
Contact our sales to customize your ACME screw and nut!
