Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:ACME screws and nuts will be custom-produced according to your requirements or drawings

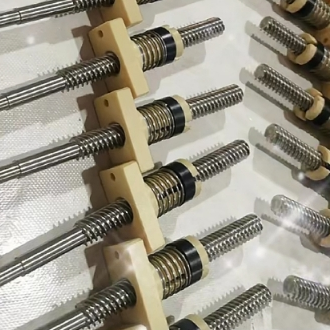

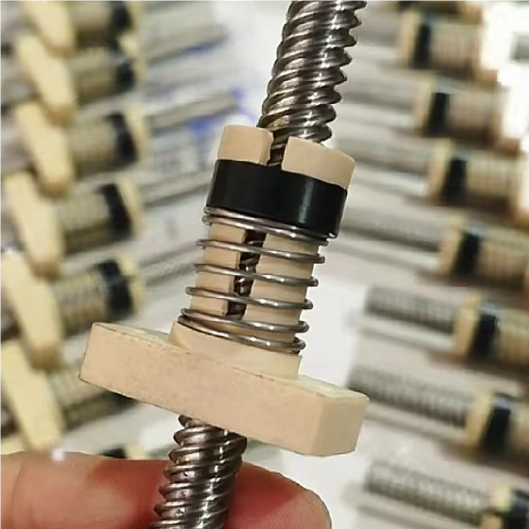

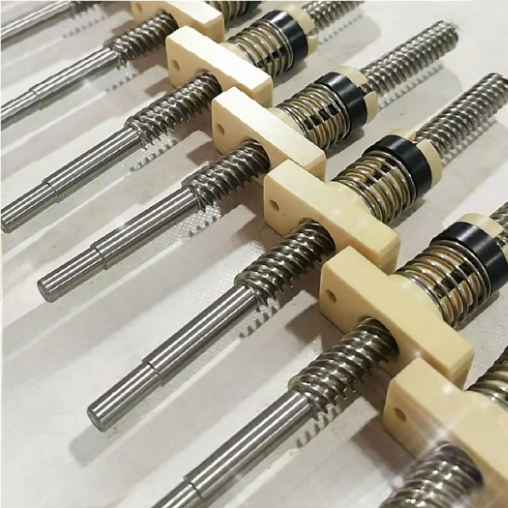

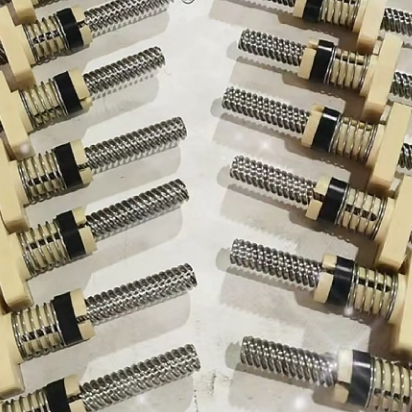

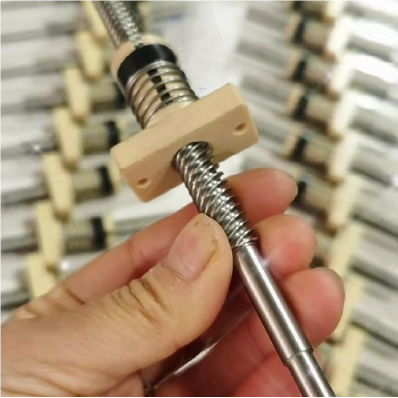

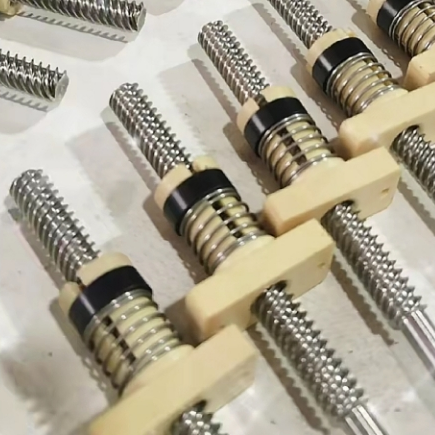

9.525×5.08 ACME Screw Rod with Precision Anti-Backlash Nut
This ACME threaded lead screw has a diameter of 9.525mm,a lead of 5.08mm,and a pitch of 1.27mm.It is equipped with an anti-backlash nut to eliminate backlash and achieve high precision.
Diameter | 9.525mm |
Lead | 5.08mm |
| Pitch | 1.27mm |
| Number of starts | 4 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
The advantages of 9.525×5.08 lead screw:
Cost-Effective:20% cost savings.
Lead Time: Within 14 days.
Lightweight Design:Compact 8mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
High Precision:Paired with an adjustable anti-backlash nut,this lead screw system effectively eliminates mechanical play,ensuring precise positioning accuracy.
Contact our sales to customize your ACME screw Rod and nut!
