Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:9.525x4.23 ACME rods and nuts will be custom-produced according to your requirements or drawings

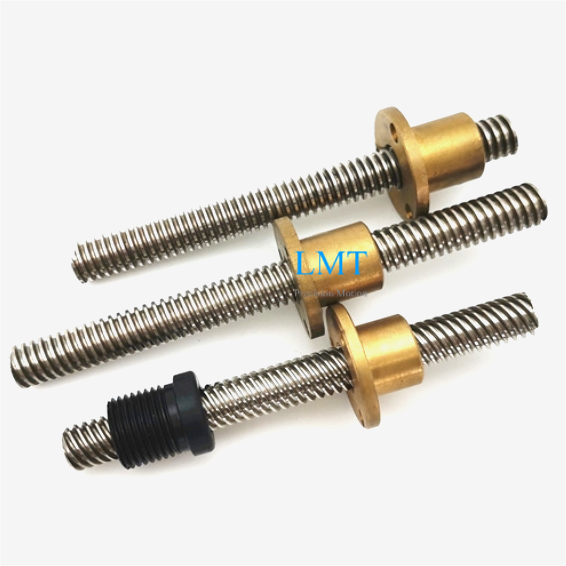

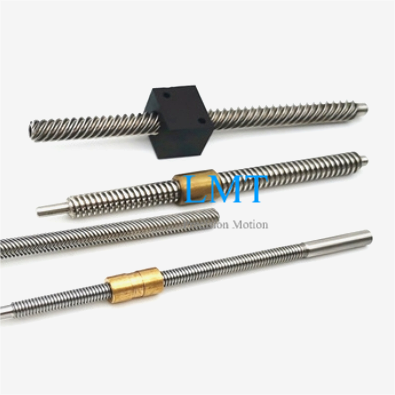

9.525x4.23 ROHS Compliant Rolled ACME Screw with Nut:This 9.525x4.23 ACME screw features a cold-rolled manufacturing process delivering an ultra-smooth surface finish.This superior finish ensures exceptionally smooth,low-friction operation and enhanced wear resistance when paired with compatible nuts.
Diameter | 9.525mm |
Lead | 4.23mm |
| Pitch | 2.115mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Available thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
9.525x4.23 ACME Screw and Nut Advantages:
MOQ: 1 pc.
Lead Time: Within 12 days.
Cost-Effective:15%~35% cost savings.
All lead screw and nut components comply with ROHS and CE standards.
Lightweight Design:Compact 9.525mm diameter structure for space-constrained equipment.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
9.525x4.23 ACME Lead Screw Applications:
Precision Linear Stages & Positioning Tables:Providing controlled,backlash-minimized linear motion in optical benches,microscope stages,or laser alignment equipment requiring micron-level accuracy.
3D Printer Z-Axis Drives:Moving the build platform or print head vertically in custom or high-precision/high-load 3D printers,leveraging ACME's strength and self-locking capability.
Small CNC Machine Axes:Driving linear motion on the axes of benchtop CNC mills,routers,or engravers where a balance of load capacity, precision,and cost is needed.
Valve Actuators:Operating manual or automated valves in process control systems requiring reliable linear thrust and resistance to vibration loosening.
Material Handling Conveyor Adjustments:Precisely positioning guides,gates,or supports on small-scale conveyor systems or packaging machinery.
