Available Screw Materials:S45C,SS303,SS304,SS316,aluminum,40Cr,titanium alloy
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304,aluminum
Popular Surface Coating:Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating/Nitriding treatment
Customized Service:Tr14x10 lead screw and nut will be produced according to your requirements or drawings

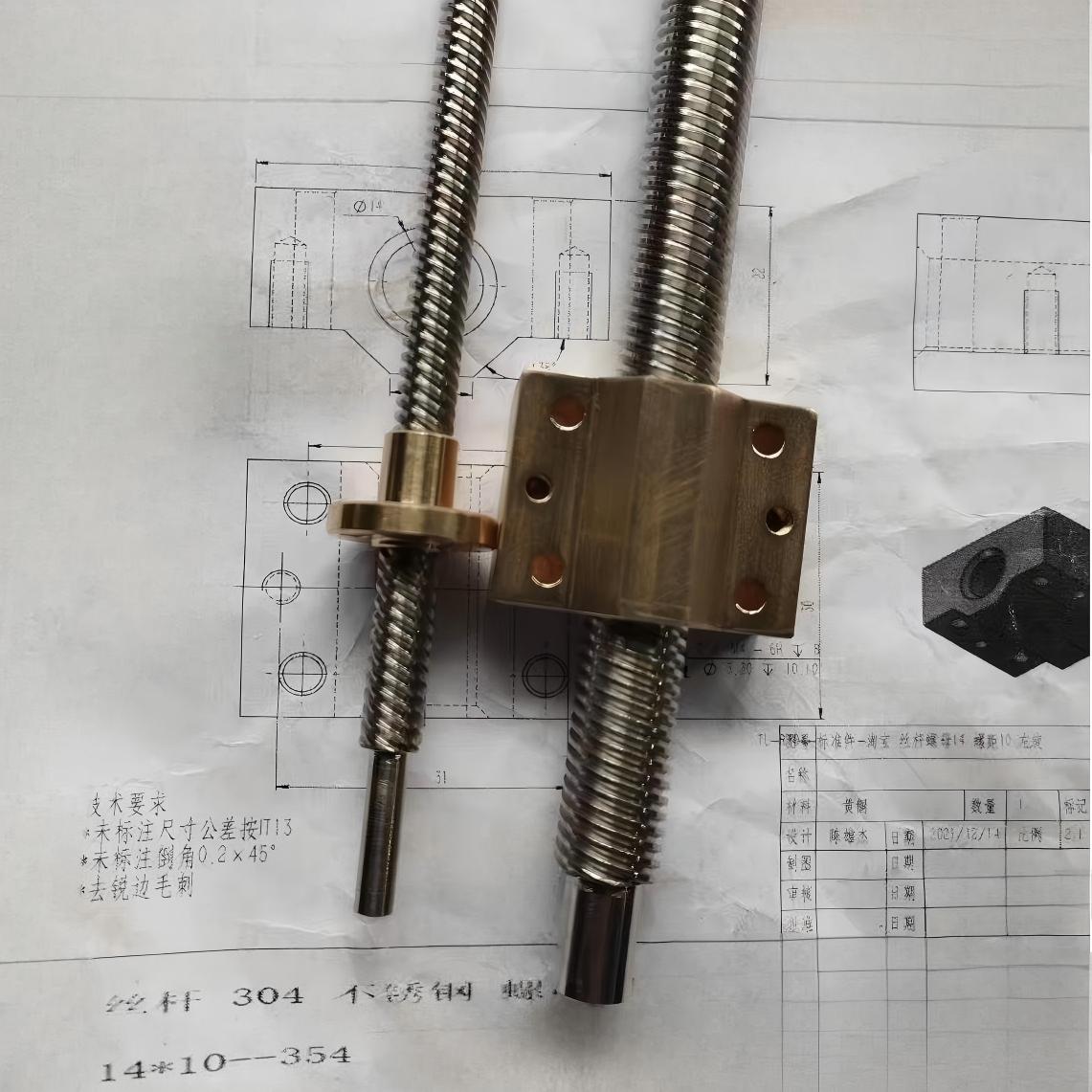

This Tr14x10 trapezoidal lead screw features a 14mm diameter and 10mm large lead,engineered for applications requiring high speed linear motion and efficient power transmission.The leadscrew is precision-matched with a copper alloy nut,delivering exceptional wear resistance and smooth operation under substantial loads.Its robust construction ensures reliable performance in demanding industrial environments.
Tr14x10 T14x10 Lead Screw and Nut Specification:
Diameter | 14mm |
Lead | 10mm |
Pitch | 2.5mm |
| Number of starts | 4 |
Available thread direction | RH/LH/RL |
Available screw materials | S45C/ SS303/SS304/SS316/aluminum/40Cr/titanium alloy |
Available nut materials | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/aluminum |
| Popular surface coating | Teflon coating/Nickel plated/Tungsten disulfide/Black chorme plated/Molybdenum disulfide/DLC coating/Nitriding treatment |
T14x10 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:15% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The T14x10 lead screw and nut will be manufactured according to your requirements.
High Quality:With 15 years of mature production experience in lead screws,all products are 100% tested for quality before shipping.
14x10 Trapezoidal Screw Assembly Applications:
The T14x10 lead screw assembly is particularly suited for heavy-duty applications where rapid traversal and high load capacity are critical.Key implementations include:
CNC machine tool feed drives and positioning systems
Industrial automation equipment and gantry systems
Heavy-duty linear actuators and lifting mechanisms
Packaging machinery and material handling systems
Automotive manufacturing equipment and special purpose machinery
LMT Lead Screw Factory
