14mm Diameter Trapezoidal Lead Screws

14mm diameter trapezoidal lead screws represent a step up in performance from the common 12mm size, offering greater load-bearing capacity and resistance to buckling. This makes them an ideal choice for applications that require more power, longer travel distances, or higher durability without stepping up to a larger, more expensive frame size. They maintain the classic benefits of trapezoidal threads—reliability, self-locking potential, and cost-effectiveness—while providing a robust solution for demanding mechanical systems.

T14 Trapezoidal Lead Screw Available Models

The following models are the popular models in our company.For other models not listed here, please consult our sales team.

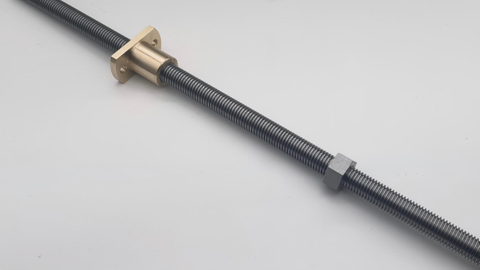

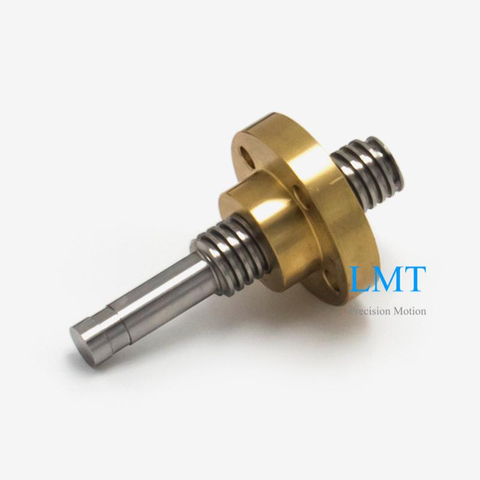

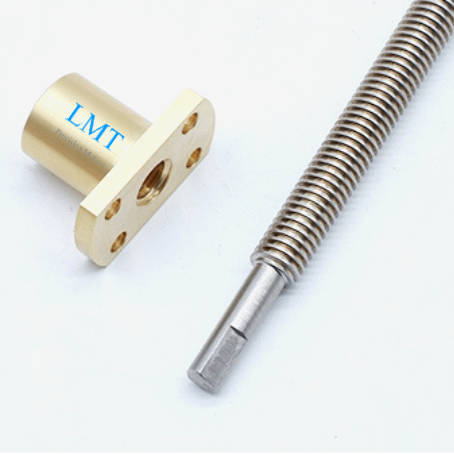

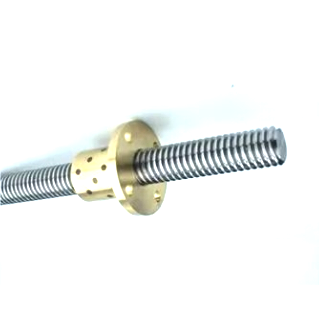

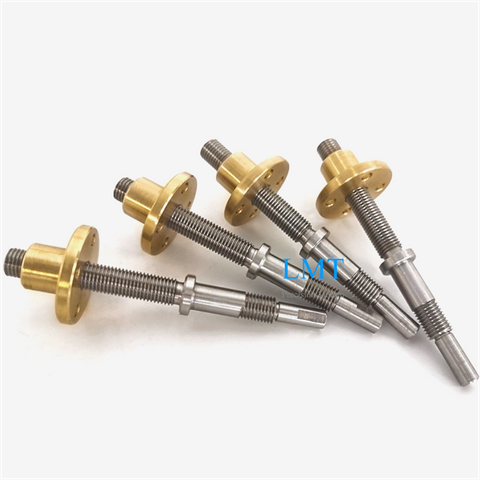

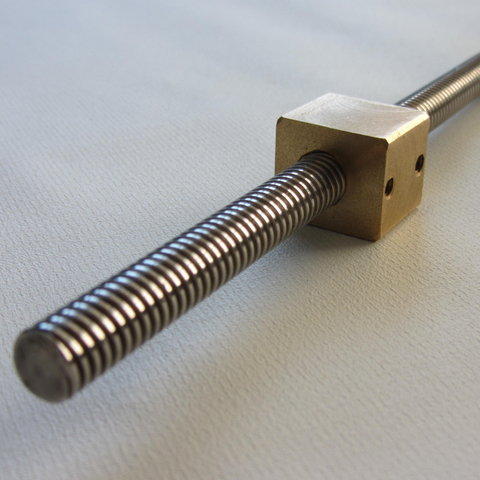

Tr14x2 lead screw: diameter 14mm,lead 2mm,pitch 2mm.

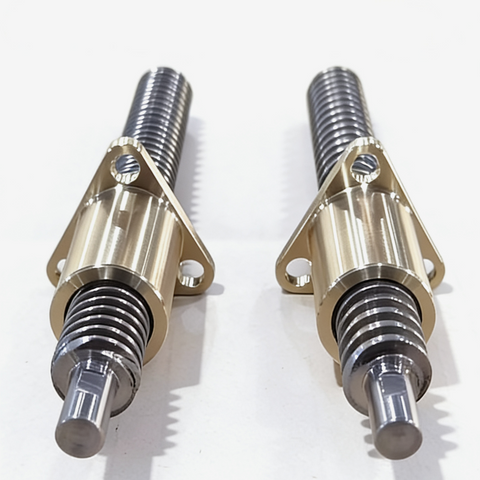

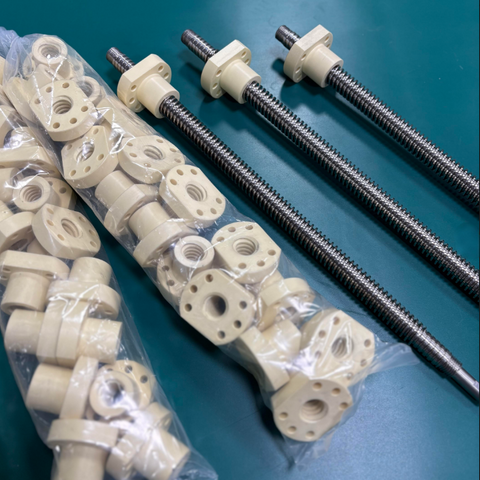

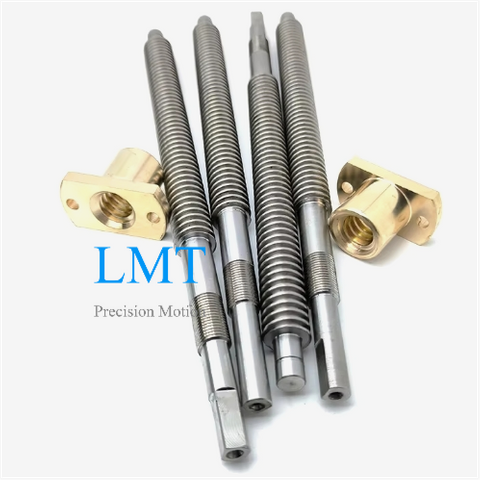

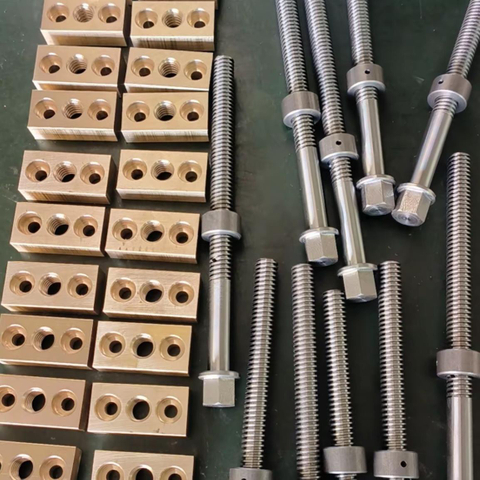

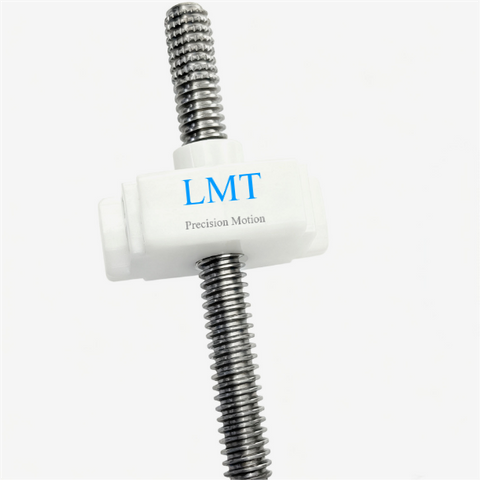

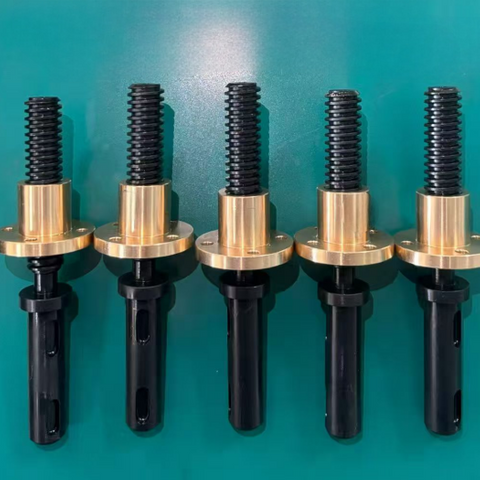

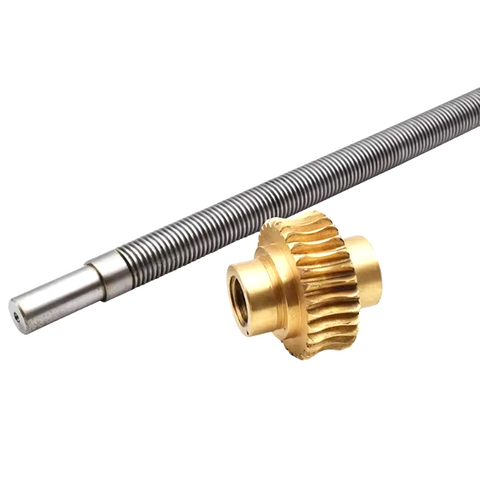

Tr14x3 lead screw:diameter 14mm,lead 3mm,pitch 3mm.

T14x4 lead screw: diameter 14mm,lead 4mm,pitch 2mm.

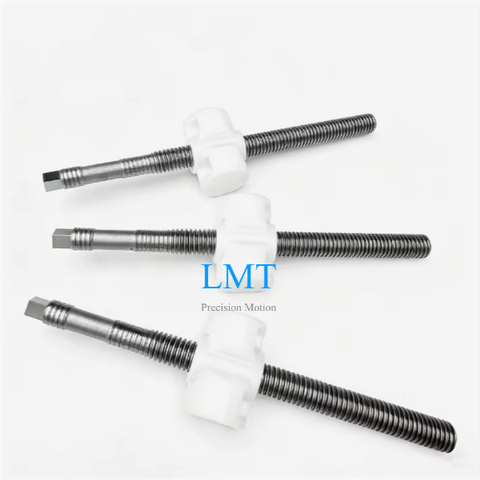

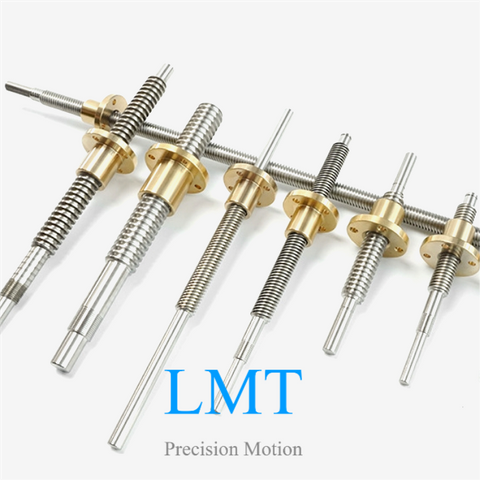

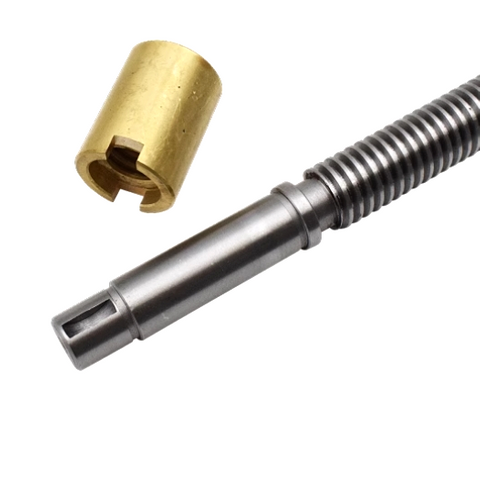

Tr14x4 lead screw: diameter 14mm,lead 4mm,pitch 4mm.

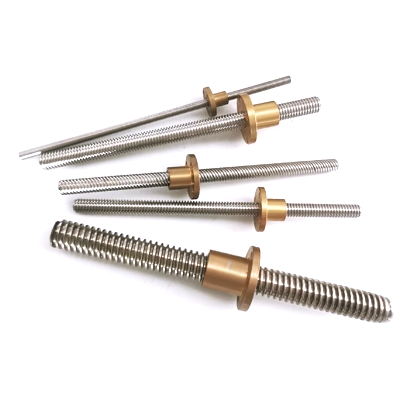

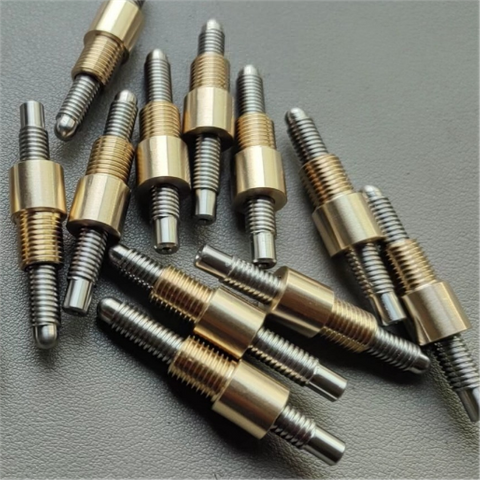

Tr14x6 lead screw:diameter 14mm,lead 6mm,pitch 3mm.

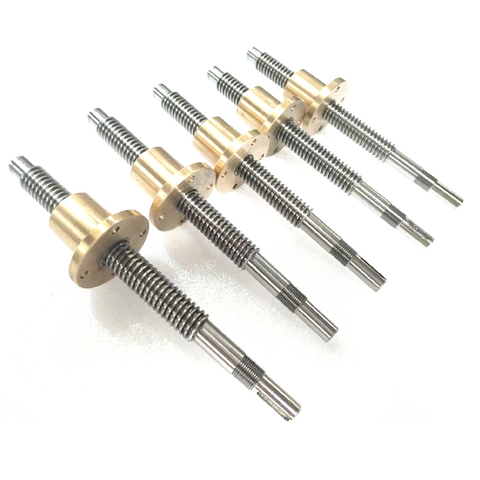

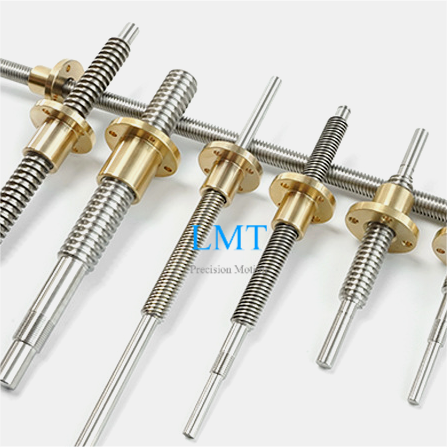

Tr14x8 lead screw: diameter 14mm,lead 8mm,pitch 4mm.

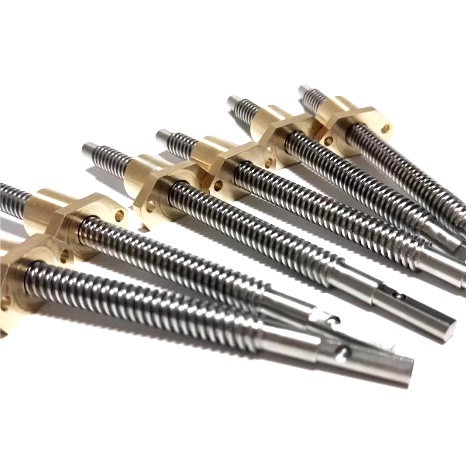

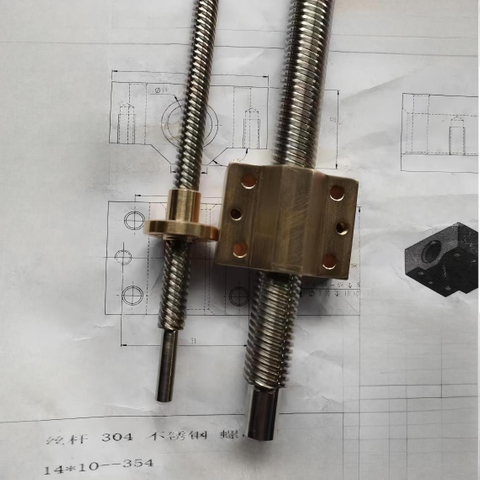

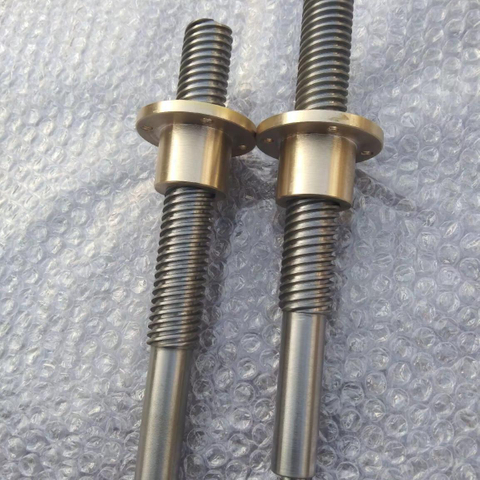

Tr14x10 lead screw:diameter 14mm,lead 10mm,pitch 2.5mm.

Tr14x12 lead screw: diameter 14mm,lead 12mm,pitch 4mm.
Tr14x18 lead screw:diameter 14mm,lead 18mm,pitch 3mm.

Tr14x20 lead screw: diameter 14mm,lead 20mm,pitch 4mm.
Tr14x30 lead screw:diameter 14mm,lead 30mm,pitch 5mm.

14mm Diameter Trapezoidal Lead Screw Specification

Diameter: 14mm

Screw thread direction: RH/LH/RL
Lead screw length: Produced according to your requirements
Screw shaft end machining: Processing according to your requirements
Nut shape and dimension:Customized production according to your needs
Popular screw materials: S45C/ SS303/SS304/SS316/Brass/Aluminum/40Cr
Popular nut materials: Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C/Aluminum
Popular surface coatings: Teflon coating/nickel plating/tungsten disulfide/black chrome plating/molybdenum disulfide/DLC coating

14mm Diameter Trapezoidal Lead Screw Advantages

MOQ：one pc.

Fast delivery：within 12days.

Cost-effective: Helps your project save 20% to 50% in cost.

Unmatched Precision: Manufactured with tight tolerances to ensure smooth and accurate linear motion.

Proven Reliability: Rigorous quality control ensures every lead screw meets our high standards for performance.

Support customization: Lead screws and nuts can be customized according to your requirements and drawings.

Higher Load Capacity: The increased diameter significantly enhances axial load capacity and improves resistance to bending and buckling.

Extremely Smooth Surface Finish: Advanced manufacturing techniques like precision rolling create a low-friction surface for efficient power transmission.

Conform to international standards:All T14 lead screws and nuts comply with ROHS and CE standards.Material test report,hardness test report,quality inspection report as your require.

Tr14 Lead Screw Common Applications

14mm trapezoidal screws are suited for more heavy-duty applications, including:

Industrial Linear Actuators: Where higher thrust forces are required.
Heavy-Duty CNC Machines: For driving the axes of larger milling machines and routers.
Printing and Packaging Machinery: For precise and powerful movement control.
Test and Measurement Equipment: Providing stable and accurate linear motion.

Automated Machinery: Robust positioning systems, gantries, and material handling equipment.

Precision 14mm Trapezoidal Lead Screws | Custom Engineered Solutions

Lead Precision & Range: Available in a broad selection of leads, from ultra-fine pitches for precise positioning to larger pitches optimized for high-speed travel.

Lead Screw Length Versatility: Manufactured in standard and custom lengths to meet the specific stroke and spatial requirements of your application.
Material Selection: Choose from a range of high-performance materials for the screw and nut to achieve the ideal balance of strength, durability, and weight.
Protective Coatings: Optional surface treatments and coatings are available to enhance corrosion resistance,reduce friction, and extend the operational lifespan in challenging environments.

End Machining Flexibility: Lead Screw shaft ends can be custom-machined to your specifications, featuring unique threading, drilling, or shaping for seamless integration with bearings, motors, and other components.

Ready to Get Started? Request Your Quote Today!

Need a reliable linear motion solution for a demanding project? Our 14mm trapezoidal lead screws offer the perfect blend of strength and value.

Request a Quote

15＋

With 15 years of specialized experience in producing lead screw, all leadscrews will be tested by professional inspectors before shipment to ensure quality.

Professional Engineering Team

LMT engineers will be involved in optimizing your screw project design from prototyping to final project design completion.

1000+

Our factory offers an extensive selection of over 1000 different models to meet diverse application needs.

14mm Diameter Trapezoidal Lead Screw Related Products

The following products are items previously manufactured by our company. You can contact our sales team directly to send your requirements or drawings. Both the lead screws and nuts are produced according to your specifications and drawings.
