T8x24
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| This product shows the models we can produce. Lead screw material,screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension,nut material will be customized according to your requirements or drawing. Customized product MOQ: 1pc Customized product lead time: 10~15days | |||||||||

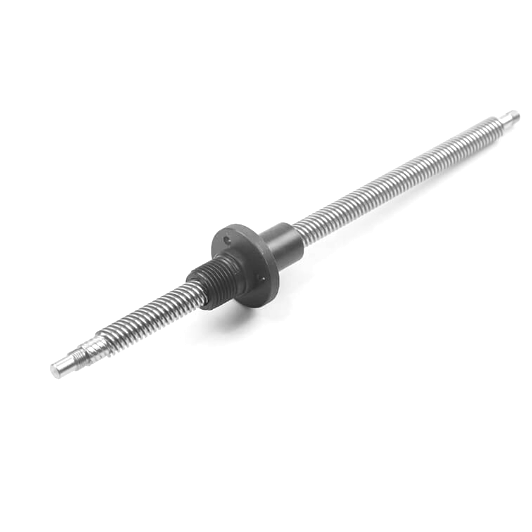

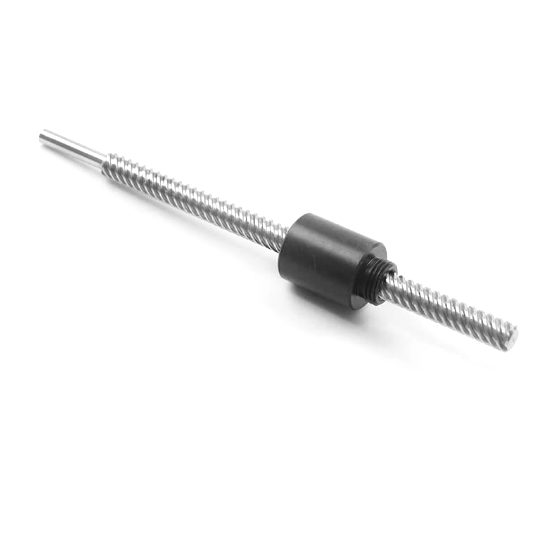

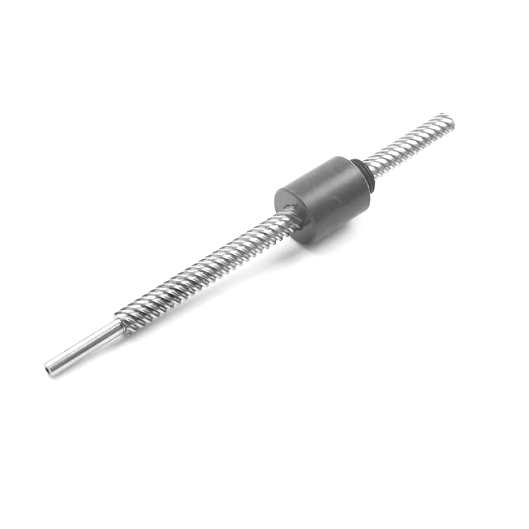

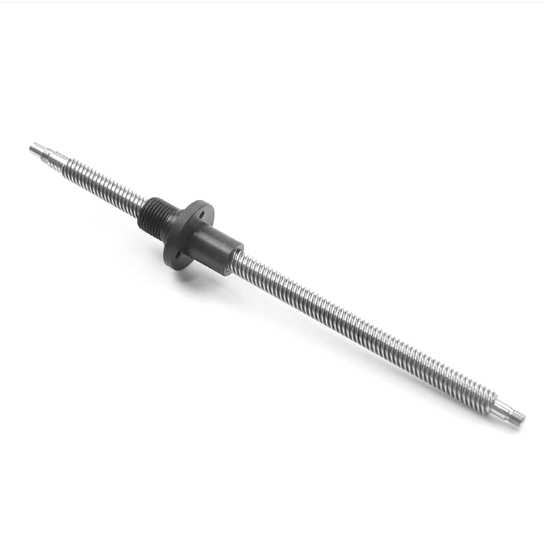

Diameter 8mm Lead 24mm T8x24 Trapezoidal Screw
This miniature trapezoidal screw has a diameter of 8mm and a lead of 24mm,the leadscrew runs fast and has a smooth surface,both the screw and the nut are customized according to your needs.
Diamter | 8mm |
Lead | 24mm |
Pitch | 3mm/4mm |
| Number of starts | 8/6 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Contact our sales to customize your trapezoid screw and nut!
