Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:Tr9x12 leadscrew and nut will be produced according to your requirements or drawings

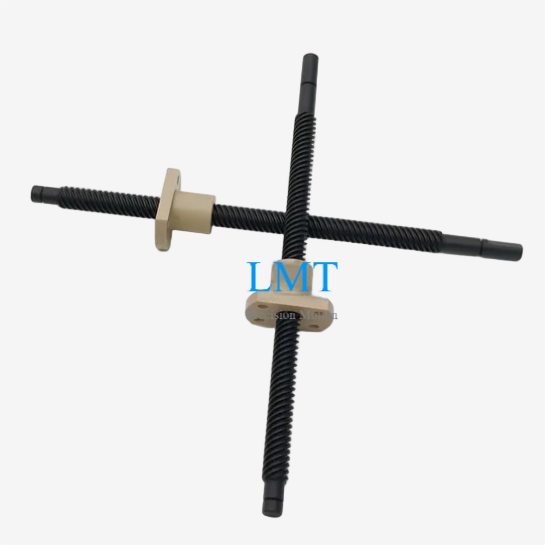

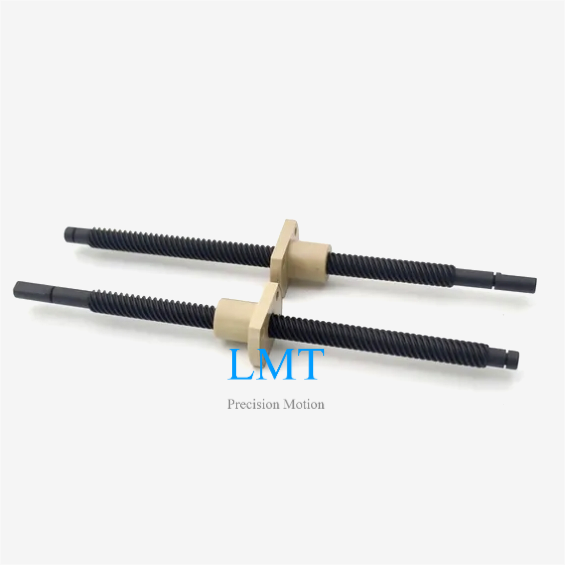

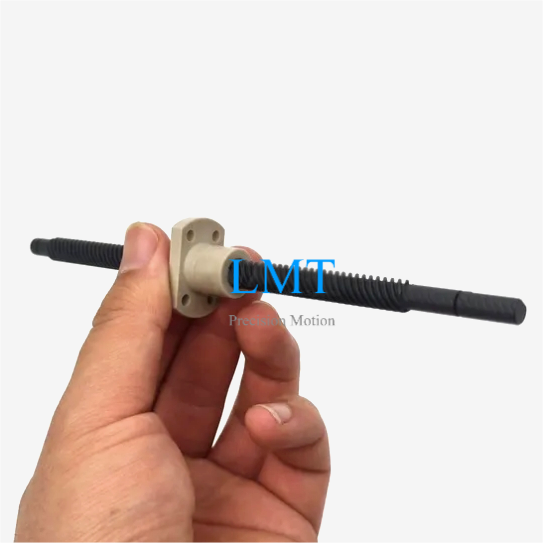

The T9x12 screw is a high-precision trapezoidal lead screw with a 9mm diameter and a 12mm lead.It features a 2mm pitch and 6 thread starts,enabling rapid and smooth linear motion.The screw is manufactured from stainless steel using a cold-rolling process for superior surface smoothness and durability.It is paired with a lightweight,self-lubricating PEEK flange nut,making it ideal for applications requiring corrosion resistance and low friction.Custom modifications to the screw shaft ends and nut dimensions are available based on your specifications and drawings.
Specification:
Diameter | 9mm |
Lead | 12mm |
Pitch | 2mm |
| Number of starts | 6 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Tr9x12 Lead Screw and Nut Advantages:
MOQ: 1 pc.
Fast Delivery:Within 12 days.
Cost-effective:25% ~40% cost savings.
All lead screws and nuts are ROHS and CE compliant.
Customized Service:The T9x12 lead screw and nut will be manufactured according to your requirements.
Superior Surface & Precision:Advanced cold-rolling technology creates an ultra-smooth,hardened surface for low friction,consistent performance,and extended lifespan.
High quality:15 years of experience in producing leadscrews,mature processing techniques,and 100% inspection of products before shipment.
12mm Lead T9 Lead Screw Assembly Applications:
This T9x12 lead screw assembly is expertly suited for high-speed automation in clean environments,such as semiconductor handling equipment,precision fluid dispensing systems,and the articulated movements of miniature robotic arms in electronics assembly,where weight reduction and minimal particulate generation are crucial.
