Tr10x30 Dia 10mm Lead 30mm Custom Lead Screw And Nut

10x30 trapezoidal screw & nut will be customized according to your requirements and drawing.

MOQ: 1pc

Lead time: 12~14days


Availability:



Inquire Add to Basket

Product Description

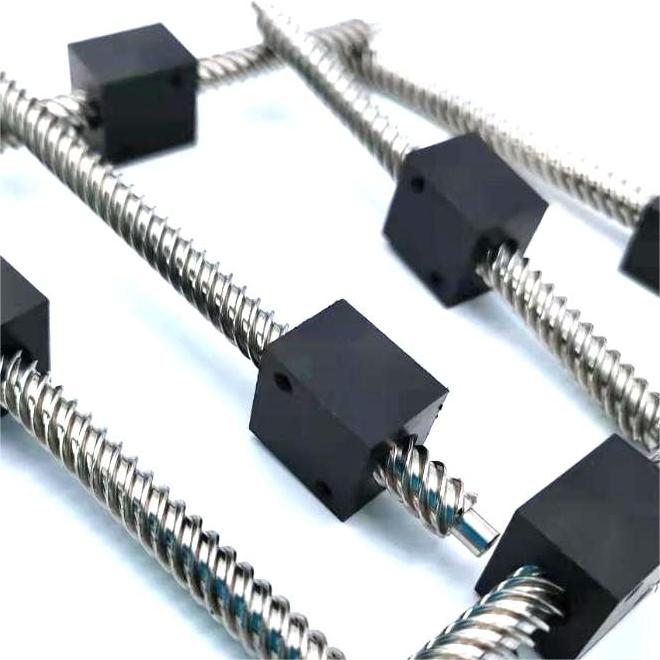

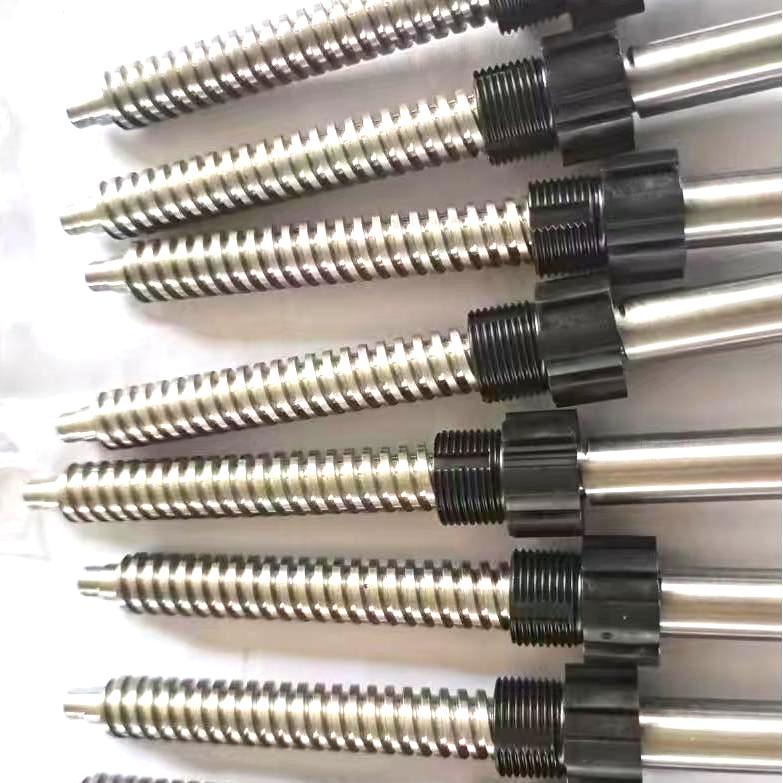

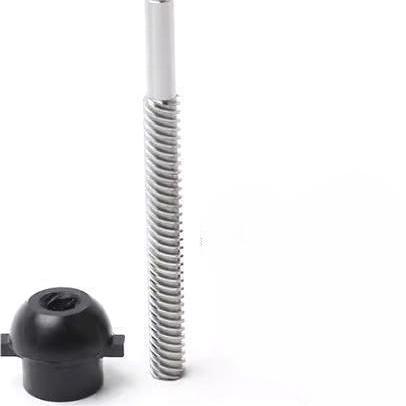

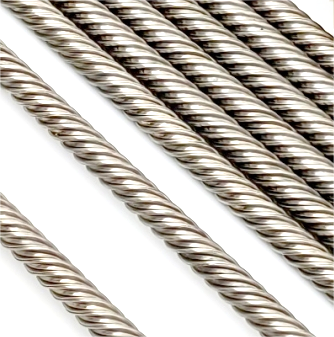

Tr10x30 Dia 10mm Lead 30mm Custom Lead Screw And Nut

The Tr10x30 lead screw and nut feature an exceptionally large 30mm lead,enabling rapid linear motion while maintaining smooth operation and low noise levels.Constructed from durable,wear-resistant materials,it resists corrosion and extends service life in challenging environments.Customizable in dimensions,materials,coatings,and thread configurations.

Diameter	10mm
Lead	30mm
Pitch	5mm
Number of starts	6
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316

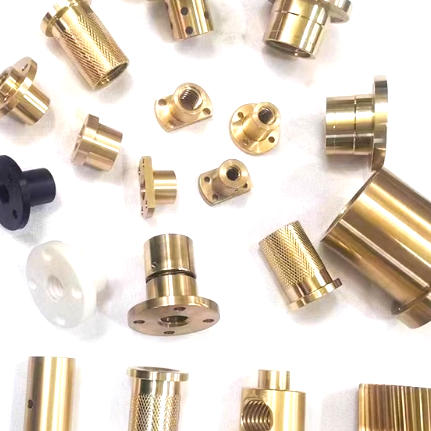

Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.
