Tr10x6

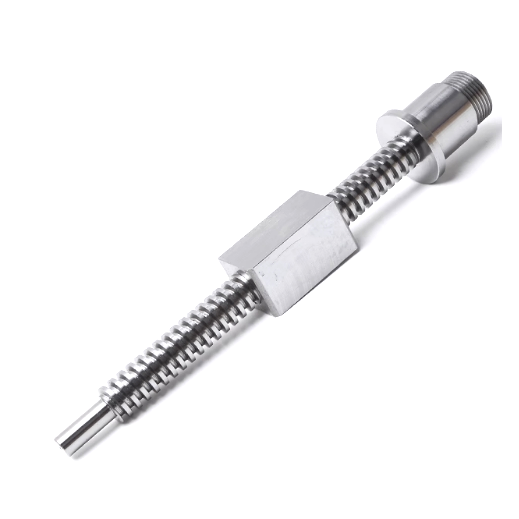

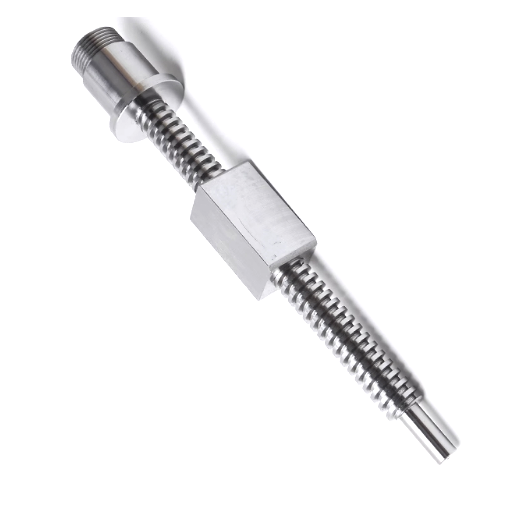

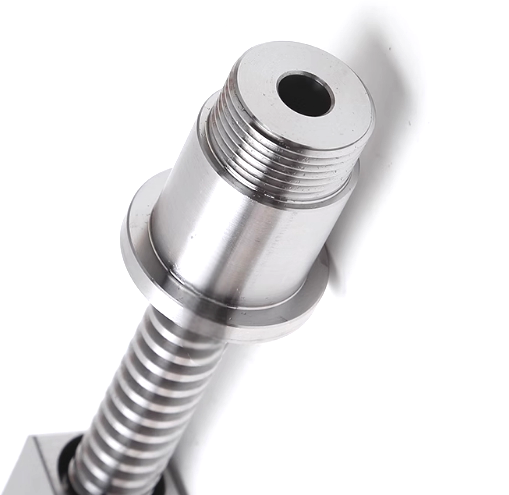

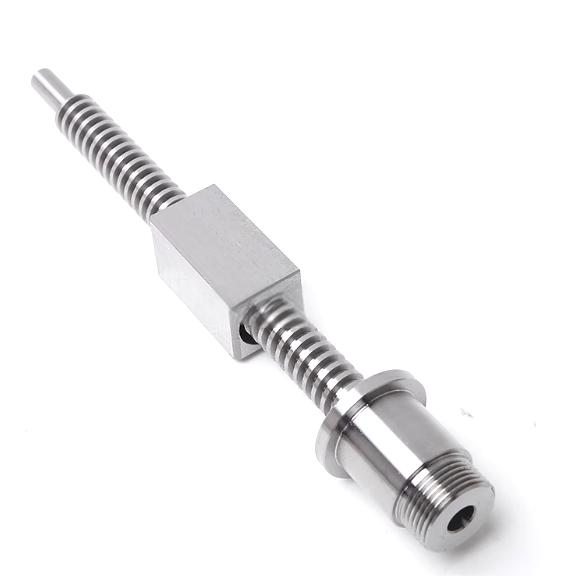

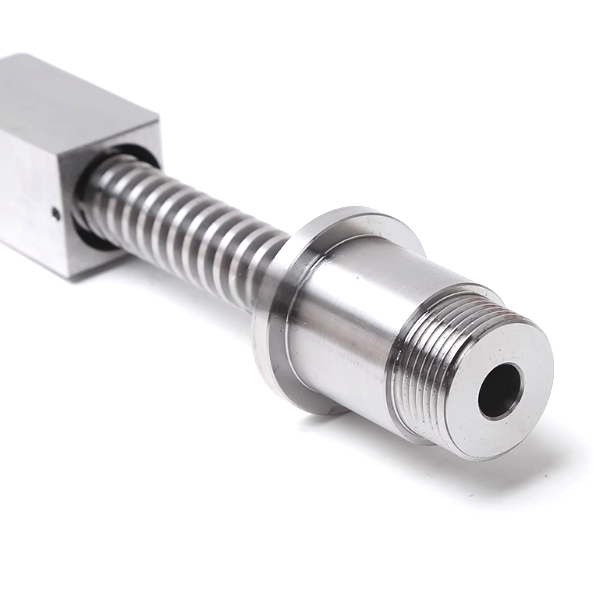

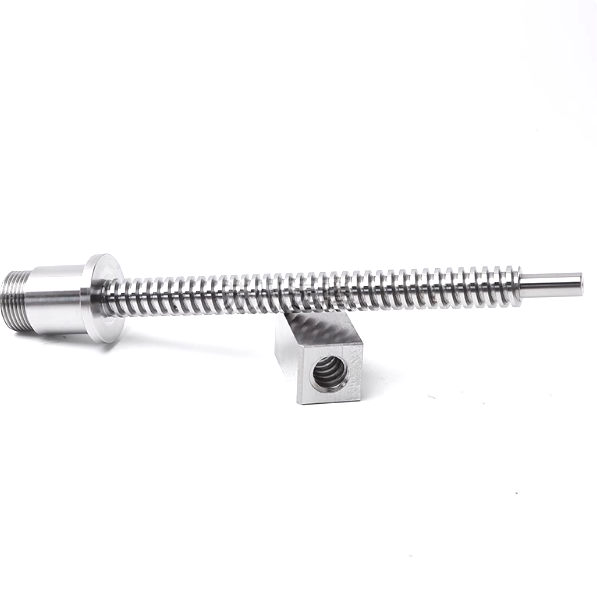

Tr10x6 Precision Trapezoidal Lead Screws & Nuts
This model adopts standard trapezoidal thread structure,Tr10x6 lead screw with nominal diameter of 10mm and lead of 6mm,which has excellent repetitive positioning accuracy and stable load transfer capability.
Diamter | 10mm |
Lead | 6mm |
Pitch | 3mm |
| Number of starts | 2 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | According to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
The 10x6 screw rod and nut support customized service,customers can choose different materials,surface treatment processes and special size specifications according to application requirements.
Contact our sales to customize your trapezoid leadscrew and nut!
