Tr10x8 Cold Rolled Custom Trapezoidal Screw And Nut

T10x8 screw & nut will be customized according to your requirements and drawing.

MOQ: 1pc

Lead time: 12~14days


Availability:



Inquire Add to Basket

Product Description

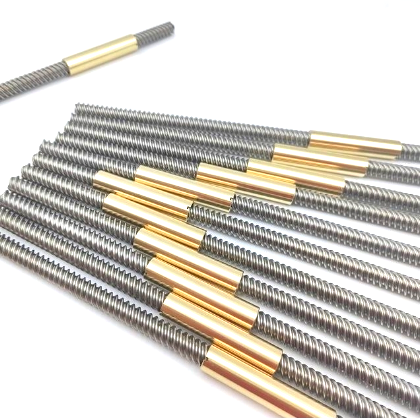

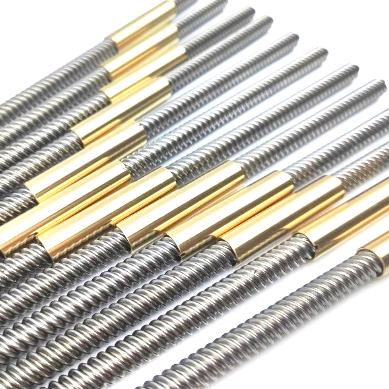

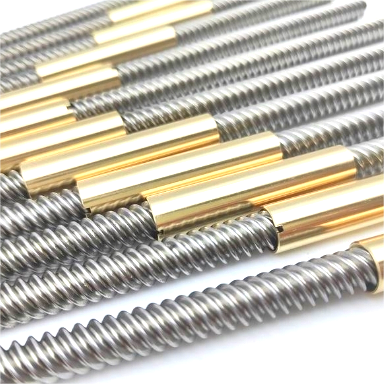

Tr10x8 Cold Rolled Custom Trapezoidal Screw And Nut

This screw has a diameter of 10mm and a lead of 8mm.It is manufactured based on the cold rolling process,and the material density and surface finish are improved through precision rolling,with high strength and low friction characteristics.

Diamter	10mm
Lead	8mm
Pitch	2mm
Number of starts	4
Screw shaft end machining and length	According to your requirement or drawing

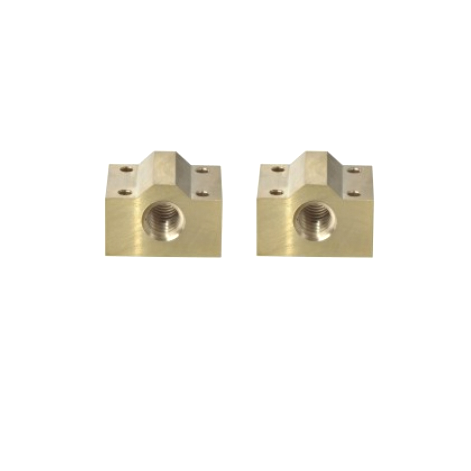

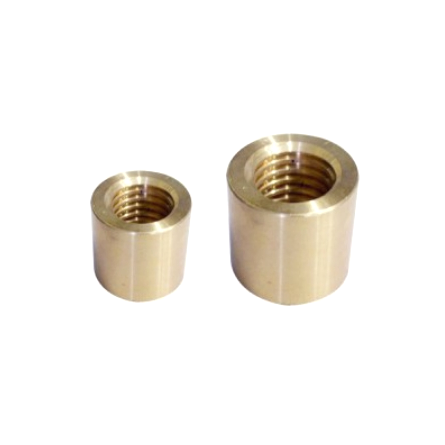

Nut shape and dimension	According to your needs
Thread Direction	Right hand thread/left hand thread/right and left hand thread
Screw material	S45C/ SS303/SS304/SS316
Nut material	Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C
Popular surface coatings	Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating.

The trapezoidal thread tooth shape is optimized and the contact surface is uniform,which can stably carry medium and high loads and reduce axial movement.The shape and size of the T10x8 screw and nut can be customized as needed.
