Available Screw Materials:S45C,SS303,SS304,SS316

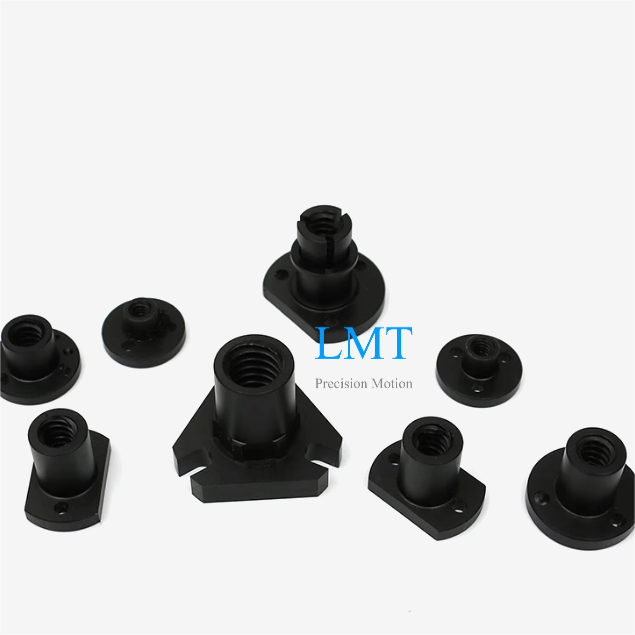

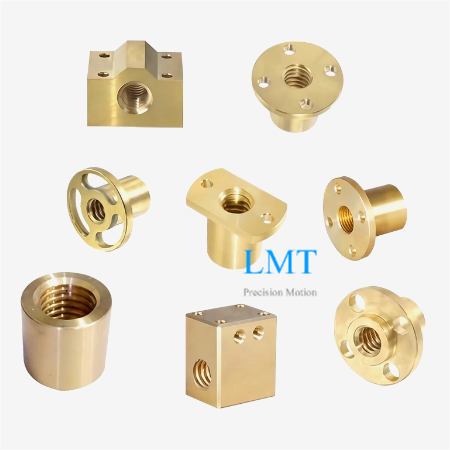

Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:T12x8 Lead screw and nut will be produced according to your requirements or drawings

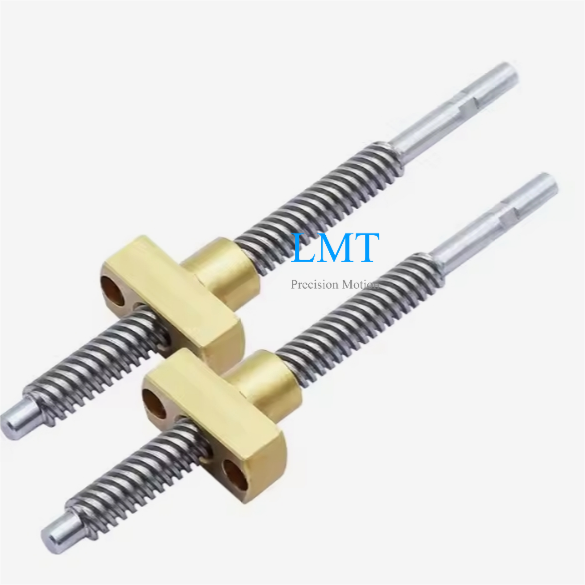

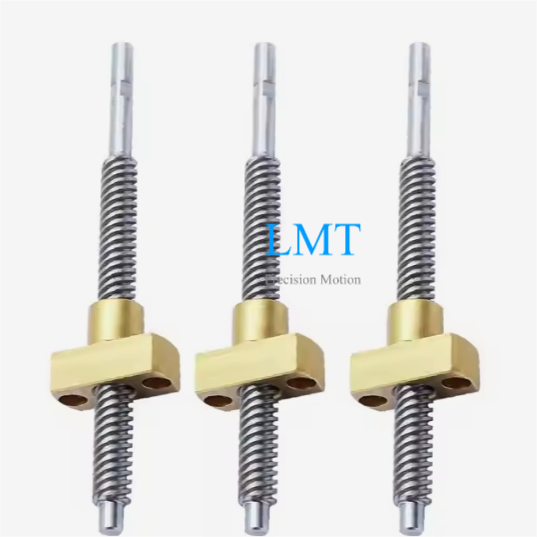

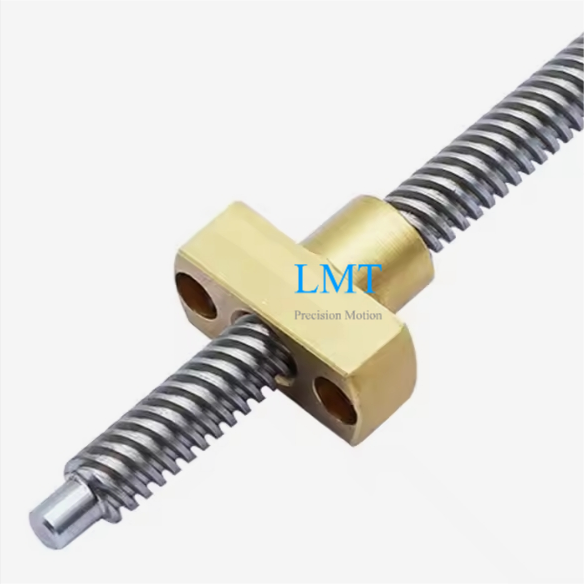

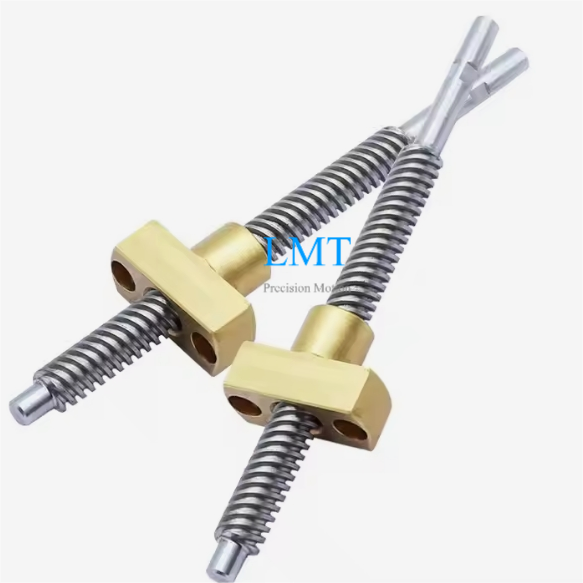

Tr12x8 Diameter 12mm Lead 8mm Rolled Lead Screw with Flange Nut
The lead screw diameter is 12mm,lead is 8mm.Delivers rapid 8mm linear travel per revolution for high-efficiency motion.Precision cold-rolled trapezoidal threads provide a perfect surface finish for ultra-smooth operation.The flange nut ensures easy installation,zero slippage,and near-silent performance with minimal friction.
Specification:
Diameter | 12mm |
Lead | 8mm |
Pitch | 2mm |
| Number of starts | 4 |
Thread direction | RH/LH/RL |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Tr12x8 Lead Screw and Nut Advantages:
Cost-effective:15% cost savings.
Fast Delivery:Within 12 days.
Customized Service:The T12x8 lead screw and nut will be manufactured according to your requirements.
Cold Rolled Manufacturing: Superior surface finish ensures ultra-smooth operation and minimal friction.
