Available Screw Materials:S45C,SS303,SS304,SS316
Available Nut Materials:Brass,Bronze,POM,PEEK,Nylon,S45C,SS304
Customized Service:ACME screws and nuts will be custom-produced according to your requirements or drawings

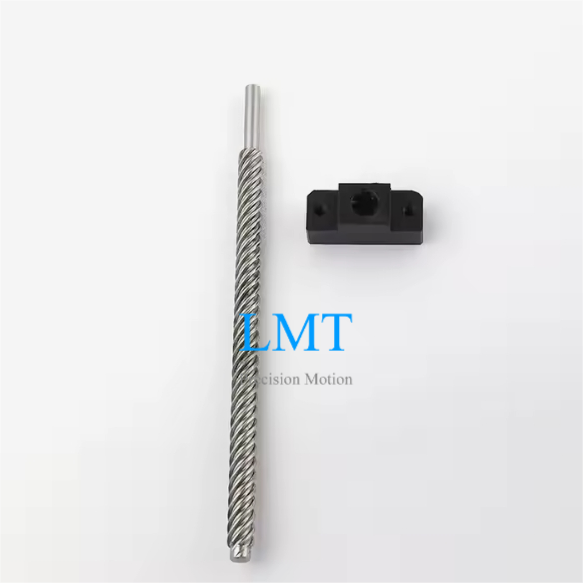

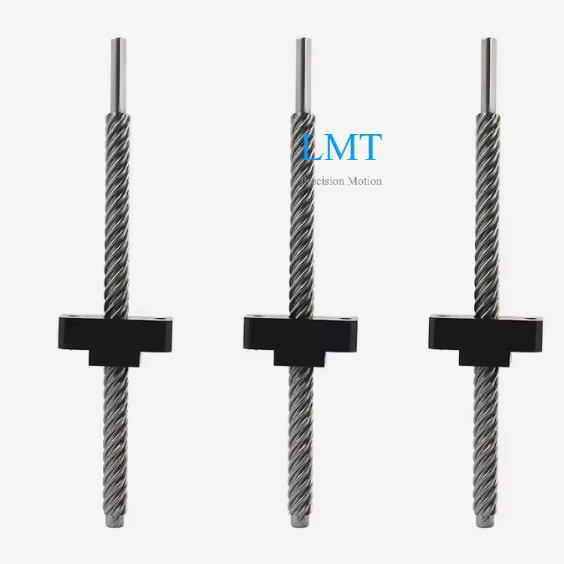

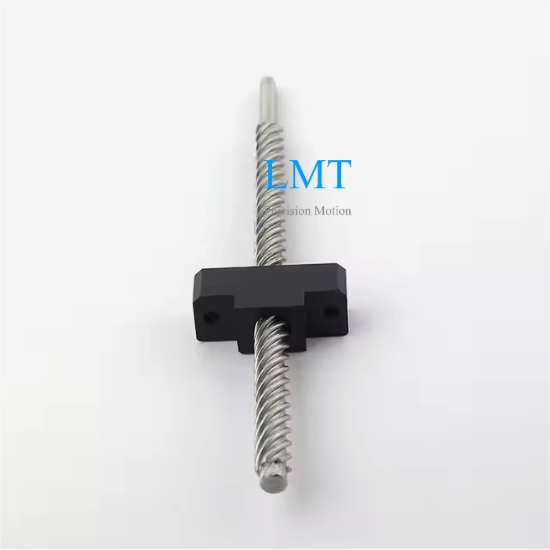

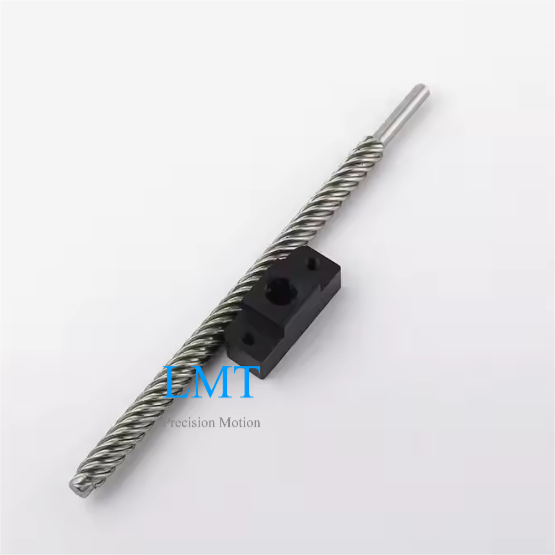

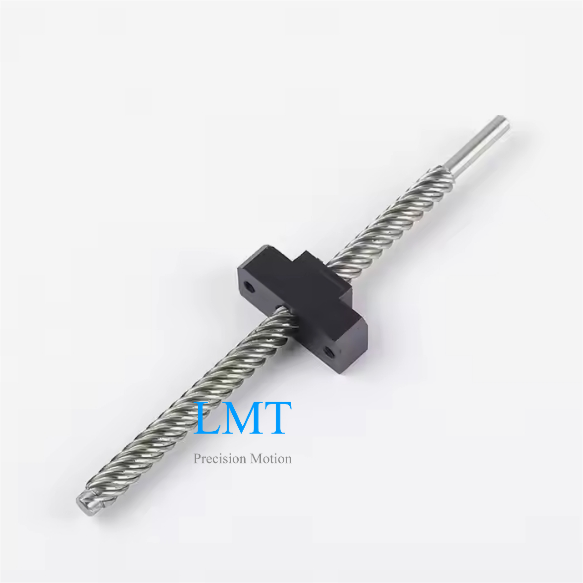

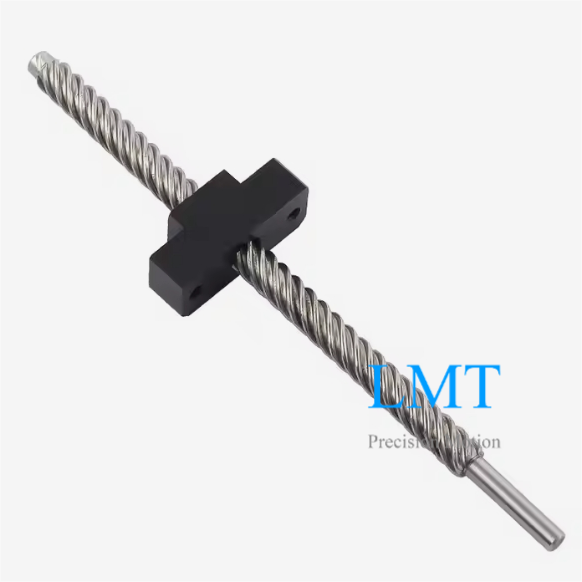

9.525×12.7 Dia 9.525mm Lead 12.7mm Rolled ACME Screw with POM Nut
Maximize speed & efficiency with this cold-rolled 9.525mm (3/8") ACME screw featuring a large 12.7mm (1/2") lead.The precision cold-rolling process delivers ultra-smooth operation,exceptional surface finish,and quiet performance.Paired with a durable POM nut,this assembly achieves true maintenance-free operation:ultra-low friction,minimal noise,and long-lasting reliability without lubrication.
Diameter | 9.525mm |
Lead | 12.7mm |
| Pitch | 2.116mm |
| Number of starts | 6 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread direction | Right hand/left hand/bidirectional |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
Advantages of 9.525x12.7 ACME Lead Screw and Nut:
Cost-Effective:20% cost savings.
Lead Time: Within 12 days.
Customized Service:Lead screws and nuts will be produced according to your requirements.Just send the requirements or drawings.
Rolled Manufacturing Process:Cold-rolled threads create superior surface finish,minimizing friction and improving efficiency.
9.525x12.7 ACME Screw Ideal Applications:
Ideal for high-speed automation,packaging,and repetitive motion systems demanding clean,quiet,and hassle-free linear movement.Get your high-performance 9.525x12.7 screw & nut solution now!
