Tr8x16

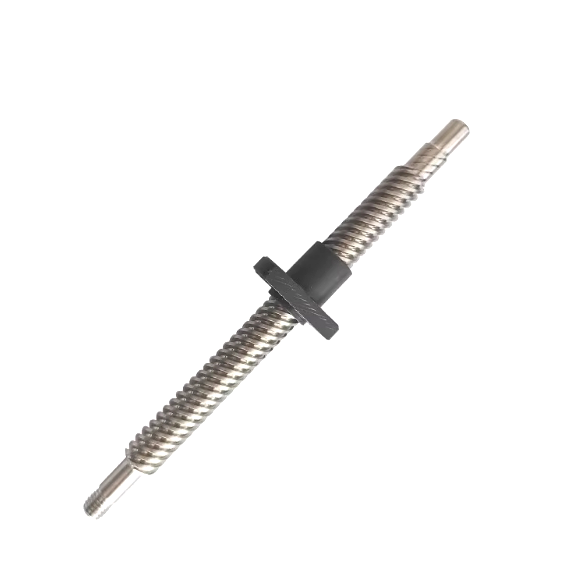

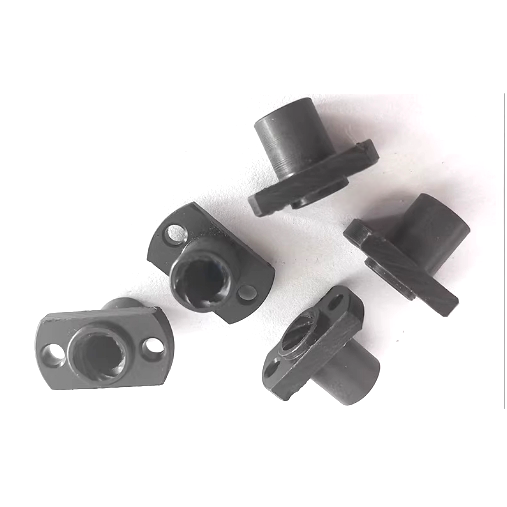

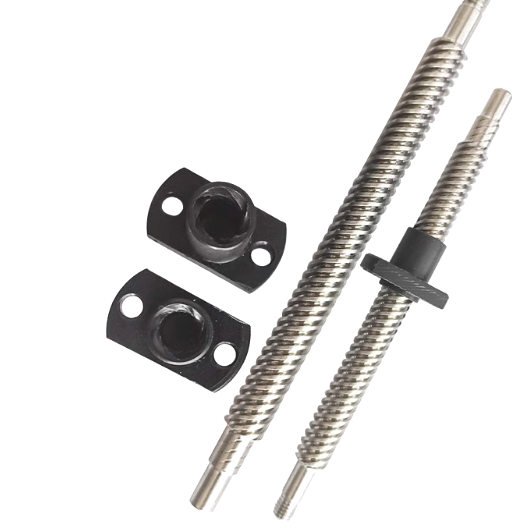

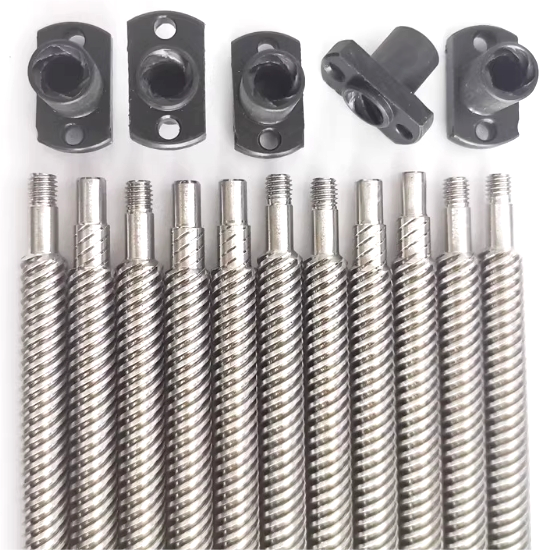

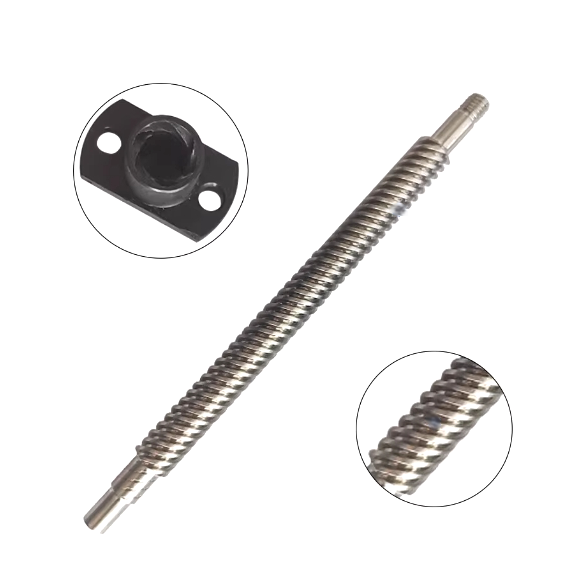

Tr8x16 Stainless Steel Trapezoidal Lead Screw with Nut
8x16 stainless steel trapezoidal lead screw and nut is a component designed for precision linear transmission.It adopts a trapezoidal thread structure(Tr stands for Trapezoidal Thread).The "8x16" in the model number represents diameter of 8mm and a lead of 16mm.The lead screw is made of stainless steel and is suitable for corrosion-resistant,high-load and long-life applications.
Diamter | 8mm |
Lead | 16mm |
Pitch | 2mm |
Number of starts | 8 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand thread/left hand thread/right and left hand thread |
Screw material | S45C/ SS303/SS304/SS316 |
Nut material | Brass/Bronze/POM/PEEK/Nylon/Stainless steel/S45C |
Popular surface coatings | Teflon coating/nickel plated/tungsten disulfide/black chorme plated/molybdenum disulfide/DLC coating. |
We do not have standard T8x16 lead screws and nuts in stock.Lead screws and nuts will be custom-produced according to the requirements of your application.
Contact our sales to customize your trapezoid screw and nut!
