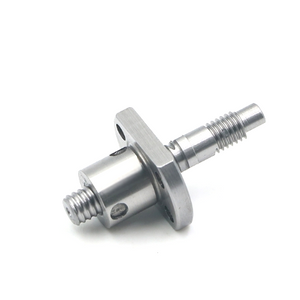

0401 Diameter 4mm Pitch 1mm Rolled Ball Screw

1202 Diameter 12mm Pitch 2mm Rolled Ball Screw

This product shows the models we can produce.

Ball screw length,screw shaft end machining,screw surface coating,nut shape,nut dimension will be customized according to your requirements or drawing.

Customized product MOQ: 1pc

Customized product lead time:10~ 15days

Model:
1202


Availability:



Inquire Add to Basket

Product Description

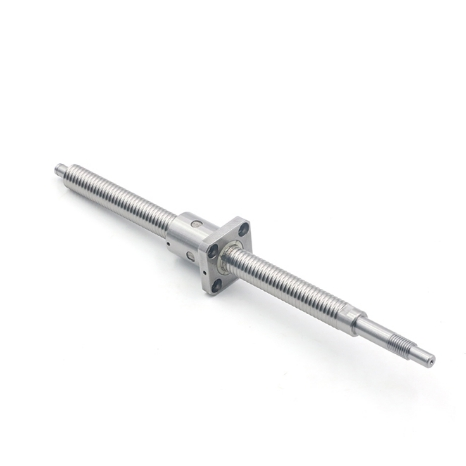

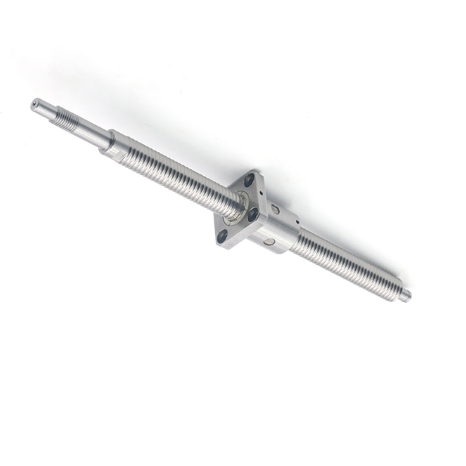

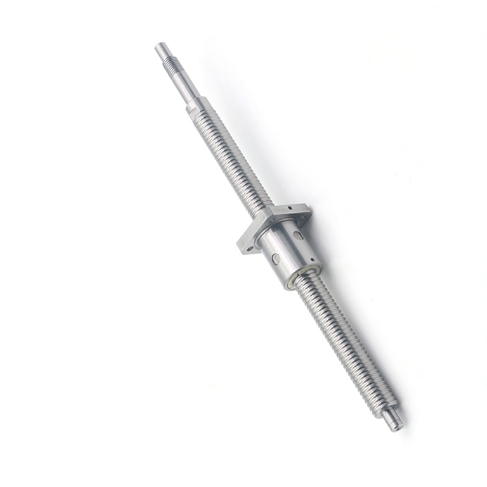

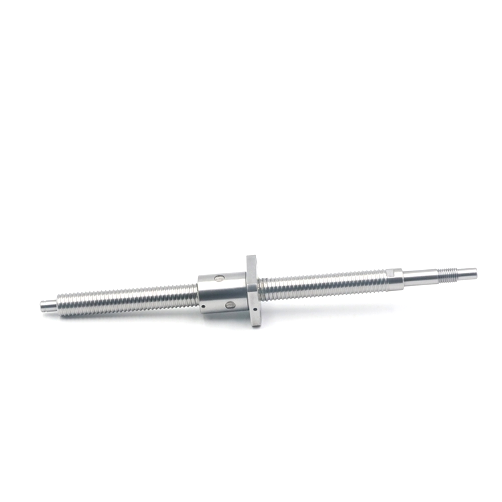

1202 Diameter 12mm Pitch 2mm Rolled Ball Screw

This mini rolled ball screw diameter is 12mm,lead and pitch 2mm,the ballscrew shaft end and nut dimensions will be produced according to your requirements.

Diamter	12mm
Lead	2mm
Pitch	2mm
Accuracy grade	C7
Screw shaft end machining and length	According to your requirement or drawing
Nut shape and dimension	Be customized according to your needs
Thread Direction	Right hand/left hand/bi-directional
Material	GCr15/stainless steel
Popular surface coatings	Nickel plated/Black chorme plated/Molybdenum disulfide/DLC coating.
