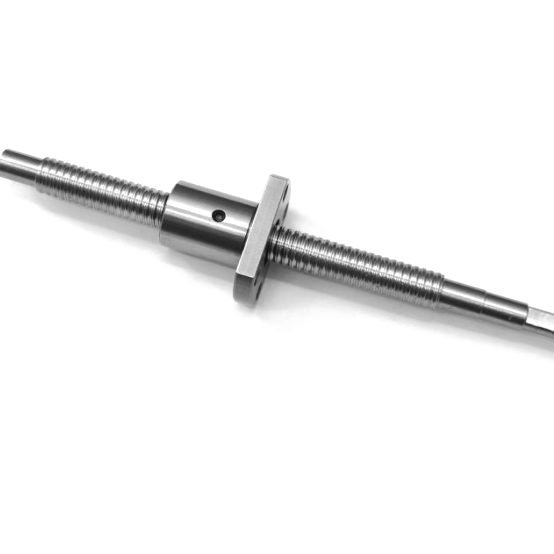

0801 Diameter 8mm Ball Screw with Flange Nut

  • Model Number: Diameter 8mm,lead 1mm,pitch 1mm
  • Lead Time and MOQ: Lead time 15~25days,MOQ 1 pc
  • Available Materials:Bearing steel(GCr15),stainless steel(9Cr18)

  • Optional Accuracy Grades:C1, C2, C3, C5,C7

  • Customized Service:Ball screws and ball nuts will be custom-produced according to your requirements or drawings

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

0801 Diameter 8mm Ball Screw with Flange Nut


With an 8mm diameter and 1mm lead/pitch,this 0801 ball screw achieves fine positional accuracy,perfect for applications requiring meticulous movement control.The flange nut simplifies installation,reduces assembly time,and ensures even load distribution for enhanced stability and longevity.Optimized for tight spaces,it excels in miniaturized systems without compromising performance.


Diameter

8mm

Lead

1mm
Pitch 1mm
Accuracy grade C1/ C2/C3/ C5/C7

Screw shaft end machining and length

According to your requirement or drawing

Nut shape and dimension

Be customized according to your needs

Thread direction

Right hand/left hand/bi-directional

Material

GCr15/stainless steel

Popular surface coatings

Nickel plated/Black chorme plated/Molybdenum disulfide/DLC coating.


0801 Ball Screw Key Advantages:

  • Cost-effective: 30% cost savings.

  • Fast delivery: Rolled ball screw lead time within 7 days,ground ball screw lead time within 25 days.

  • High precision and durability: Engineered for long-lasting performance.

  • Ultra-smooth operation: Low friction and minimal noise.

  • Customizable: Ball screws and nuts tailored to your specifications or drawings.



Ball Nut Dimensions.png

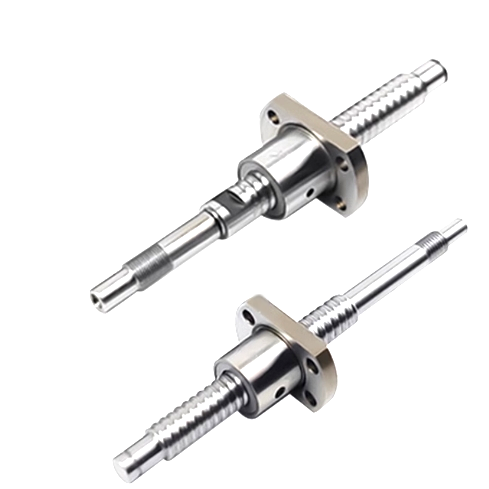

0801 Diameter 8mm Ball Screw with Flanged Nut

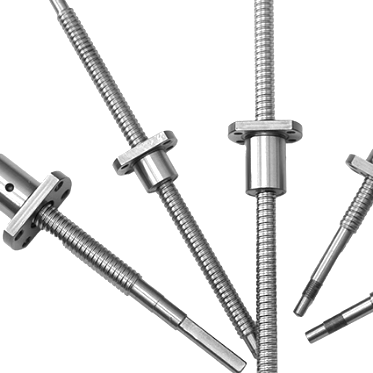

0801 Diameter 8mm Ball Screw with Flange Nuts

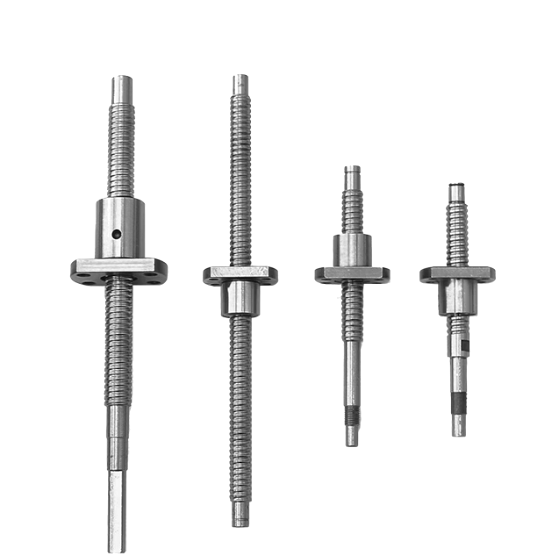

0801 Diameter 8mm Ball Screw with Flange Nut

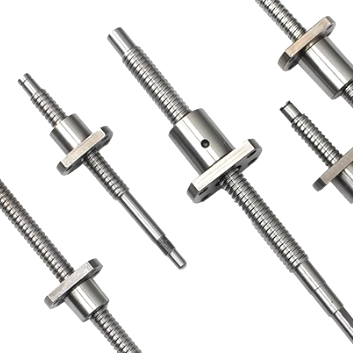

0801 Diameter 8mm lead 1mm Ball Screw with Flange Nut



Contact our sales to customize your ballscrew!
