Available Materials:Bearing steel GCr15,Stainless steel 9Cr18
Customized Service:0801 Ball screw and ball nut will be produced according to your requirements or drawings
0801

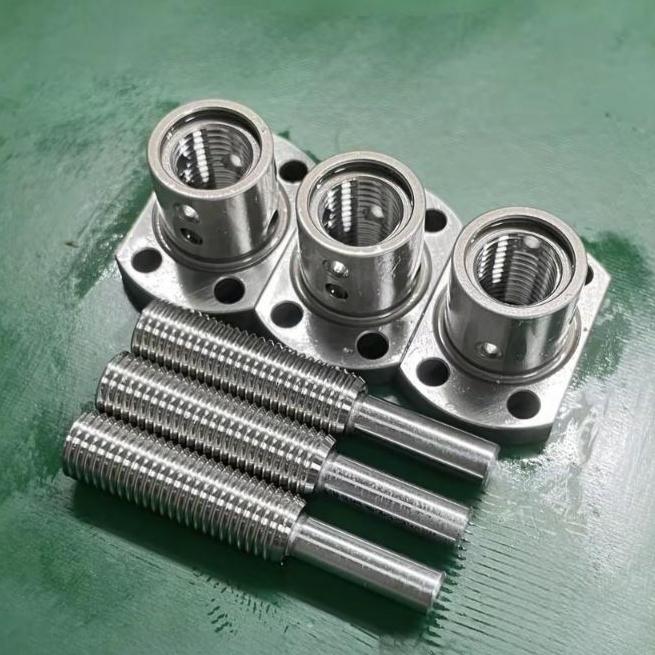

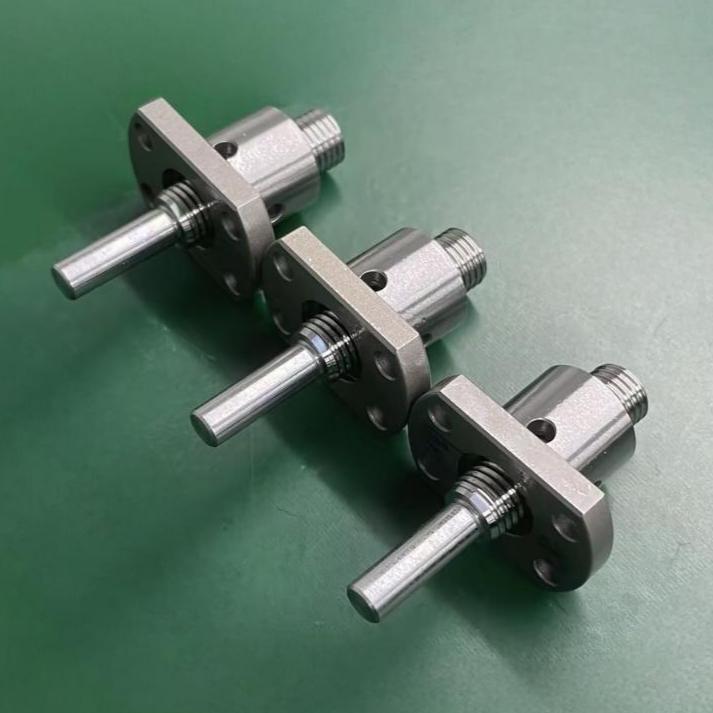

This 0801 miniature precision ball screw assembly is engineered for ultra-high accuracy and efficiency in compact systems,featuring an 8mm diameter and a 1mm lead.Designed to C3/C5/C7 accuracy grades,it offers superior positional repeatability,minimal backlash,and exceptionally smooth motion.The ball screw assembly consists of a bearing steel or stainless steel screw and a matching flange nut with internal ball recirculation,ensuring low friction and long-term reliability.
Ball screw and ball nut can be customized according to your requirements.We support a 1-piece MOQ,provide competitive pricing,and ensure a lead time of 7-25 days.
Diameter | 8mm |
Lead | 1mm |
| Pitch | 1mm |
| Accuracy grade | C3 C5 C7 |
Screw shaft end machining and length | According to your requirement or drawing |
Nut shape and dimension | Be customized according to your needs |
Thread Direction | Right hand/left hand/bi-directional |
Material | GCr15/9Cr18 |
MOQ: 1 pc.
Fast Delivery:7~25 days.
Cost-effective:15% ~40% cost savings.
All ball screws and ball nuts are ROHS and CE compliant.
Material test report,hardness test report,quality inspection report as your require.
Customized Service:The ball screw and ball nut will be manufactured according to your requirements.

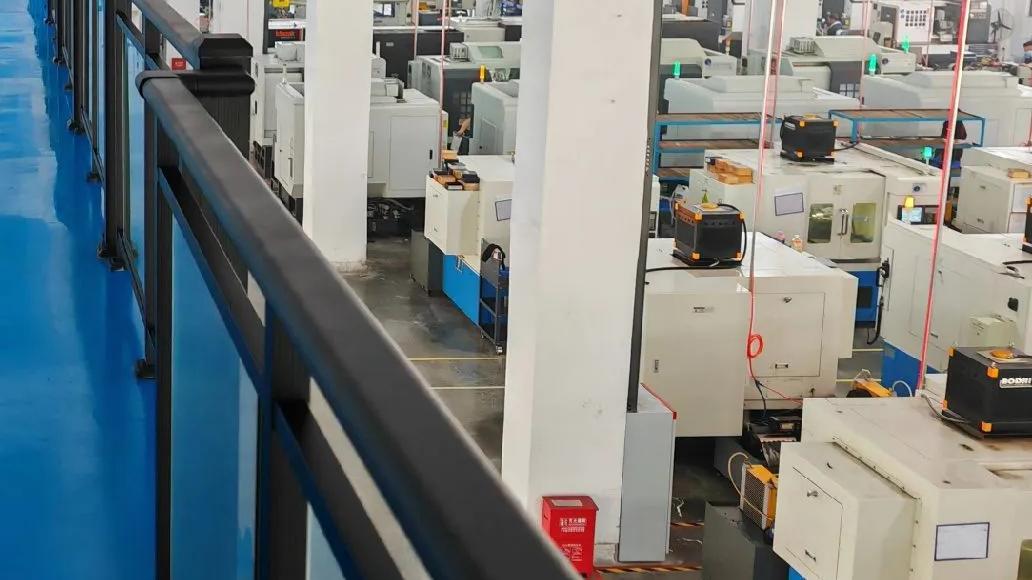

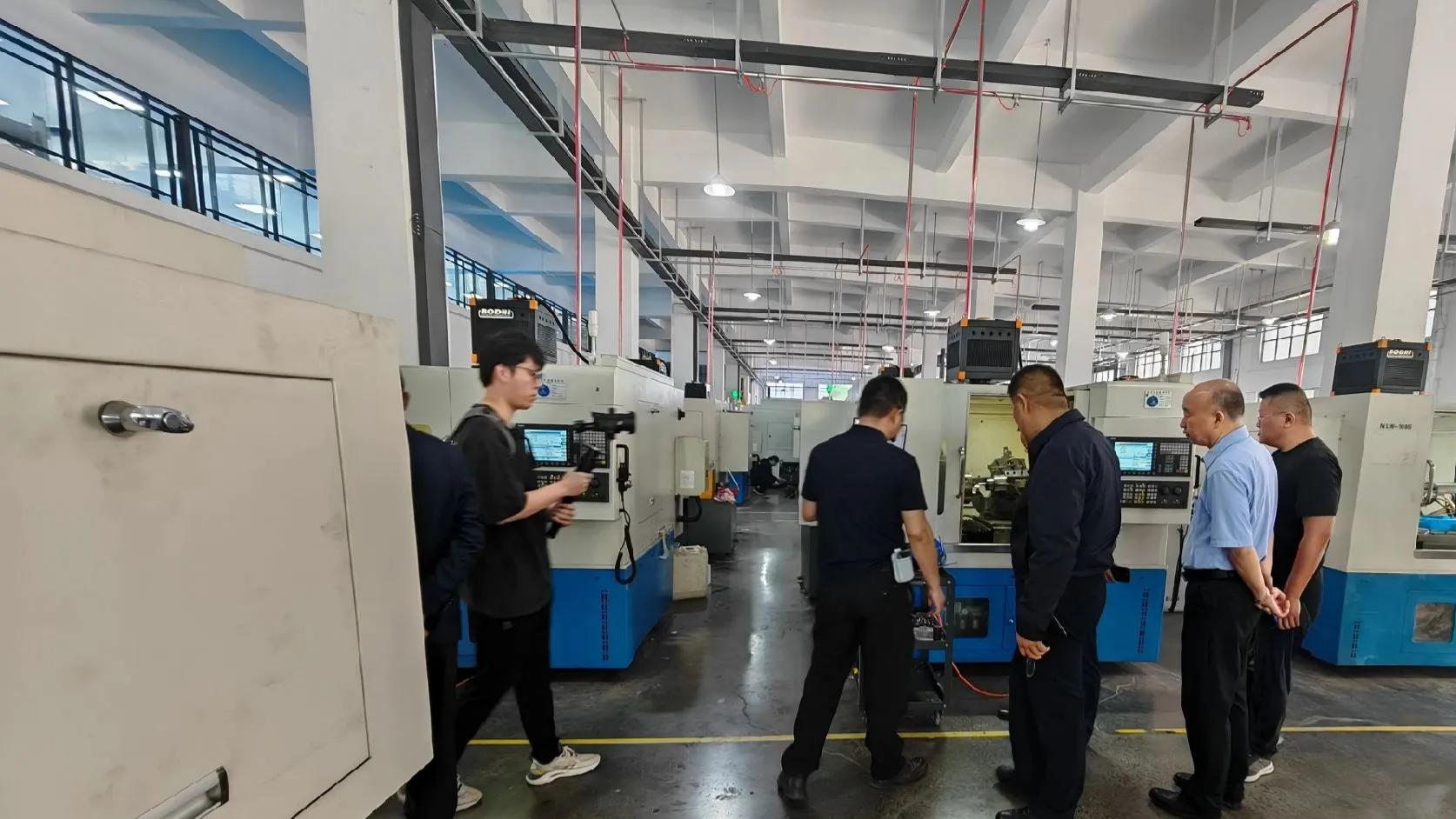

High Quality:With 15 years of mature production experience in ball screws,all products are 100% tested for quality before shipping.
Medical and Laboratory Automation:Integrated into automated liquid handling systems(pipettes),DNA sequencers,sample positioning stages,and small surgical robot arms requiring fine,reliable linear motion.
Optical and Inspection Systems:Utilized for focusing mechanisms,lens positioning,and precise XY movement of cameras or sensors in microscopes,spectrometers,and automated optical inspection (AOI) stations.
Compact Actuators for Aerospace and Defense:Found in small satellite mechanisms(e.g.,antenna deployment,mirror positioning),drone gimbal controls,and miniaturized guidance system actuators where a high power-to-size ratio is essential.
