LMKS25R

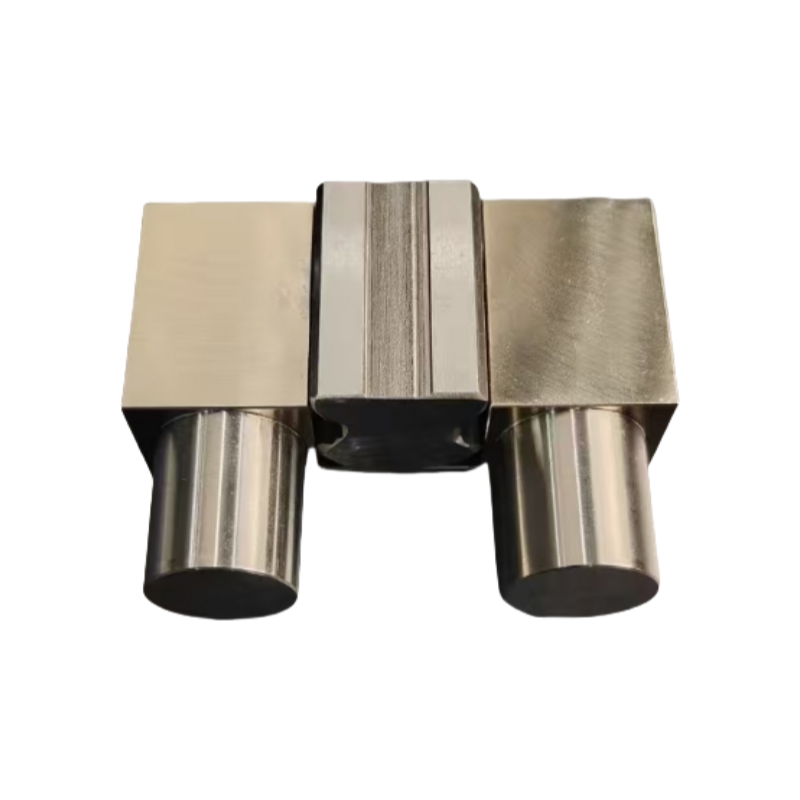

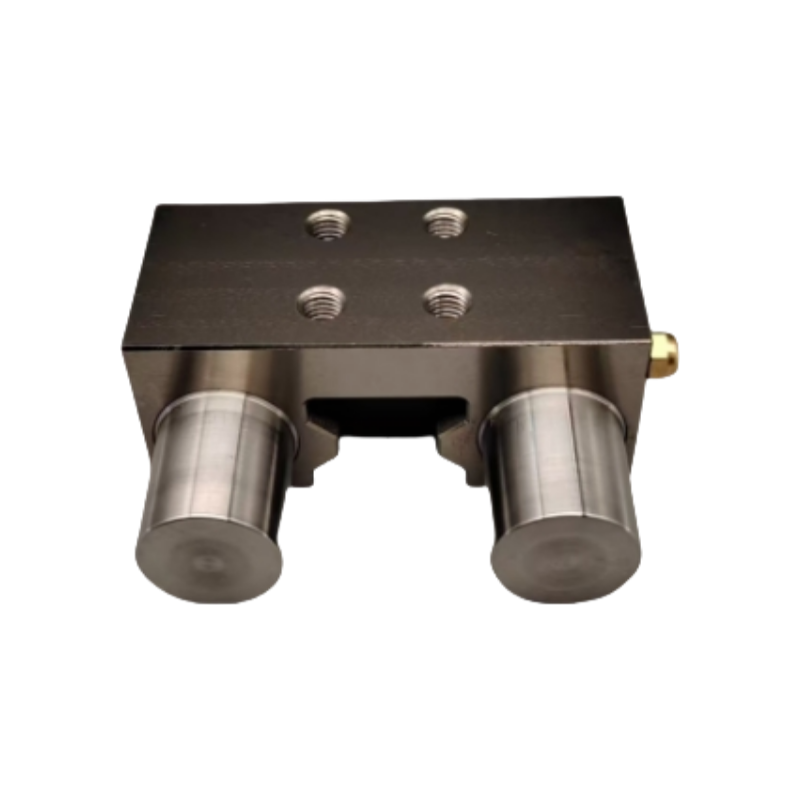

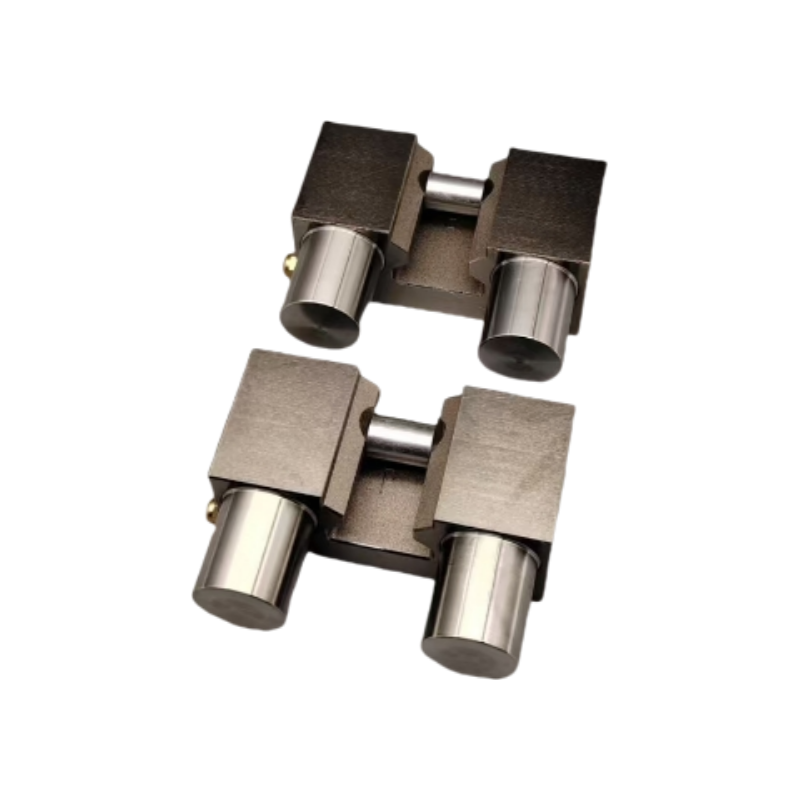

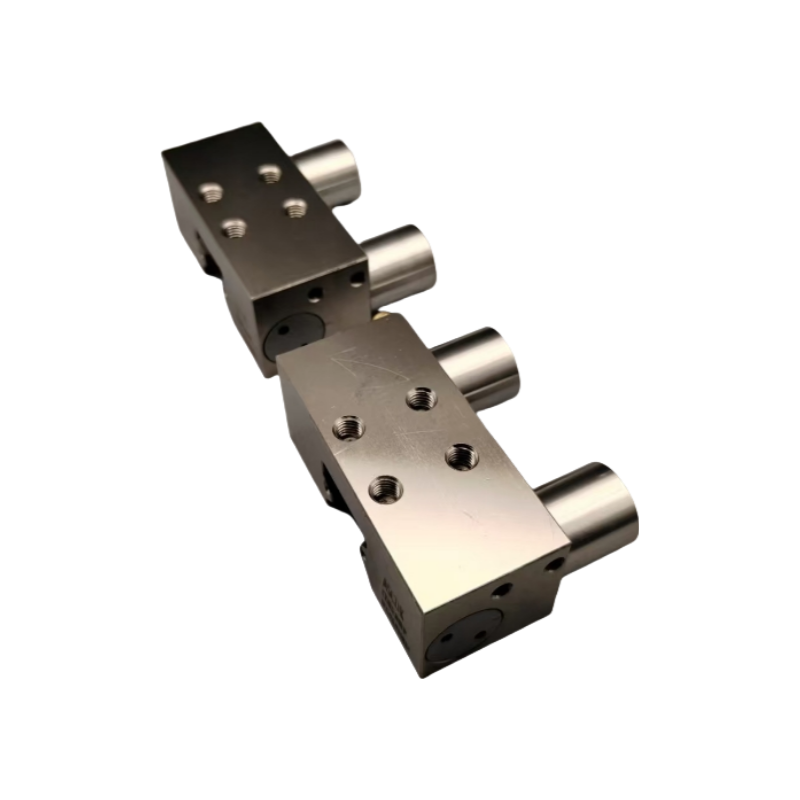

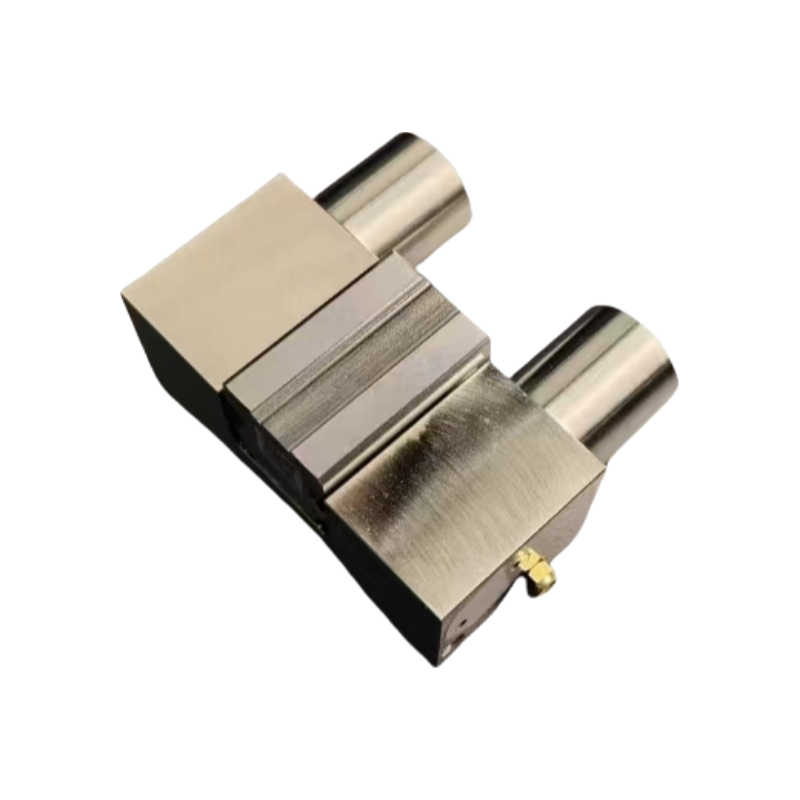

25mm Roller Linear Rail Pneumatic Normally Close Clamp
This guide clamp is used with 25mm roller linear guide. It has high positioning accuracy and is suitable for fixed machining center table.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N(Standard) |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Roller Guide Pneumatic Normally Close Clamp
Contact our sales to get a quote!
