MKS2501A

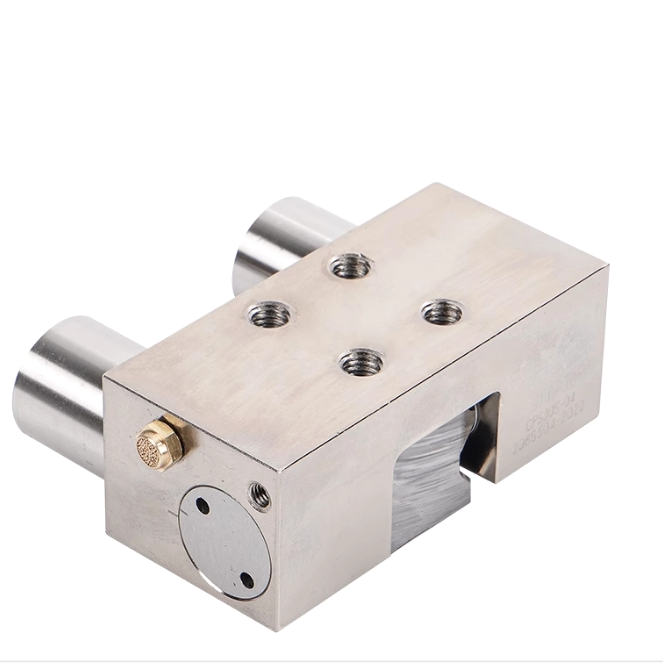

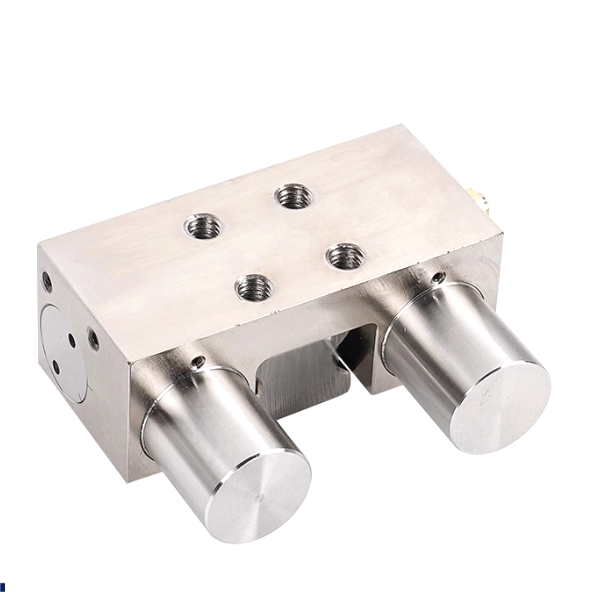

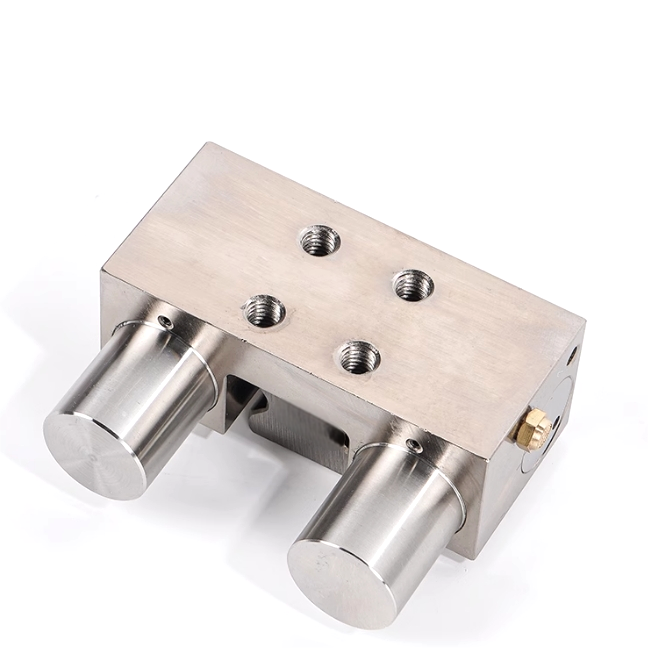

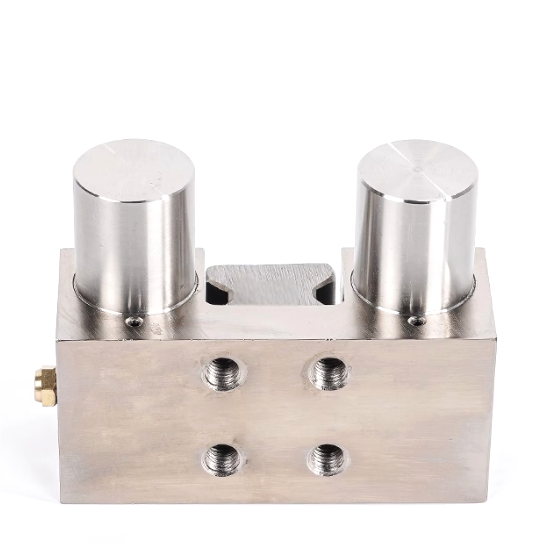

MKS2501A Pneumatic Clamping Element for 25mm Linear Guide
This is a pneumatic normally closed guide clamp for 25mm linear guideways with a corrosion resistant nickel plated coating on the surface and a clamp life of up to 5 million times.
| Clamp Types | Pneumatic |
| Applicable guideway sizes | 25mm |
| Rated holding force(N) | 750/1400N |
| Open air pressure | 0.55/0.4/0.3Mpa |
| Clamping service life | 5 million times |
| Material | Bearing steel with nickel-plated surface coating |
Spacer plate | Available(a spacer plate might have to be ordered as height compensation, depending on the height of the rail carriage) |
| Operating temperature | 0 °~70 °C |
| Applicable guideway brand | HIWIN/THK/PMI/WON/NSK/NB/ABBA and so on |
| 2D and 3D drawing | Available |
Contact our sales to get a quote!

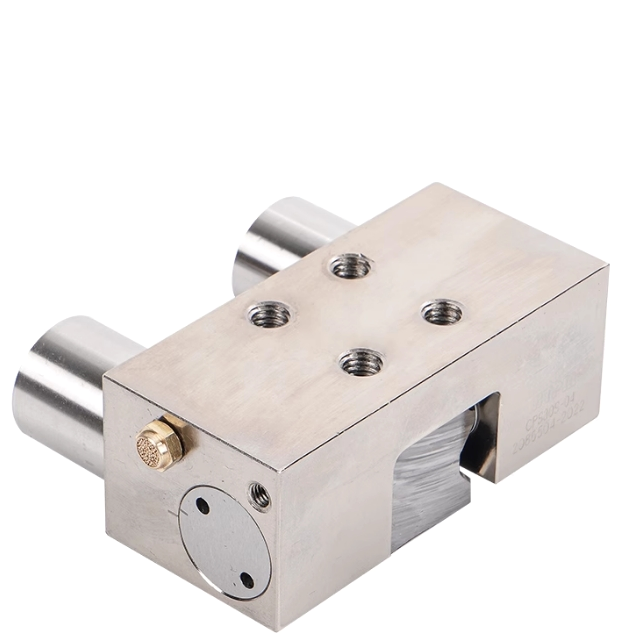

MKS2501A Pneumatic Clamping Element for 25mm Linear Guide
